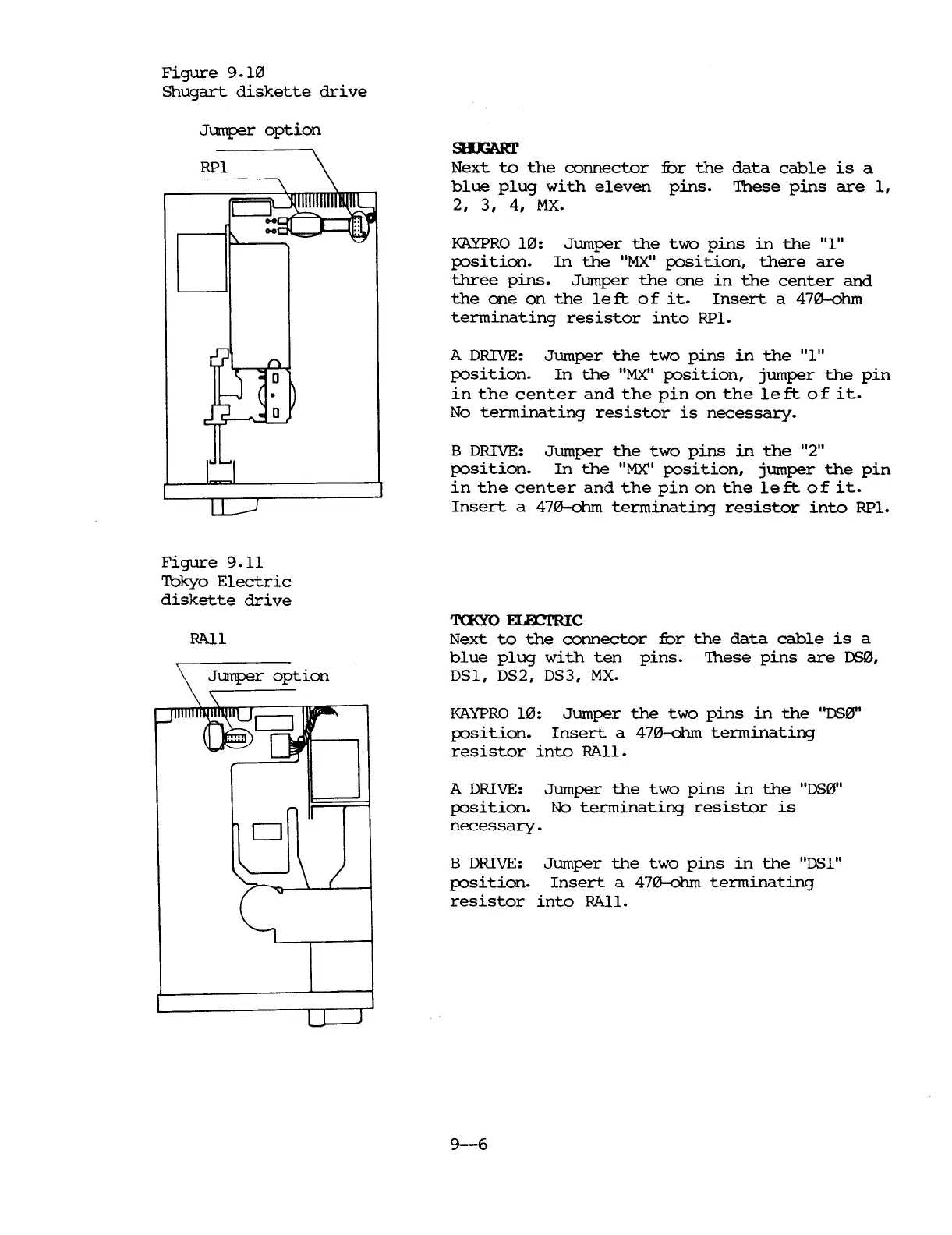

Figure 9.10
Shugart diskette drive
Jumper option
Figure 9.11
Tokyo Electric
diskette drive
RAil
Jumper option
SfI&lOO.'
Next to the connector fur the data cable is a
blue plug with eleven pins. These pins are 1,
2, 3, 4, MX.
KAYFRO 10: Jumper the two pins in the "1"
fOsition. In the "M)(" position, there are
three pins. Jumper the one in the center and
the one on the left. of it. Insert a 47l2J-ohm
terminating resistor into RPl.
A
DRIVE: Jumper the two pins in the "1"
fOsi tion. In the "M)(" fOsi tion, jumper the pin
in the center and the pin on the le ft 0 fit.
No terminating resistor is necessary.
B DRIVE: JumPer the two pins in the "2"
fOsition. In the "M}(" fOsition, jumper the pin
in the center and the pin on the le ft 0 fit.
Insert a 47l2J-ohm terminating resistor into RPl.
TCI<YO~C
Next to the connector fur the data cable is a
blue plug with ten pins. 'Ihese pins are 080,
DS1, DS2, DS3, MX.
KAYFRO 10: JumPer the two pins in the "DS0"
fOsi tion. Insert a 47l2J-ohm terminating
resistor into RAll.
B DRIVE: Jumper the two pins in the "DS1"
fOsition. Insert a 47l2J-ohm terminating
resistor into RAllo
A
DRIVE:
fOsition.
necessary.
Jumper the two pins in the "DSl2J"
t~ terminating resistor is
