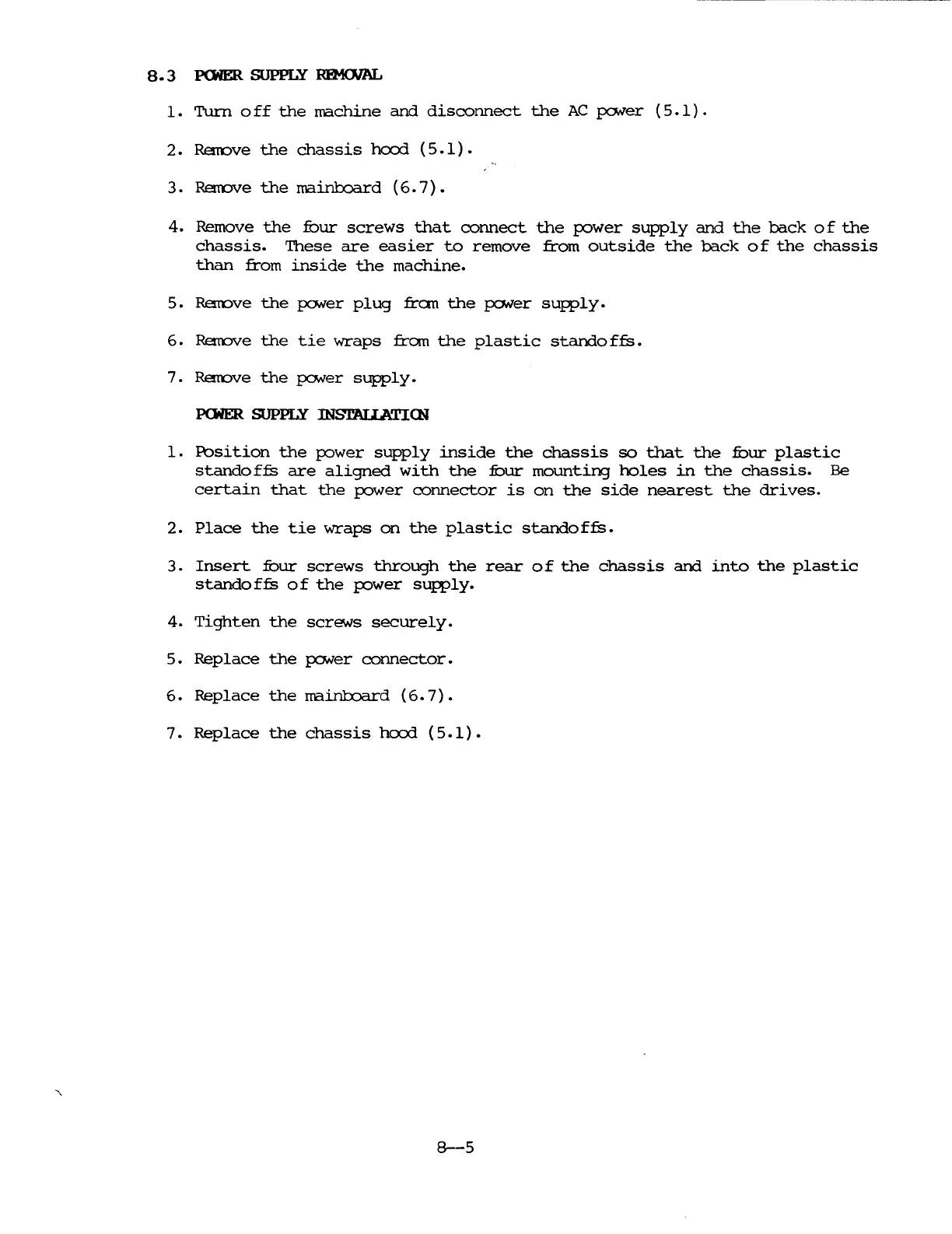

8.3 POiER SUPPLY RPMaTAL
1. Turn 0 ff the machine and disconnect the AC power (5.1).
2. Rarove the chassis hood (5. 1) •
3. Rarove the mainl::oard (6. 7) •
4. Remove the fOur screws that connect the power supply and the back of the
chassis. These are easier to remove from outside the back 0 f the chassis
than from inside the machine.
5. Rarove the power plug fran the power supply.
6. Rarove the tie wraps frem the plastic stando ffs.
7. Rarove the po..,rer supply.
POmR SUPPLY INSTALIATICN
L Fbsition the power supply inside the chassis so that the fOur plastic
standoffs are aligned with the fuur mounting holes in the chassis. Be
certain that the power connector is on the side nearest the drives.
2. Place the tie wraps on the plastic standoffs.
3. Insert fuur screws through the rear 0 f the chassis and into the plastic
standoffs of the power supply.
4. Tighten the screw-s securely.
5. Replace the power connector.
6. Replace the mai.nlx>ard (6. 7) .
7. Replace the chassis hood (5.1).
