Disadvantages:
- Limitation of the number (max. 10, after RS.422 specication)
- No guarantee of an EMC conform installation (adapter required for distribution) therefore, the second
variant is preferable:
Therefore the second variant is preferable:

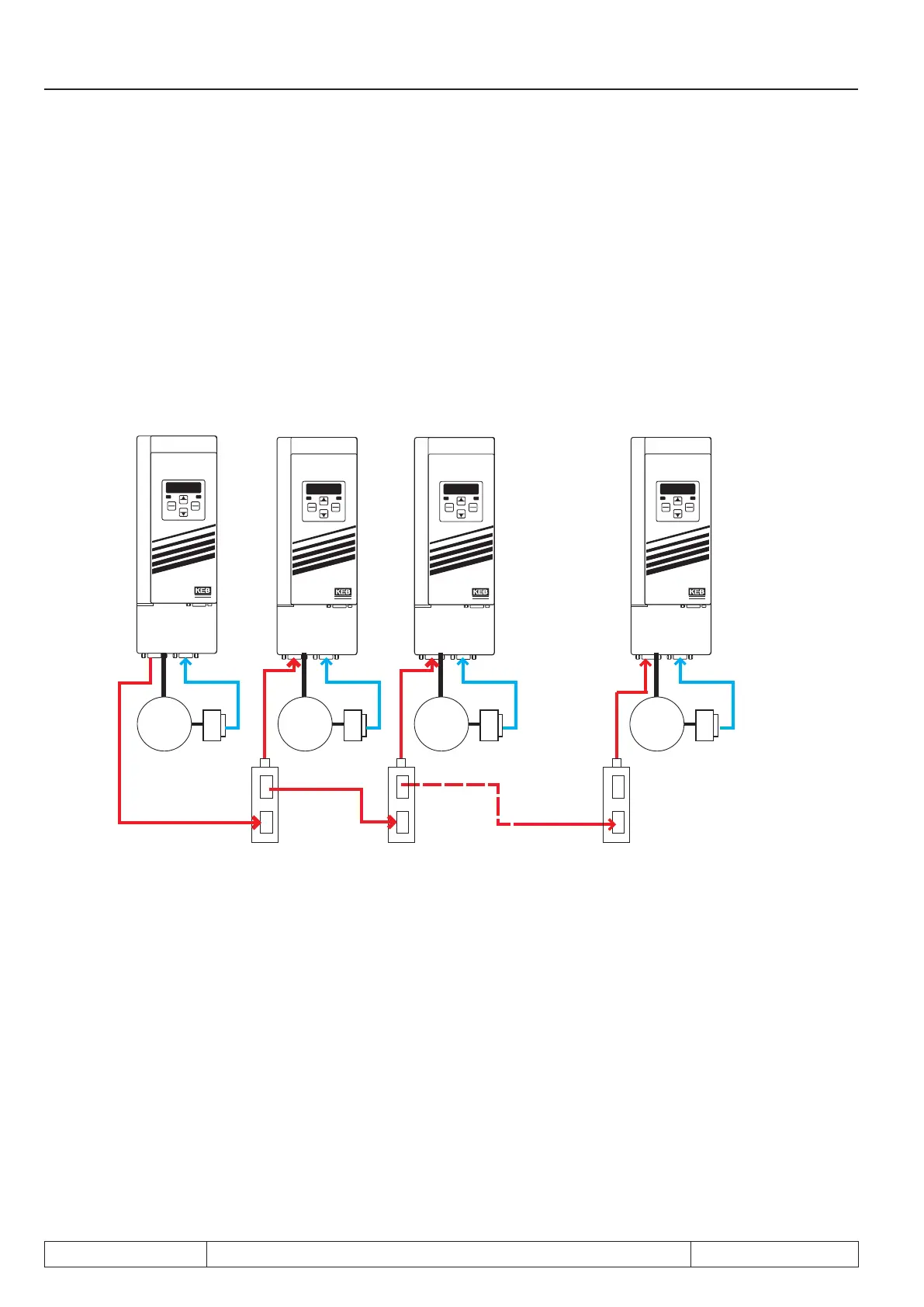

- one MS-Repeater before each slave drive
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNI K
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNI K
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNI K
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNI K
X3B X3A X3B X3BX3A X3A
3
~
3
~
3
~
3
~
speed
closed-loop
master drive
speed
closed-loop
slave drive1
speed
closed-loop
slave drive 2
speed
closed-loop
slave drive X
MS-Repeater MS-RepeaterMS-Repeater
Ec.20 encoder operating mode = 0 (input + terminating resistor)
at all slave drives
Advantages:
- The incremental signals are processed. Thus, no limitation of the number of the connected slaves
- off-the-shelf cables available that guarantee EMC compliant assembly. Further information on availa-
ble components can be found at wow.keb.de => Service & Downloads
- Error control for processed master signal integrated in repeater
Page 7.12 - 16 COMBIVERT F5-A, -E, -H © KEB, 2012-10
