CP-Parameterdenition
7.16.4 Display norm
The KEB COMBIVERT gives the user the possibility to dene his own norms (e.g. km/h or bottles/min) in the
CP mode. Parameters ud.18...20 are used for conversion, ud.21 for specifying the calculation method, decimal
places as well as the units indicated in KEB COMBIVIS.

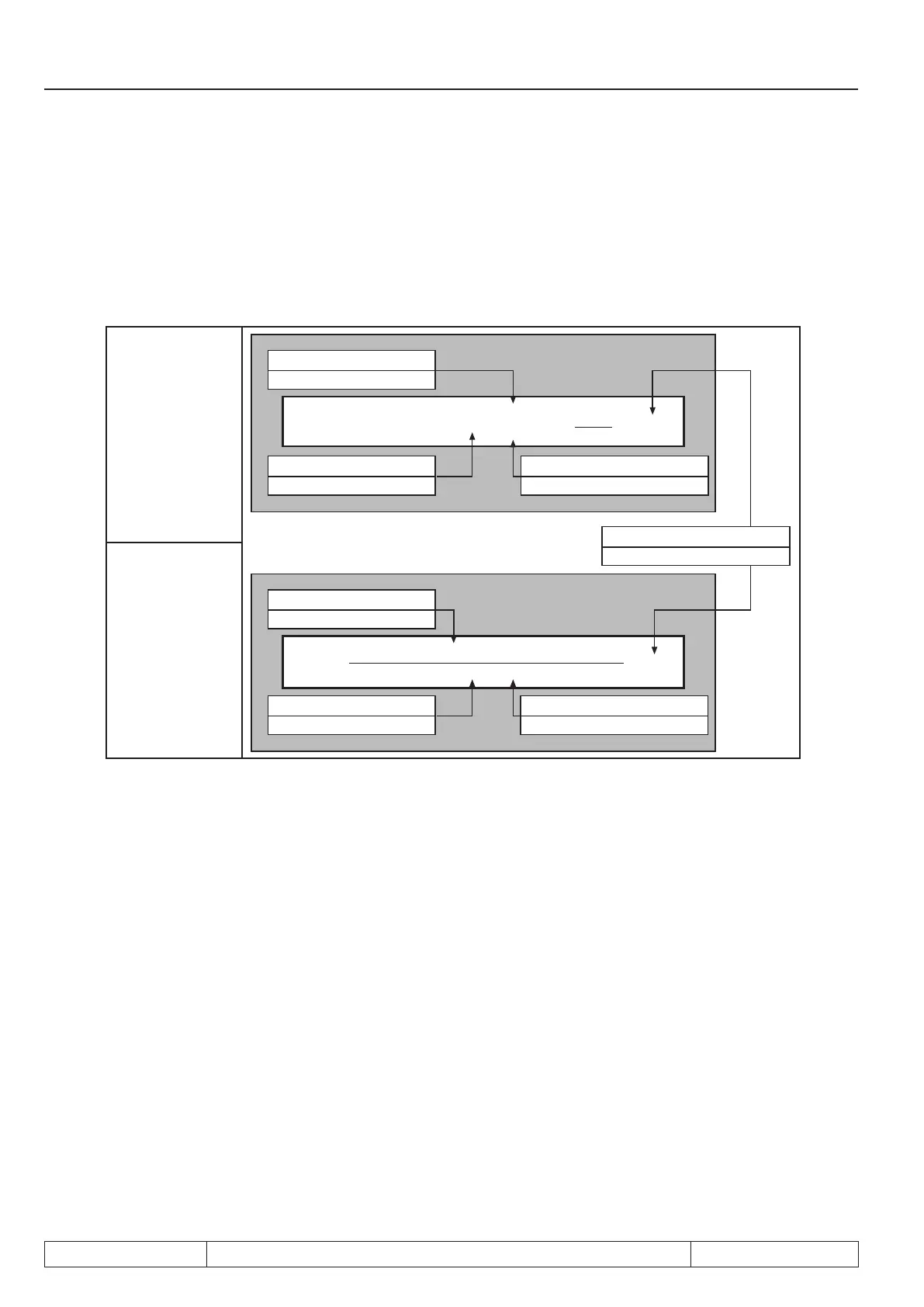

7.16.4 Denition of own standardization
Standard
ud.19 numerator
± 32767
ud.20 offset
± 32767
ud.18 denominator
± 32767
ud.21 display ags
0...1791
CP.xx = (selected parameter + ud.20) x ud.19 x unit
ud.18
ud.19 numerator
± 32767
ud.20 offset
± 32767
ud.18 denominator
± 32767
CP.xx = ud.19 x unit
(selected parameter + ud.20) x ud.18
Inverted
The unstandardized value or the standardized value/resolution is always used for the „selected parameter“ !
ud.18 divisor display norm
Adjusts the divisor in the range of ±32767 (default 1). The parameter is set-programmable.
ud.19 multiplier display norm
Adjusts the multiplier in the range of ±32767 (default 1). The parameter is set-programmable.
ud.20 offset display norm
Adjusts the offset in the range of ±32767 (default 0). The parameter is set-programmable.
ud.21 control display norm
