Page 10.1 - 8 COMBIVERT F5-A, -E, -H © KEB, 2012-10
Network components
10.1.8 Sercos operator 00.F5.060-6000
The herein described unit is a plugable operator with SERCOS interface for the frequency inverter or servo
KEB COMBIVERT F5. As far as possible the hard and software were developed taking the DIN/EN 61491 into
consideration. The voltage supply occurs via the inverter, for an independent supply it can also be fed in exter-
nally over the control terminal strip of the inverter. The SERCOS interface is designed as optical bre ring for
plastic (POF) or bre glas cable (HCS) with F-SMA plugs. The SERCOS service channel as well as cyclic data
transfer are available. Operation via integrated display/keyboard and an additional serial interface for diagno-
sis/parameterization (KEB COMBIVIS) is possible parallel to SERCOS operation (depending on the operation
mode it may be disabled). SERCOS operation parameters like slave address, transmitting power etc. can be
adjusted via the keyboard.

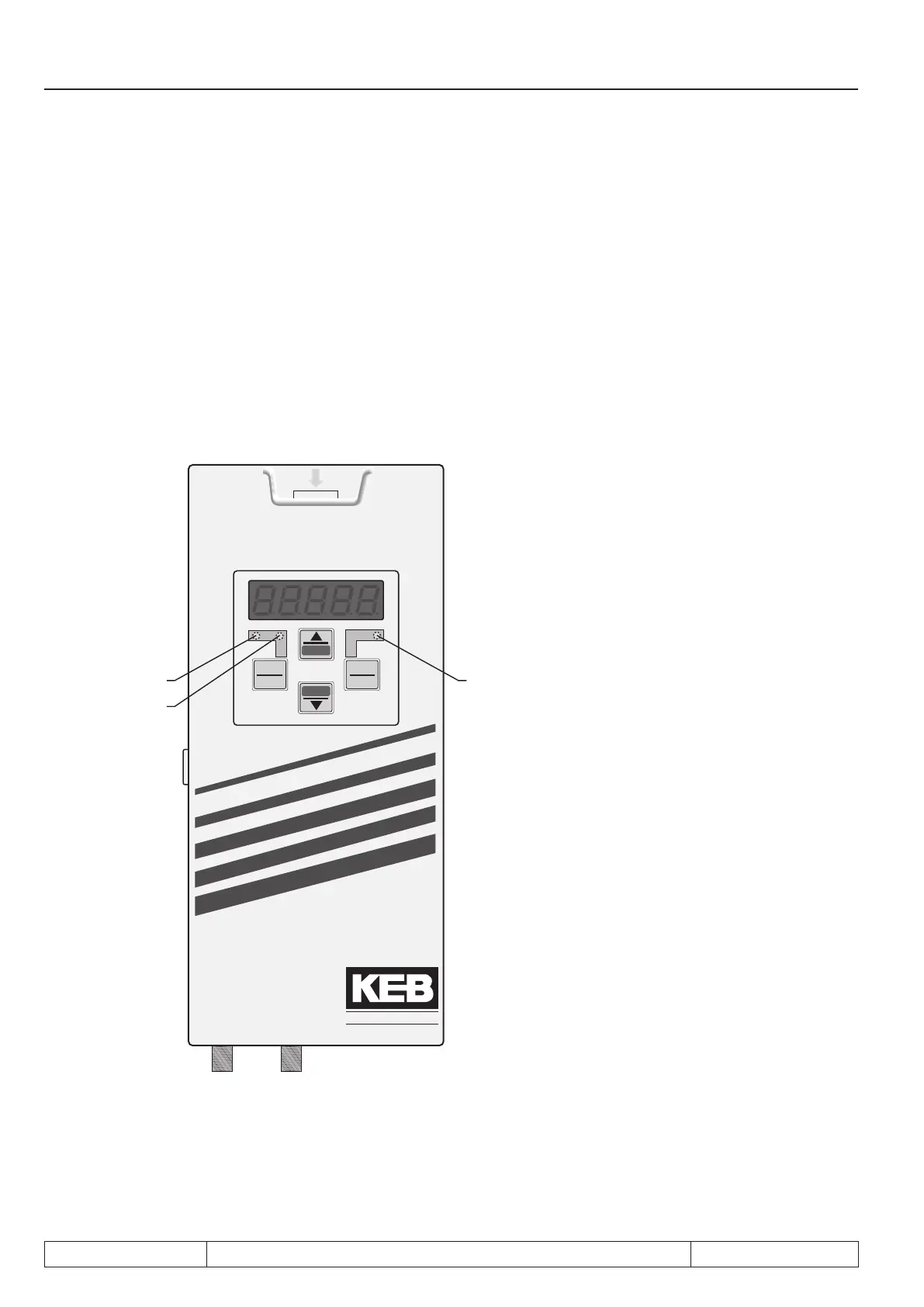

Fig. 11.1.8 Sercos operator
START
FUNC.
SPEED
ENTER
F/R
STOP
S-IN S-OUT
E
COM
LWL
Diag
ANTRIEBSTECHNIK
COM (green): Lights up when access via the
SERCOS service channel
LWL (red):
Full brightness
Low brightness
no SERCOS input signal (LWL
disconnected, previous device
switched off)
receive distortion of the SER-
COS input signal (transmission
power of the previous device
too high or too low, incorrect
baud rate)
E (red): on =>
ashing =>
off =>
Servo/inverter ready for operation
Servo/inverter fault
no supply voltage
Diag Diagnostic interface to the PC
S-IN SERCOS input interface
S-OUT SERCOS output interface
