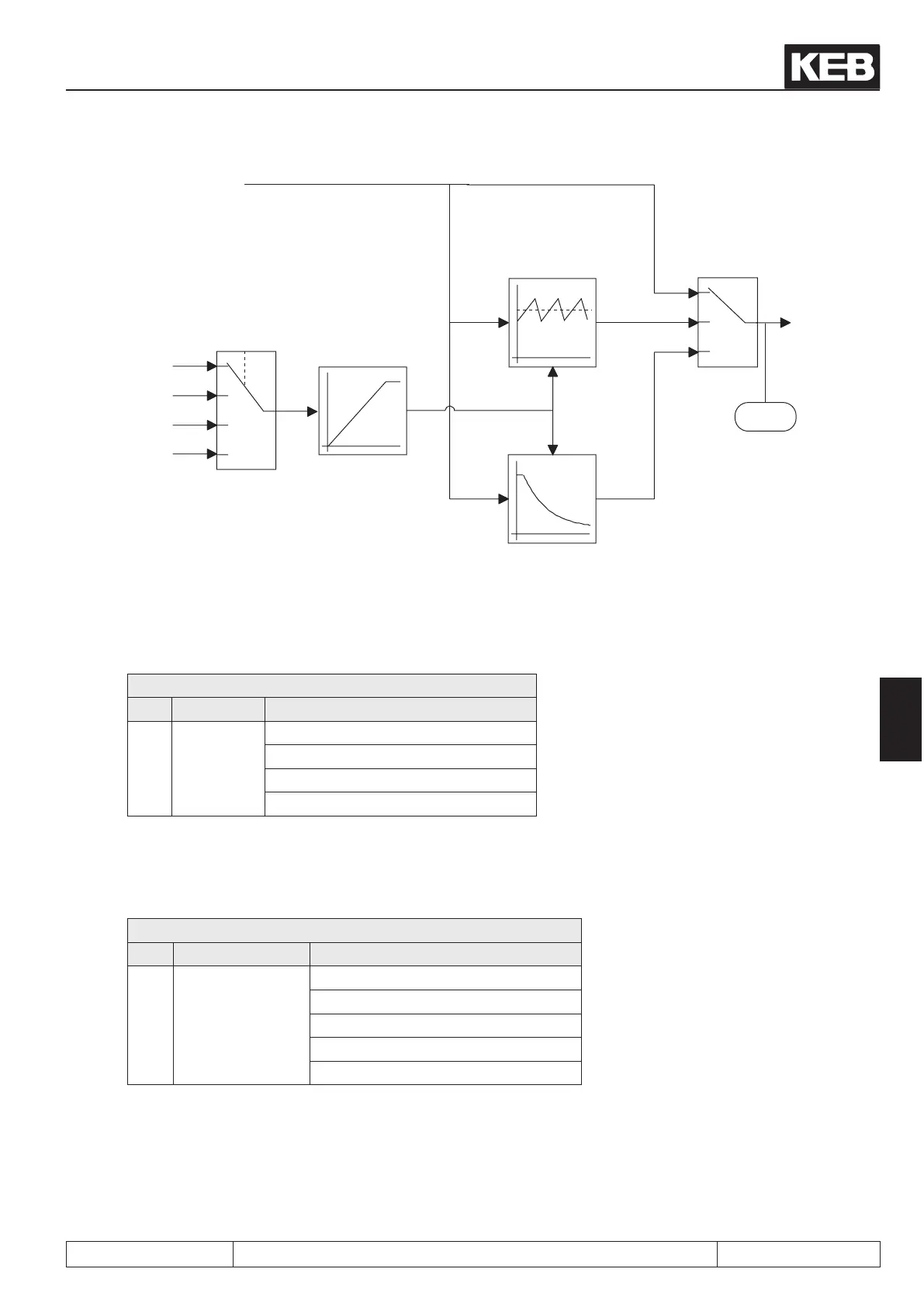

KEB COMBIVERT F5-A User Manual

Special functions
© KEB, 2012-10 COMBIVERT F5-A, -E, -H Page 7.15 - 21
7
0
1
2
3
oP.44
Bit 4...7
AN1 (ru.28)
AN2 (ru.30)
AN3 (ru.32)
digital (oP.45)
oP.46
oP.47, 48
oP.49
0
1
2
oP.44
Bit 0...3
ru.02
Ramp output value
Reference
Sweep generator
Diameter correction
Amplitude
Diameter signal
Activation of the diameter correction
The diameter correction must be activated in parameter oP.44.
oP.44: Ext. function mode /source
Bit Meaning Value
0...3
Select
function
0: off
1: Sweep-gen. function
2: Diameter correction
3...15: off
Determination of the diameter signal
oP.44 determines the source where the diameter correction is output.
oP.44: Ext. function mode /source
Bit Meaning Value
4...7
Adjust input
source
0: AN 1 input (ru.28)
16: AN 2 input (ru.30)
32: AN 3 input (ru.32)
48:digital source (oP.45)
64: AUX input (ru.53)
The diameter signal can be preset also via oP.45 „ext. function digital source “in the range of 0… 100% beside
to the analog setting via AN 1, AN 2, AN 3 or AUX.
Specicationofthediametercorrection
The diameter signal is evaluated within the range of 0 % to 100%. Values < 0% are set to 0%, values > 100%
are limited to 100%.
