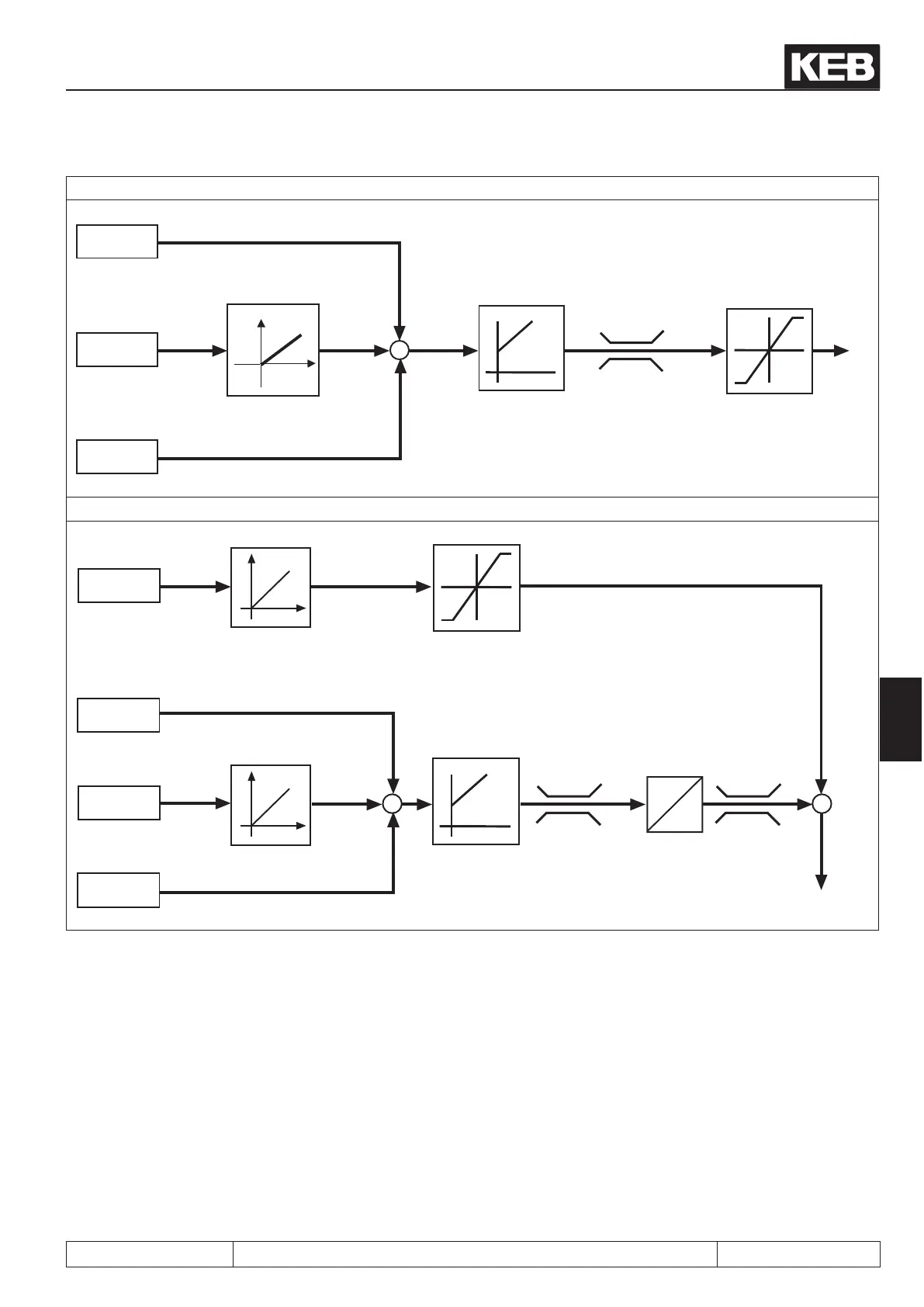

Special functions
© KEB, 2012-10
COMBIVERT
F5-A, -E, -H
Page
7.15 - 33
7
PID controller as active current
- (torque-) control without precontrol
Digital reference
Analog reference
Active current-
actual value
cn.02 = 5
cn.00 = 1
cn. 01
AN1
ru.17
Characteristic amplier
An-Parameter
ru.28
ru.27
+
-
PID controller
cn.04...06
cn.10
Ramp generator
cn. 07
cn. 08
ru.01
ru.52
ru.02
oP
.00 = 6
PID controller as active current
- (torque-) control with precontrol
Characteristic amplier
An-Parameter
+
-
PID controller
cn.04...06
cn.10
Ramp generator
ru.02
ru.28
ru.27
ru.30
ru.29
cn.14
Active current-
actual value
cn.02 = 5
ru.17
Digital current
reference
cn. 01
cn.00 = 0
AN1
Analog current
reference
cn.00 = 2
AN1
Analog current
reference
cn. 07
cn. 08
cS.00 = 1
+
+
cs.04
%
Hz
ru.52
Ramp output
value
464
466
