Keithley 2015 Service Manual

Performance Verification 1-19
Verifying function generator amplitude
Follow the steps below to verify Model 2015 function generator amplitude:
1. Connect the rear panel SOURCE OUTPUT jack to the front panel INPUT jacks. (See
Figure 1-9.)

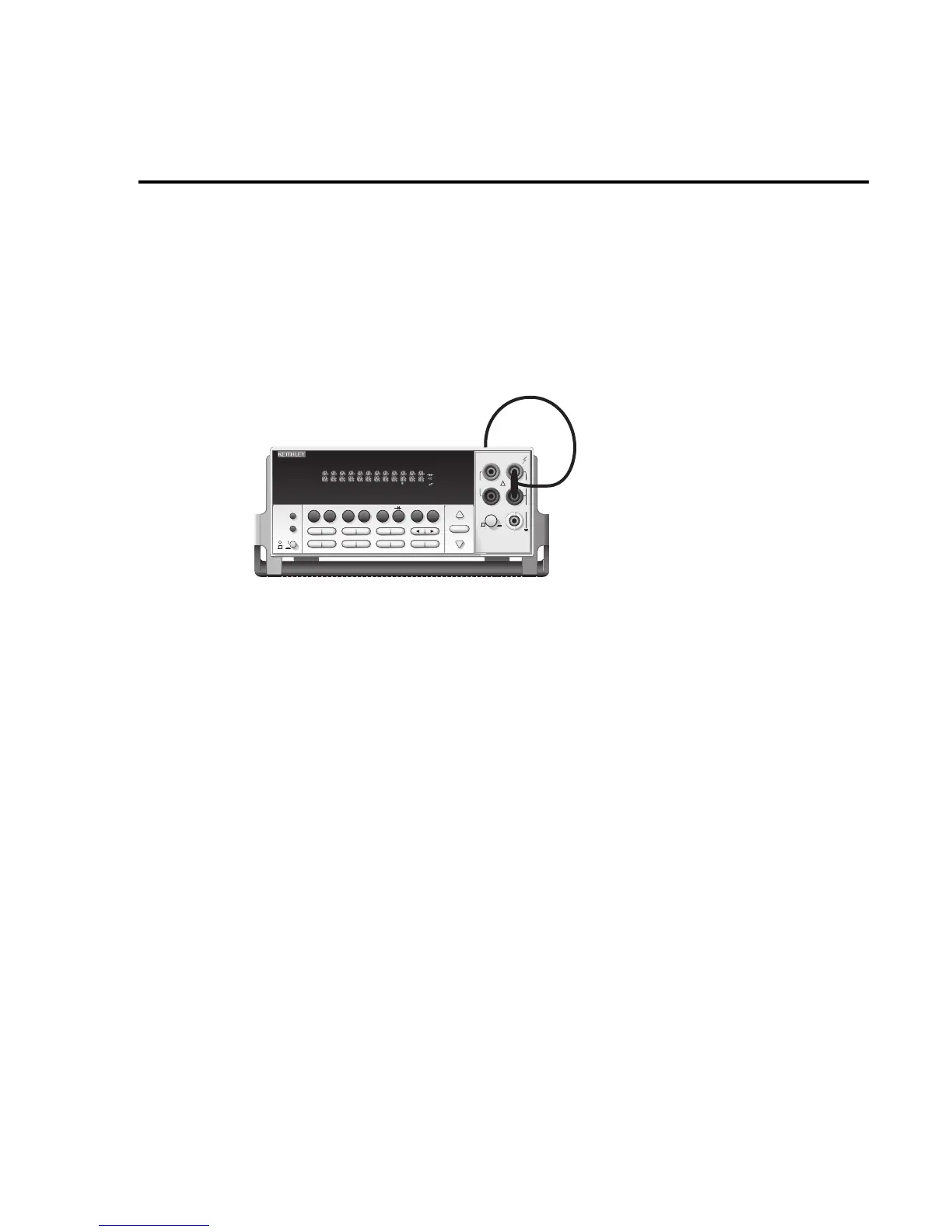

Figure 1-9
Connections for function generator amplitude verification
2. Use the SOURCE key to set the function generator operating modes as follows:
SINE OUT: ON
FREQ: 1kHz
IMPEDANCE: HIZ
AMPL: 4.0000V
3. Press the ACV key to select the AC voltage function, and choose the 10V range.
4. Verify that the AC voltage reading is between 3.986V and 4.014V.
Model 2015
2015 THD MULTIMETER
RANGE
!
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
AUTO
SHIFT
LOCAL
POWER
RANGE
R
SHIFT
CH1REM
TALK
LSTN
SRQ
STAT
REL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
HOLD TRIG FAST MED SLOW AUTO ERR
EXIT ENTER
DIGITS RATE
RELFILTER
TRIG
EX TRIG
STORE RECALL
SOURCE MEAS
DCV
DCI
MATH
THD
dBm
ACV
ACI
Ω2 Ω4
FREQ
TEMP
dB
CONT PERIOD TCOUPL
LIMITS ON/OFFDELAY
HOLD
SAVE SETUP
CONFIG HALT
TEST
RS232
GPIB
CAL
STEP SCAN
Connect INPUT jacks to
rear panel SOURCE OUTPUT
THD

Keithley 2015 Specifications

General

Model	Keithley 2015
Category	Multimeter
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 300 kHz
Resistance Range	100 MΩ
DC Current Range	3 A
DC Current Accuracy	0.05%
AC Current Range	3 A
Display	5.5 digit
Connectivity	GPIB
Power Supply	100 V to 240 V AC, 50 Hz to 60 Hz
