Routine Maintenance 3-3

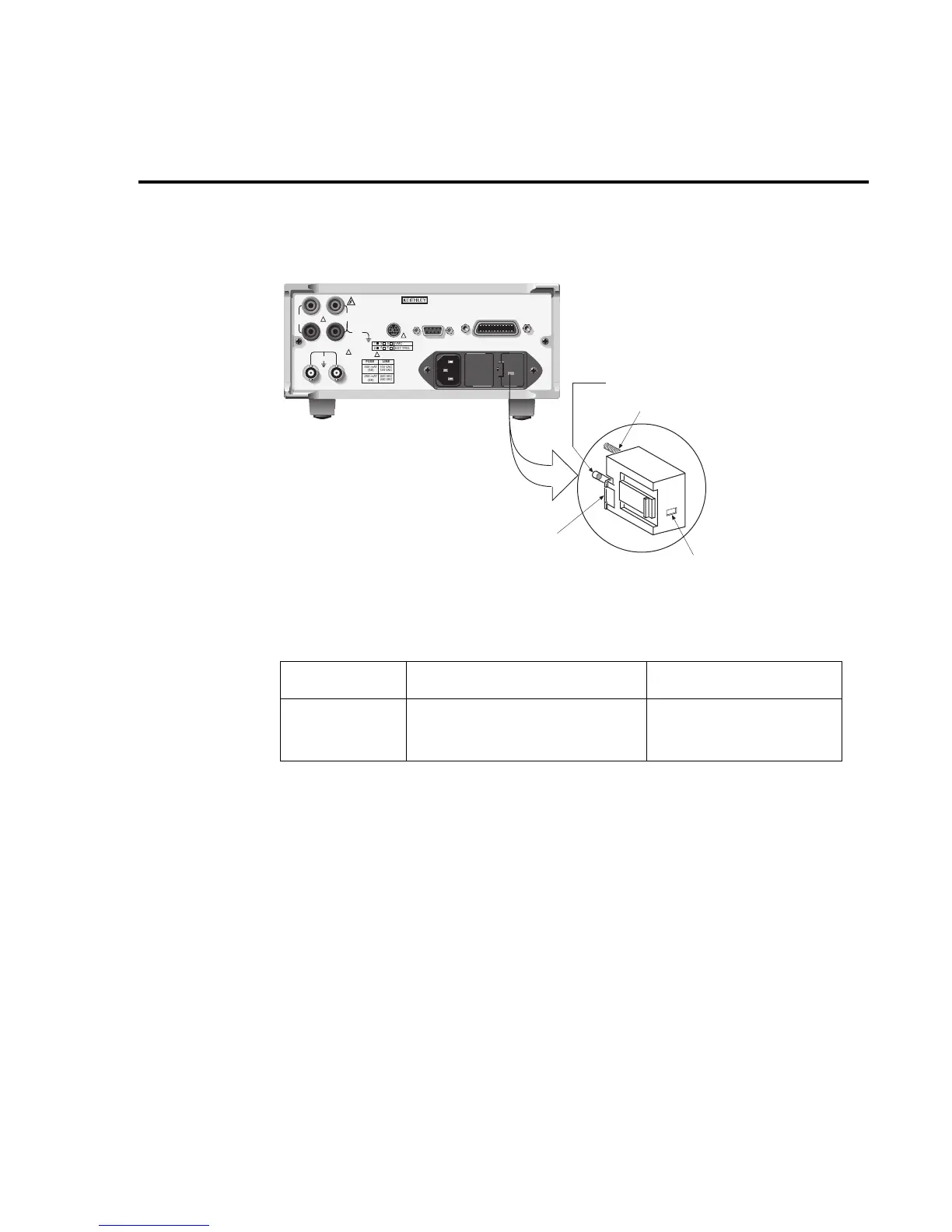

Figure 3-1
Power module
Table 3-1
Power line fuse
Replacing the AMPS fuse
The AMPS fuse protects the current input from an over-current condition. Follow the steps
below to replace the AMPS fuse.
WARNING
Make sure the instrument is disconnected from the power line and other
equipment before replacing the AMPS fuse.
1. Turn off the power, and disconnect the power line and test leads.
2. From the front panel, gently push in the AMPS jack with your thumb, and rotate the fuse
carrier one-quarter turn counterclockwise. Release pressure on the jack, and its internal
spring will push the fuse carrier out of the socket.
3. Remove the fuse, and replace it with the same type: 3A, 250V, fast blow, Keithley
part number FU-99-1.
Line Voltage Rating Keithley Part No.
100/120V 1/2A, 250V, 5
×
20 mm, slow-blow FU-71
200/240V 1/4A, 250V, 5
×
20 mm, slow-blow FU-96-4
Model 2015
1
3 5
2
4 6
VMC
EXT TRIG
FUSE LINE
100 VAC
120 VAC
250 mAT
(SB)
220 VAC
240 VAC
500 mAT
(SB)
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
RS232
120
MADE IN
U.S.A.
INPUT
500V
PEAK
350V
PEAK
1000V
PEAK
TRIGGER
LINK
SENSE
Ω 4W
HI
LO
!
LINE RATING
50, 60Hz
40VA MAX
IEEE-488
(CHANGE IEEE ADDRESS
FROM FRONT PANEL)
!
!
42V PEAK
SOURCE
OUTPUT
SOURCE
OUTPUT
INV/PULSE
!
Fuse
Spring
Window
Line Voltage Selector
Fuse Holder Assembly
120
