Model 2750 Multimeter/Switch System User’s Manual Remote Operations 10-5
GPIB connections
To connect the Model 2750 to the GPIB bus, use a cable equipped with standard IEEE-488
connectors as shown in Figure 10-1.

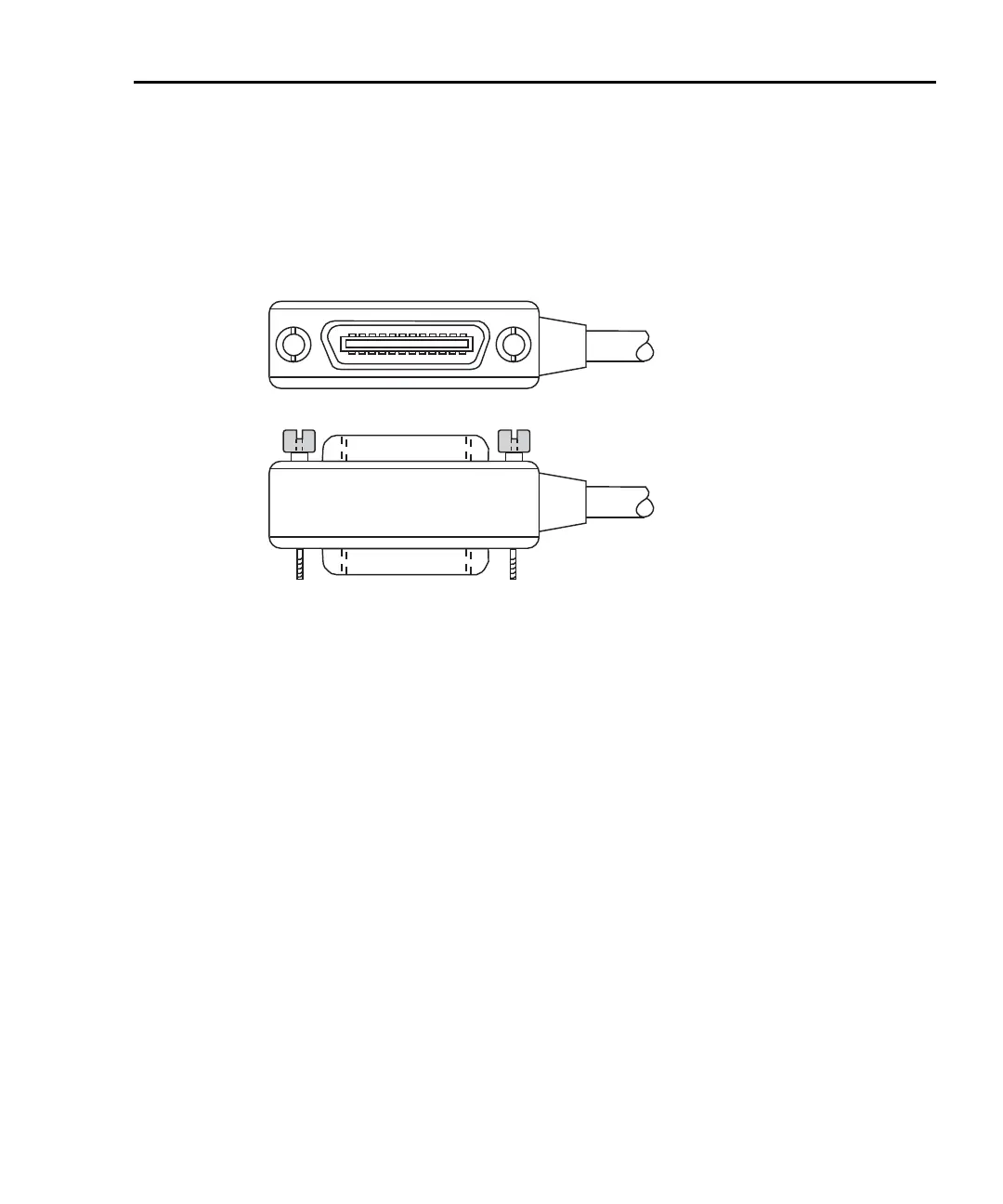

Figure 10-1
IEEE-488 connector
To allow many parallel connections to one instrument, stack the connectors. Two screws
are located on each connector to ensure that connections remain secure. Present standards
call for metric threads, which are identified with dark-colored screws. Earlier versions
have different screws, which are silver-colored. Do not use these types of connectors on
the Model 2750; it is designed for metric threads.
2750-900-01.book Page 5 Wednesday, August 3, 2011 7:56 AM

Keithley 2750 Specifications

General

Interface	GPIB, RS-232, Ethernet
Switching Speed	Up to 500 channels/second
Maximum Voltage	300V
Operating Temperature	0°C to 50°C
Measurement Functions	DCV, ACV, DCI, ACI, 2-wire Resistance, 4-wire Resistance, Frequency, Temperature
Resolution	6.5 digits
Current	1A
Maximum Current	1A
