Model 2750 Multimeter/Switch System User’s Manual Signal Processing Sequence and Data Flow D-7
Data flow (remote operation)
Remote operation can be used with triggering configured to perform a specified number of
measurements and then stop. The various read commands (SENS:DATA?, FETCh?,
READ?, MEAS?, CALC2:DATA?, TRACe:DATA?, and CALC1:DATA?) return the data
array(s) acquired during the measurement cycle. Data flow for this triggering configura-
tion is summarized by the block diagram shown in Figure D-4. Refer to this block diagram
for the following discussion.

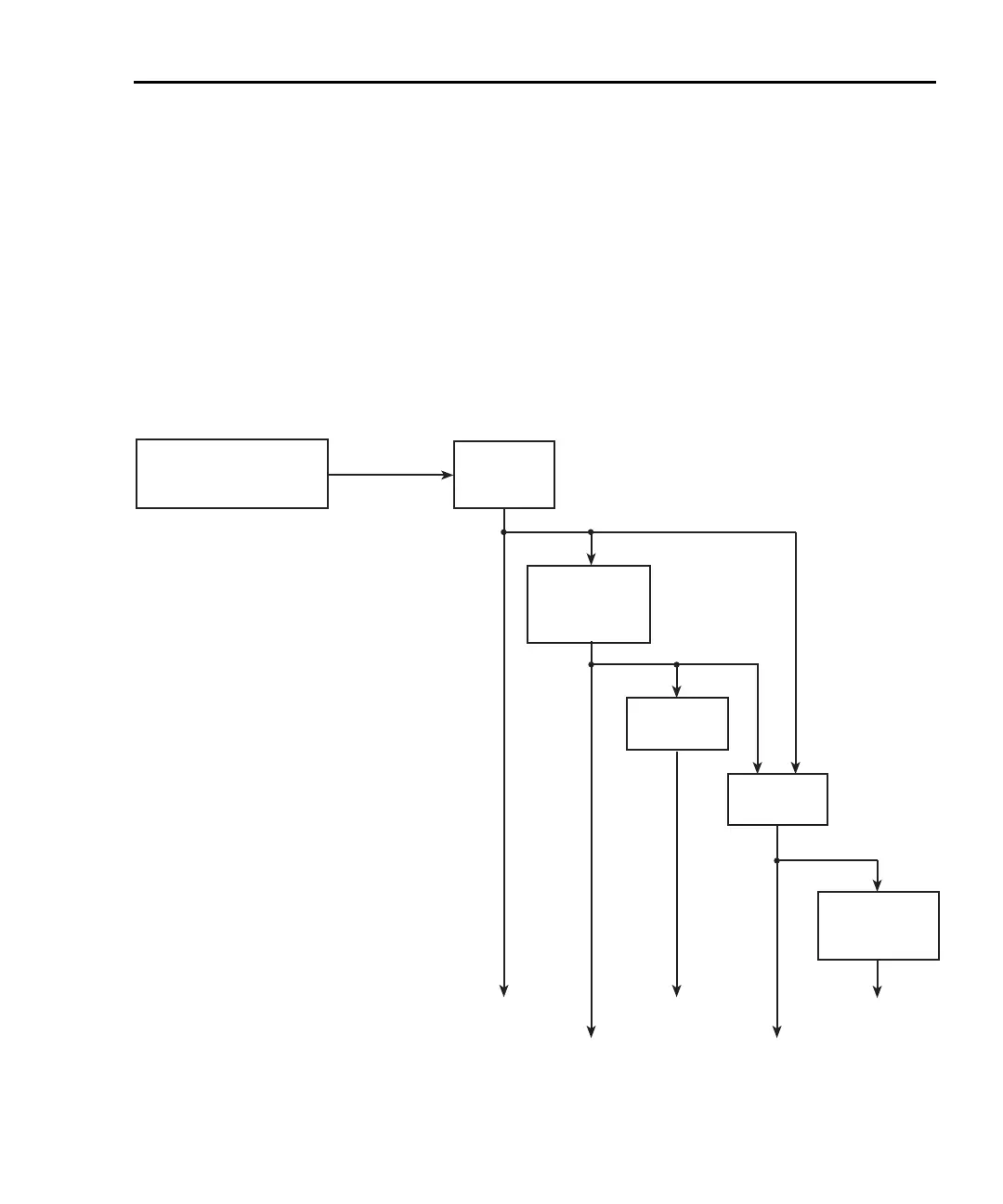

Figure D-4
Data flow for remote operation
Min, Max, Sdev
Mean, Pk-Pk
SENSe
Measurement, Filter, Rel,
and Ratio or Ch Avg
CALC1
CALC3
Limit Tests
TRACe:DATA?
CALC
[SENS[1]]:DATA[:LAT]?
[SENS[1]]:DATA:FRESh?
Math
(mX+B, Percent
or 1/X)
CALC3:LIM1:FAIL?
CALC3:LIM2:FAIL?
FETCh?
READ?
MEAS?
CALC[1]:DATA[:LAT]?
CALC[1]:DATA:FRESh?
Sample
Buffer
TRACe
Data Store
TRAC:CLE
INIT:CONT OFF
TRIG:COUN 1
INIT
CALC2:IMM?
CALC2:IMM
CALC2:DATA?
