E-8 Measurement Considerations Model 2750 Multimeter/Switch System User’s Manual
Figure E-3 shows how to connect several instruments together to eliminate this type of
ground loop problem. Here, only one instrument is connected to power line ground.
Ground loops are not normally a problem with instruments like the Model 2750 that have
isolated LO terminals. However, all instruments in the test setup may not be designed in
this manner. When in doubt, consult the manual for all instrumentation in the test setup.

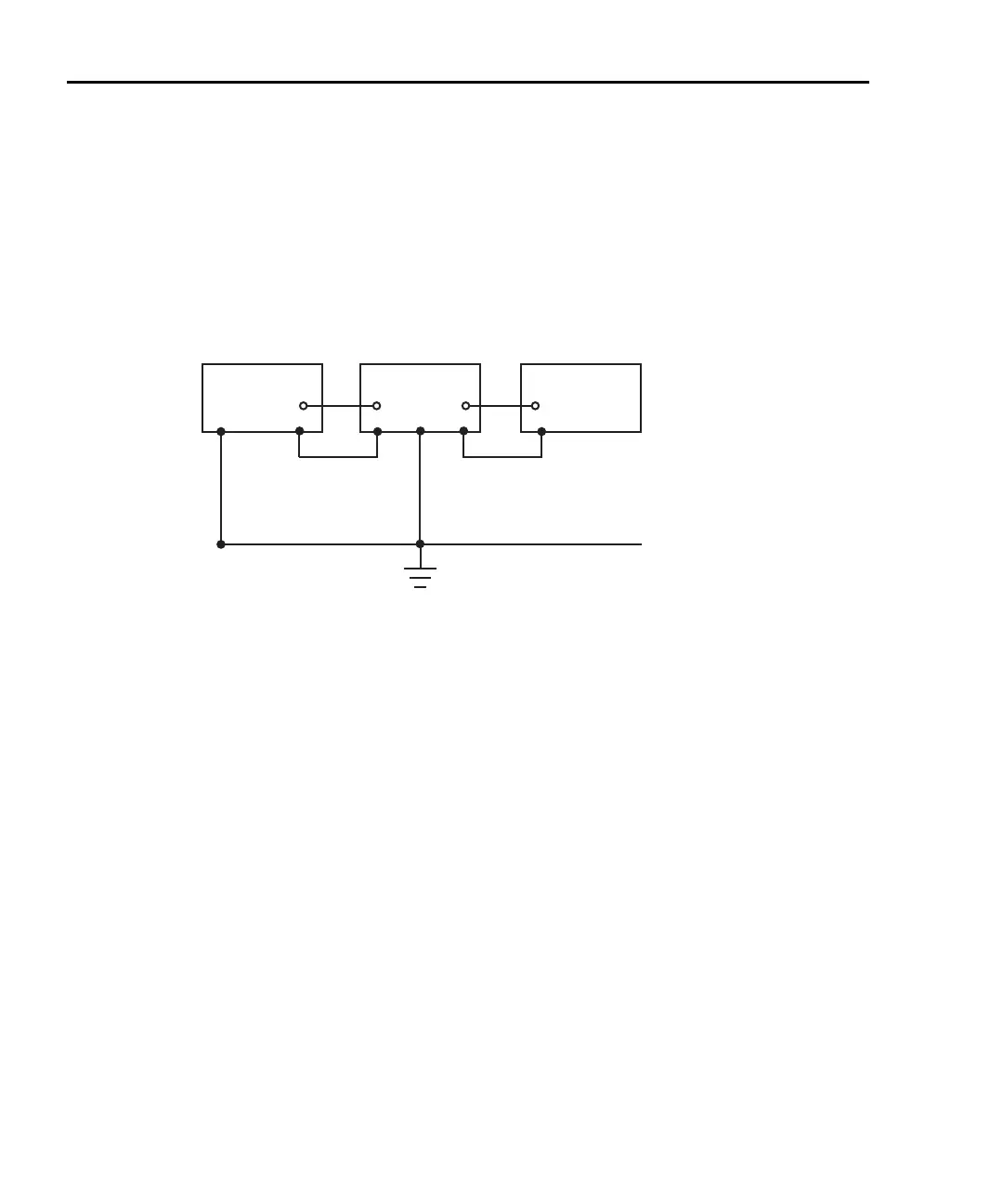

Figure E-3
Eliminating ground loops
Instrument 1
Power Line Ground
Instrument 2 Instrument 3
2750-900-01.book Page 8 Wednesday, August 3, 2011 7:56 AM

Keithley 2750 Specifications

General

Interface	GPIB, RS-232, Ethernet
Switching Speed	Up to 500 channels/second
Maximum Voltage	300V
Operating Temperature	0°C to 50°C
Measurement Functions	DCV, ACV, DCI, ACI, 2-wire Resistance, 4-wire Resistance, Frequency, Temperature
Resolution	6.5 digits
Current	1A
Maximum Current	1A
