B-8 Model 7700 Connection Guide Model 2750 Multimeter/Switch System User’s Manual

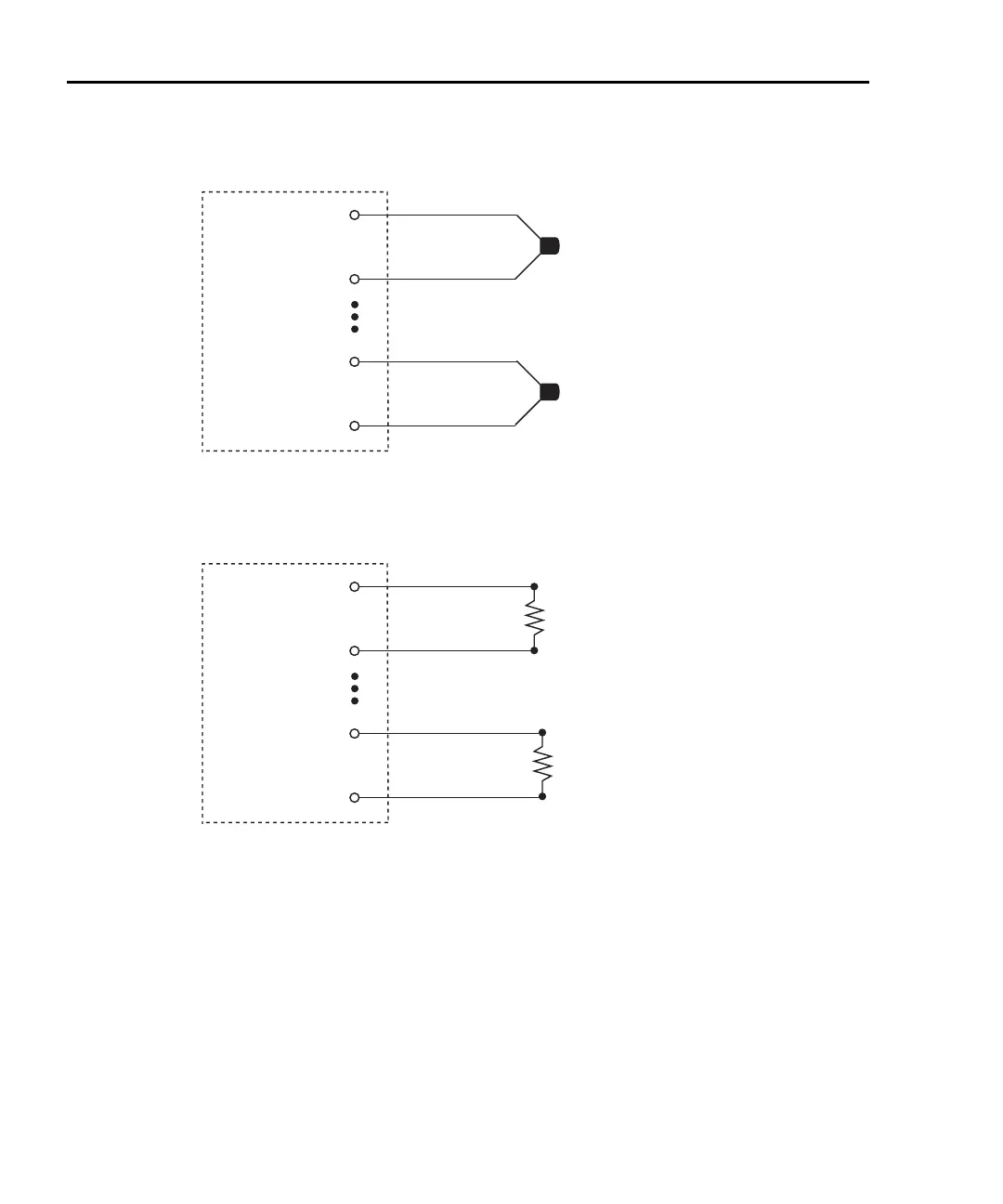

Figure B-5
Thermocouple connections
Figure B-6
Ω2-Wire and thermistor connections
Channel 1
HI
LO
Channel 20
HI
LO
(Channels 2–19)
Thermocouple
Channel 1
HI
LO
Channel 20
HI
LO
(Channels 2–19)
Resistor or
Thermistor
