2-24 Close/Open Switching Module Channels Model 2750 Multimeter/Switch System User’s Manual

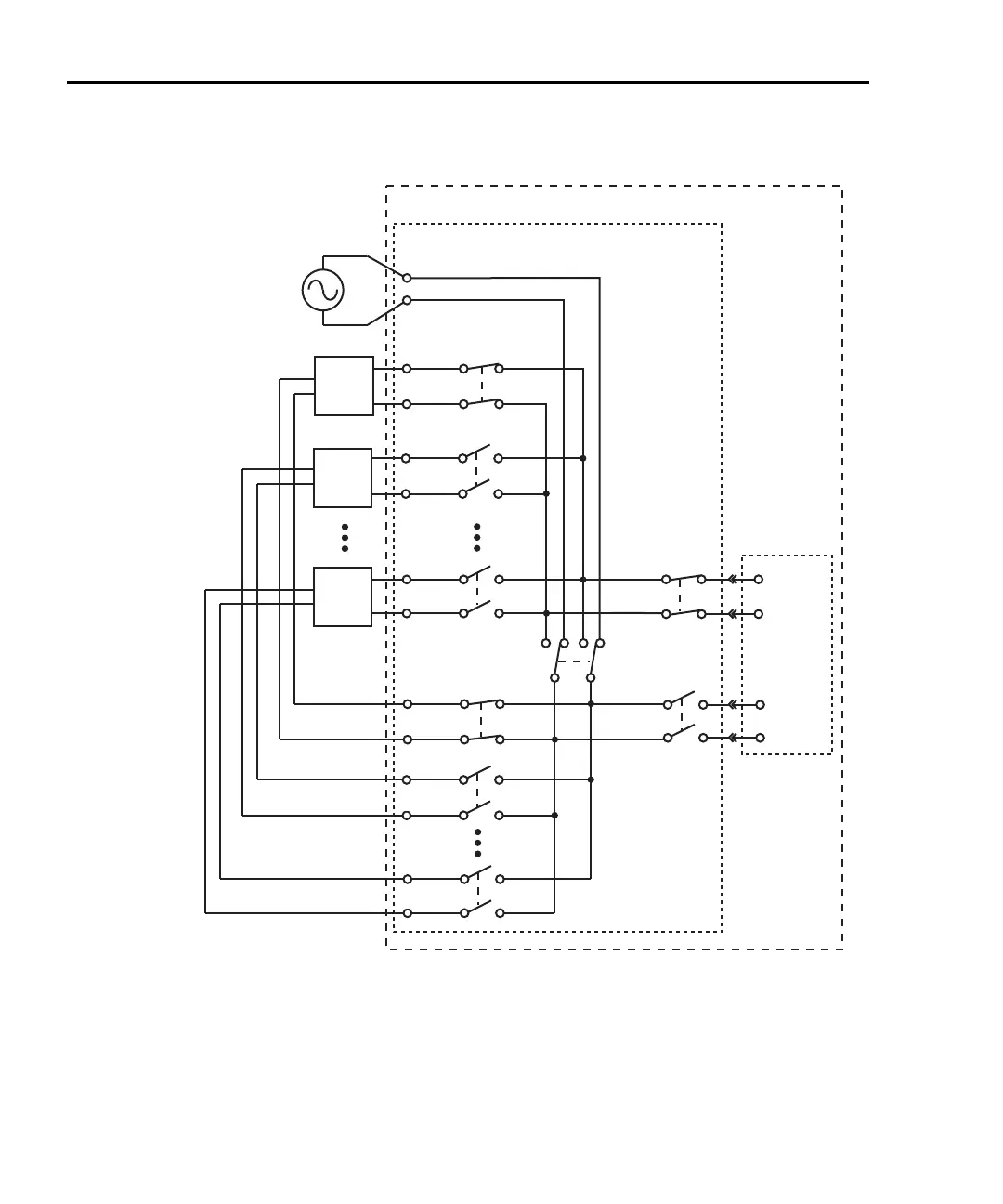

Figure 2-9
Dual multiplexer application connections
Ch 1
DUT
1
H1
LO
Ch 2
DUT
2
H1
LO
Ch 10
DUT
10
H1
LO
Ch 11
H1
LO
Ch 12
H1
LO
Ch 20
H1
LO
Ch 23
(Closed)
Ch 25
Ch 24
H1
LO
External
Source
Model 7700 Switching Module
Model 2750
DMM
HI
LO
Sense
HI
LO
Input
Sense
2750-900-01.book Page 24 Wednesday, August 3, 2011 7:56 AM
