Fuses
ICU Junction Block

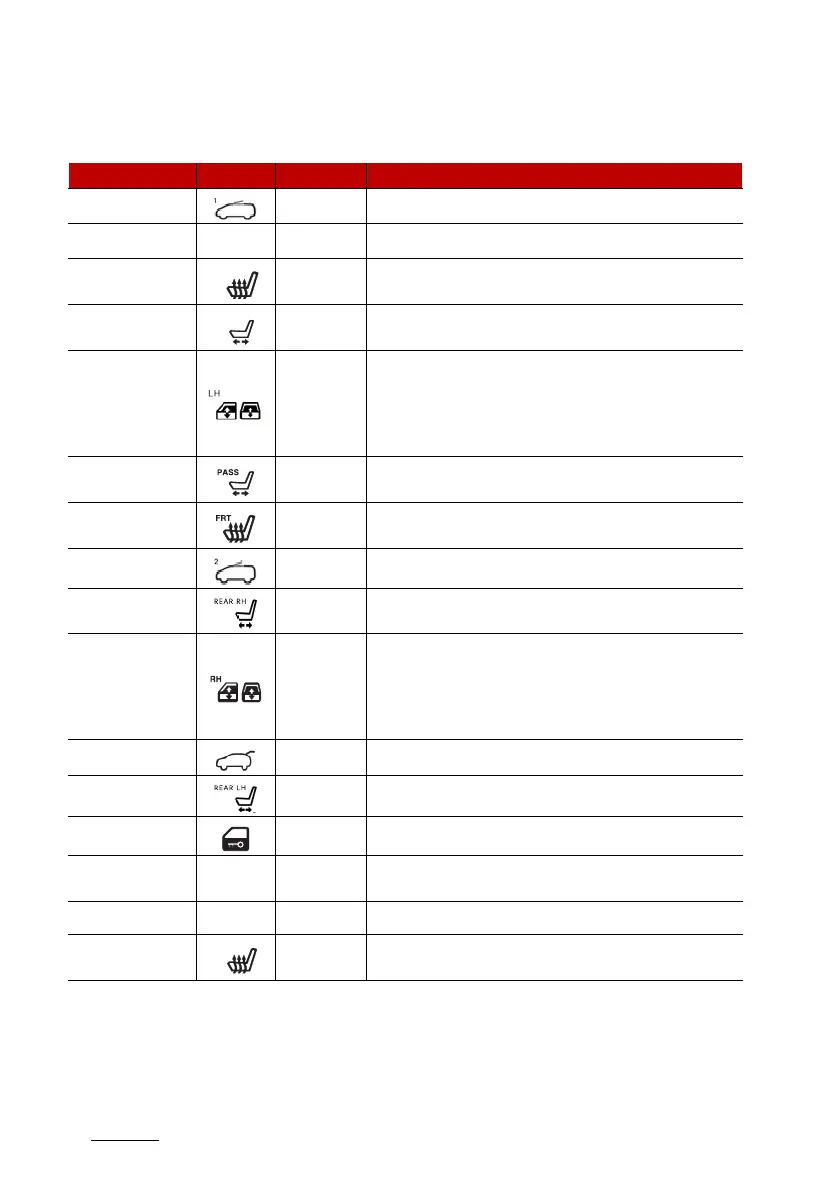

Fuse Name Symbol Fuse rating Circuit Protected
SUNROOF1 25A Front Sunroof Motor
AMP 30A AMP (Amplifier) (BOSE)
REAR LH S/HEAT 20A
2nd Seat LH Air Ventilation Control Module, 2nd Seat
Warmer Control Module
DRIVER P/SEAT 30A
Driver IMS (Integrated memory system) Control Module,
Driver Power Seat Switch
DRIVER P/WIN
-
DOW
25A
Rear Power Window Switch LH, Rear Safety Power Win
-
dow Module LH
[LHD] Driver Safety Power Window Module
[RHD] Passenger Power Window Switch, Passenger Safety
Power Window Module
PASSENGER P/
SEAT
30A Passenger Walk-In Module, Passenger Power Seat Switch
FRONT S/HEAT 20A
Front Air Ventilation Seat Control Module,
Front Seat Warmer Control Module
SUNROOF2 25A Rear Sunroof Motor
REAR RH P/SEAT 30A 2nd Seat RH Relax Module
PASSENGER P/
WINDOW
25A
Rear Power Window Switch RH, Rear Safety Power Win
-
dow Module RH
[LHD] Passenger Power Window Switch, Passenger Safety
Power Window Module
[RHD] Driver Safety Power Window Module
TAIL GATE 15A Tail Gate Open Relay
REAR LH P/SEAT 30A 2nd Seat LH Relax Module
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER
MULTI MEDIA1 25A Audio, A/V & Navigation Head Unit, Fuse - MULTI MEDIA2
E-CALL 10A Emergency Call (E-Call) Module
REAR RH S/HEAT 20A
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventila
-
tion Control Module
AMP
REAR LH
DRV
MULTI
MEDIA
1
E-CALL
REAR RH
