Fuses
Relay
Refer to the following table for the
relay type.

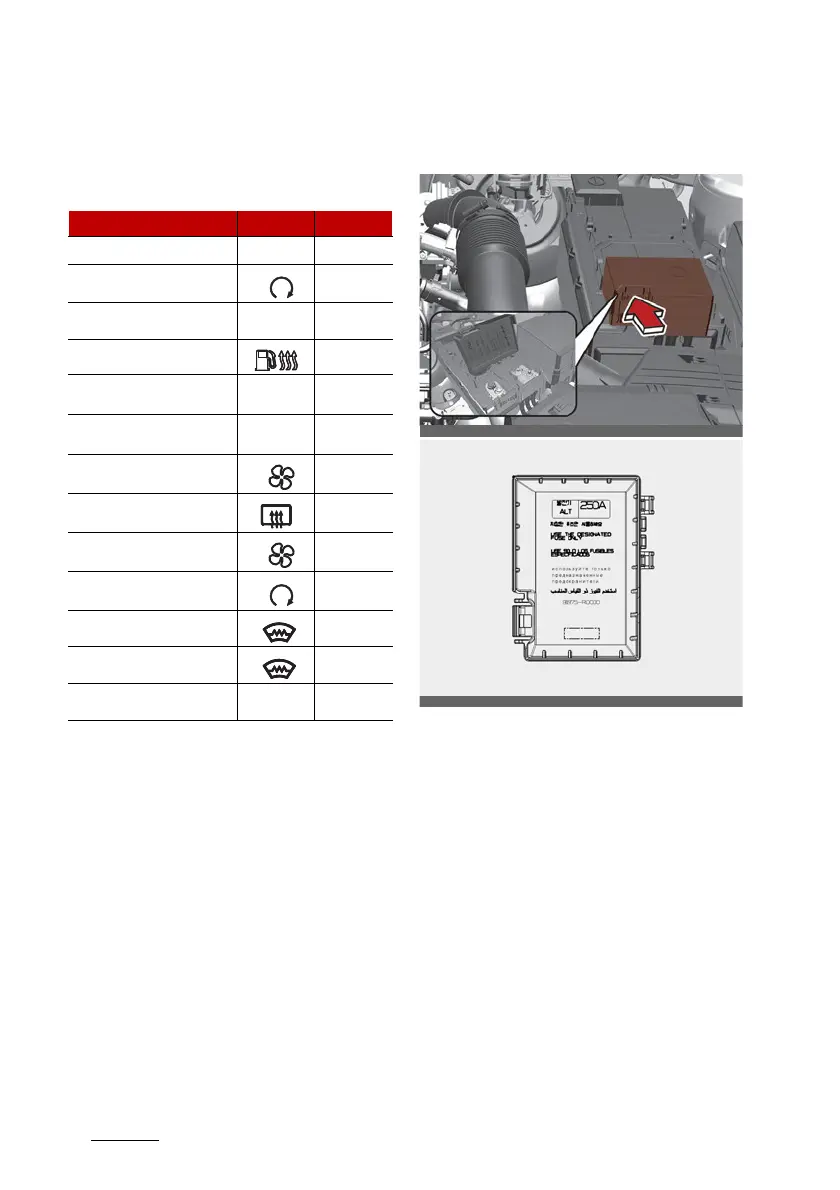

Engine compartment fuse panel
(Battery terminal cover)
Relay Name Symbol TYPE
DCU MICRO
START #1 MICRO
FUEL PUMP MICRO
FUEL FILTER HEATING MICRO
PTC HEATER #1 MICRO
PTC HEATER #2 MICRO
FRT BLOWER MINI
REAR HEATED MICRO
RR BLOWER MINI
START #2 MICRO
W/S HEATED GLASS #1 MICRO
W/S HEATED GLASS #2 MICRO
POWER OUTLET MICRO
DCU
1
FUEL
PUMP
PTC
1
HEATER
PTC
2
HEATER
FRT
RR
2
1
2
POWER
OUTLET
OMQ4070029
OKA4071088L
