Maintenance Fuses
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
HORN 15A Horn Relay
A/C2 10A A/C Compressor Relay
B/ALARM 15A Burglar Alarm Horn Relay
E-SHIFTER3 7.5A [With SBW (Shift By Wire)] SCU (System Control Unit)
TCU3 10A TCM (Transmission Control Module)
SENSOR4 10A
[Smartstream D2.2] A/C Compressor Relay, Cooling Fan
Motor, Stop Lamp Switch, Electronic Thermostat, Oil Level
Sensor
[Smartstream G3.5] A/C Compressor Relay, Cooling Fan
Motor, Oxygen Sensor #1/#2/#4, Purge Control Solenoid
Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid
Valve, Oil Control Valve #1/#2/#3/#4
SENSOR7 15A
[Smartstream D2.2] Electronic VGT Actuator, PTC
Breather, Oil Pump Solenoid Valve, EGR Cooling Bypass
Solenoid Valve, Engine Room Junction Block (PTC Heater1
Relay)
[Smartstream G3.5] Injector #1/#2/#3/#4/#5/#6 (MPI)
ECU1 15A
ECM (Engine Control Module)/PCM (Power train Control
Module)
ESP3 7.5A ESP (Electronic Stability Program Control Module
POWER OUTLET2 20A Luggage Power Outlet

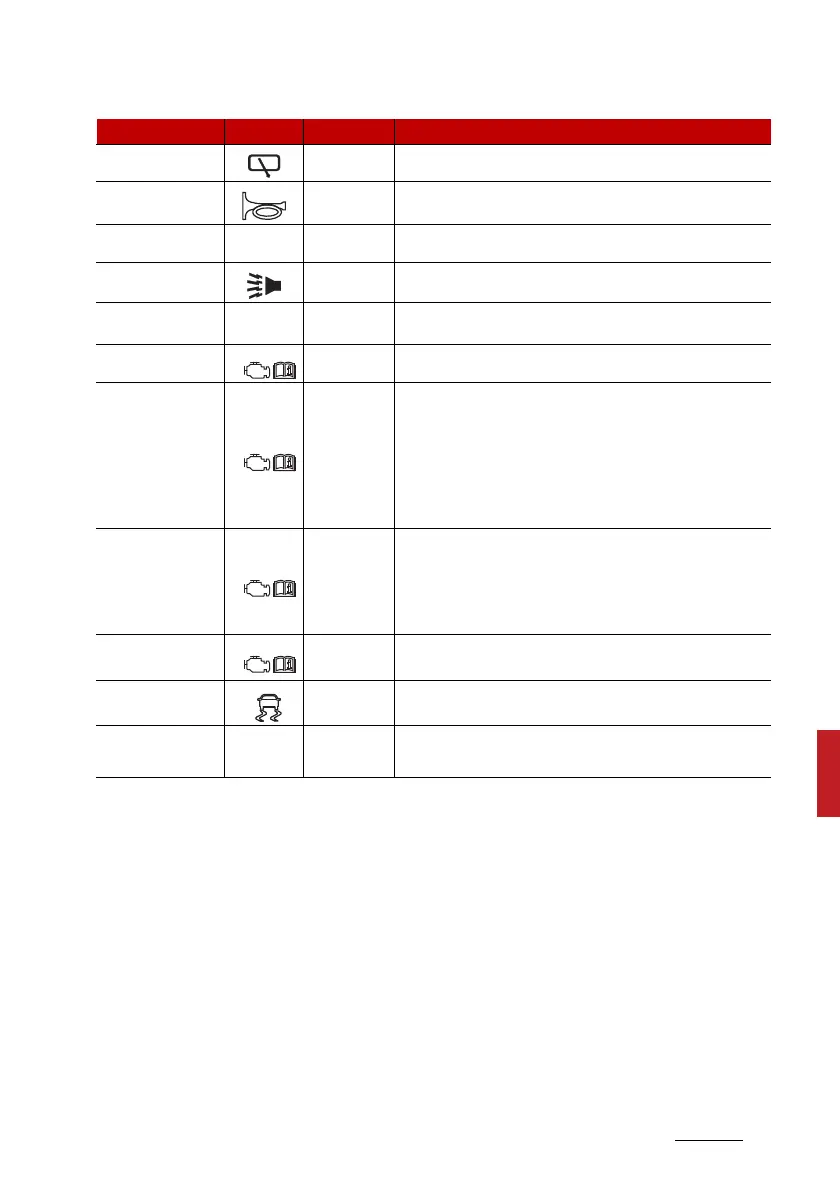

Fuse Name Symbol Fuse rating Circuit Protected
A/C
2
E-SHIFTER
3
T3
S4
S7
E1
3
POWER
OUTLET
2
