Engine compartment
Smartstream G1.2
(Petrol engine) 1.4 MPI

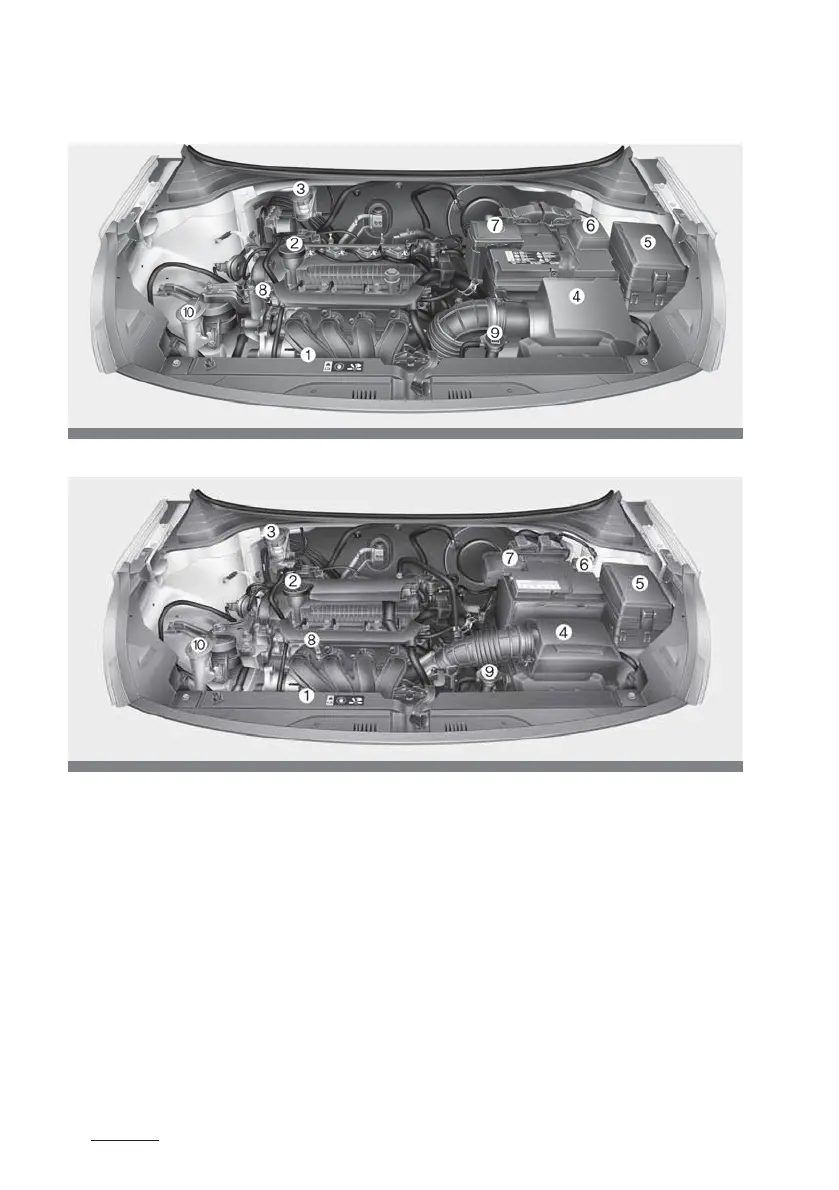

* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 7-45
2. Engine oil filler cap 7-41
3. Brake / clutch fluid reservoir 7-48
4. Air cleaner 7-52
5. Fuse box 7-76
6. Negative battery terminal 7-58
7. Positive battery terminal 7-58
8. Engine oil dipstick 7-41
9. 3adiator cap 7-45
10.Windscreen washer fluid reservoir 7-51
