Maintenance
7
Engine compartment
Maintenance

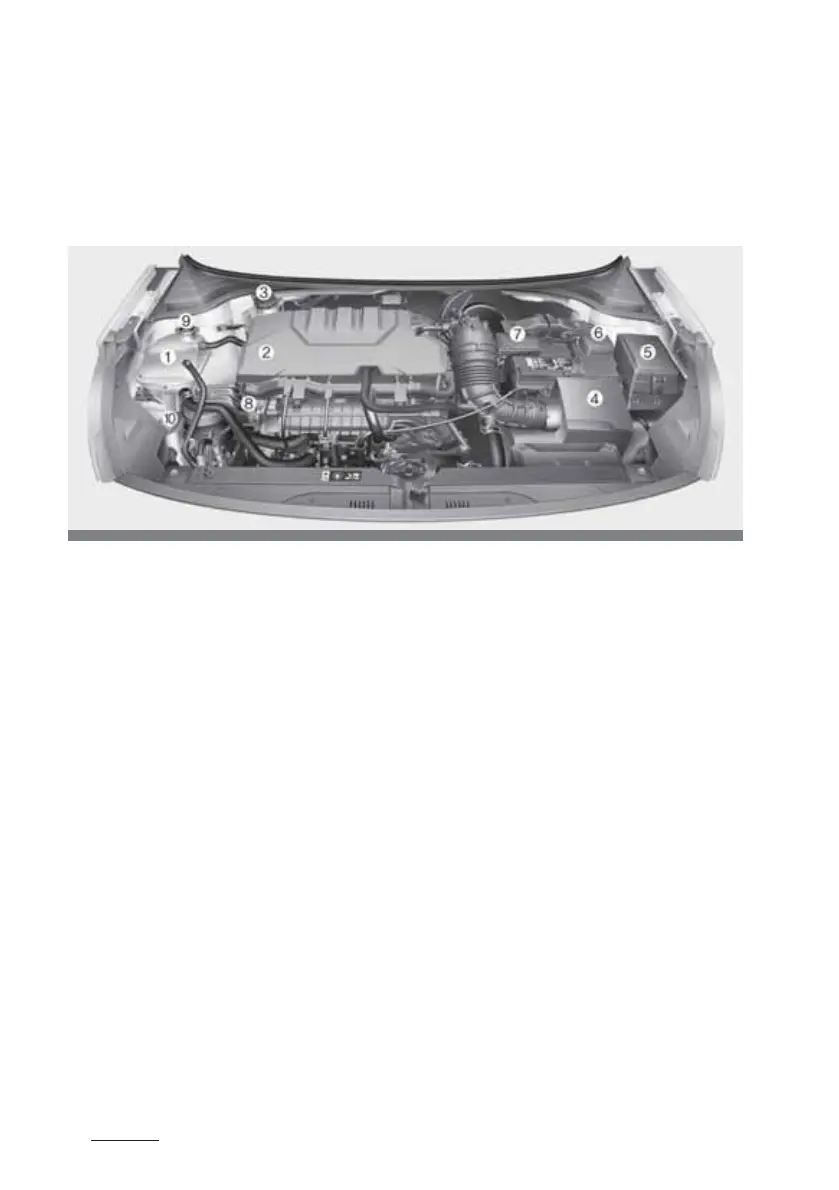

Engine compartment
Smartstream G1.0 T-GDi/Smartstream G1.0 T-GDi 48V HEV
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake / clutch fluid reservoir
4. Air cleaner
. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
. 3adiator cap
10.8indscreen washer fluid reser
-
voir
