Kidde Fire Systems ECS

Maintenance
06-236115-001 5-9 October 2014

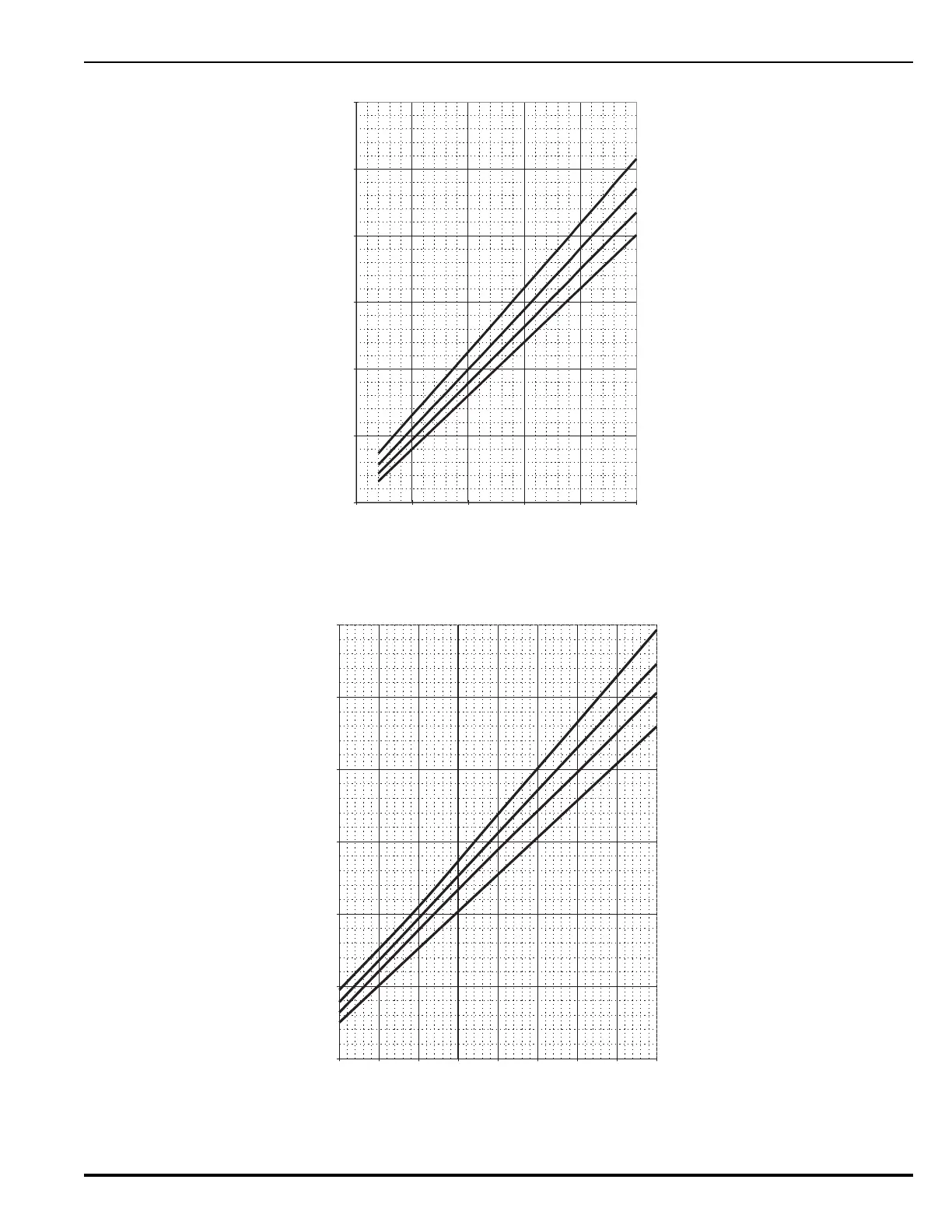

Figure 5-4. Calibration Chart for a New 200lb Cylinder
(New Design Ellipsoidal Head Manufactured After 3/98)
Figure 5-5. Calibration Chart for 350lb Cylinder
5.0
10.0
15.0
20.0
25.0
30.0
35.0
75 100 125 150 175 200
HFC-227ea Weight (lb.)
Flexible Tape Reading (Inches)
130°F
100°F
70°F
30°F
0.0
5.0
10.0
15.0
20.0
25.0
30.0
150 175 200 225 250 275 300 325 350
HFC-227ea Weight (lb.)
Flexible Tape Reading (Inches)
30°F
70°F
100°F
130°F
