Model 3605M0312-01
07/20 6-33
Lubrication and Maintenance
MAJOR PAD ADJUSTMENT
1. Loosen cam rollers so they move freely.
2. Lower planter to field operation position and release wing locks. Eliminate all uplift on planter frame by backing off
row unit down pressure springs and uplift on any other planter attachments.
3. Check position of center frame to axle cam roller guides. Gap between guides and frame should be the same
side to side. Gap on back sides of roller guide should be equal on both sides. Final adjustment will be done later.
4. Loosen four cap mounting nuts.
NOTE: Cap mounting nuts MUST be loosened before adjusting wear pads.
5. Loosen hex jam nuts and use pad adjusting bolts to position frame to center correctly.
6. Tighten pad adjusting bolts, back off, and then torque wear pads to 14 Nm. Hold adjusting bolt from turning and
torque hex jam nuts to 271 Nm.
7. Tighten cap mounting nuts.
8. Reset row unit down pressure and other attachments.

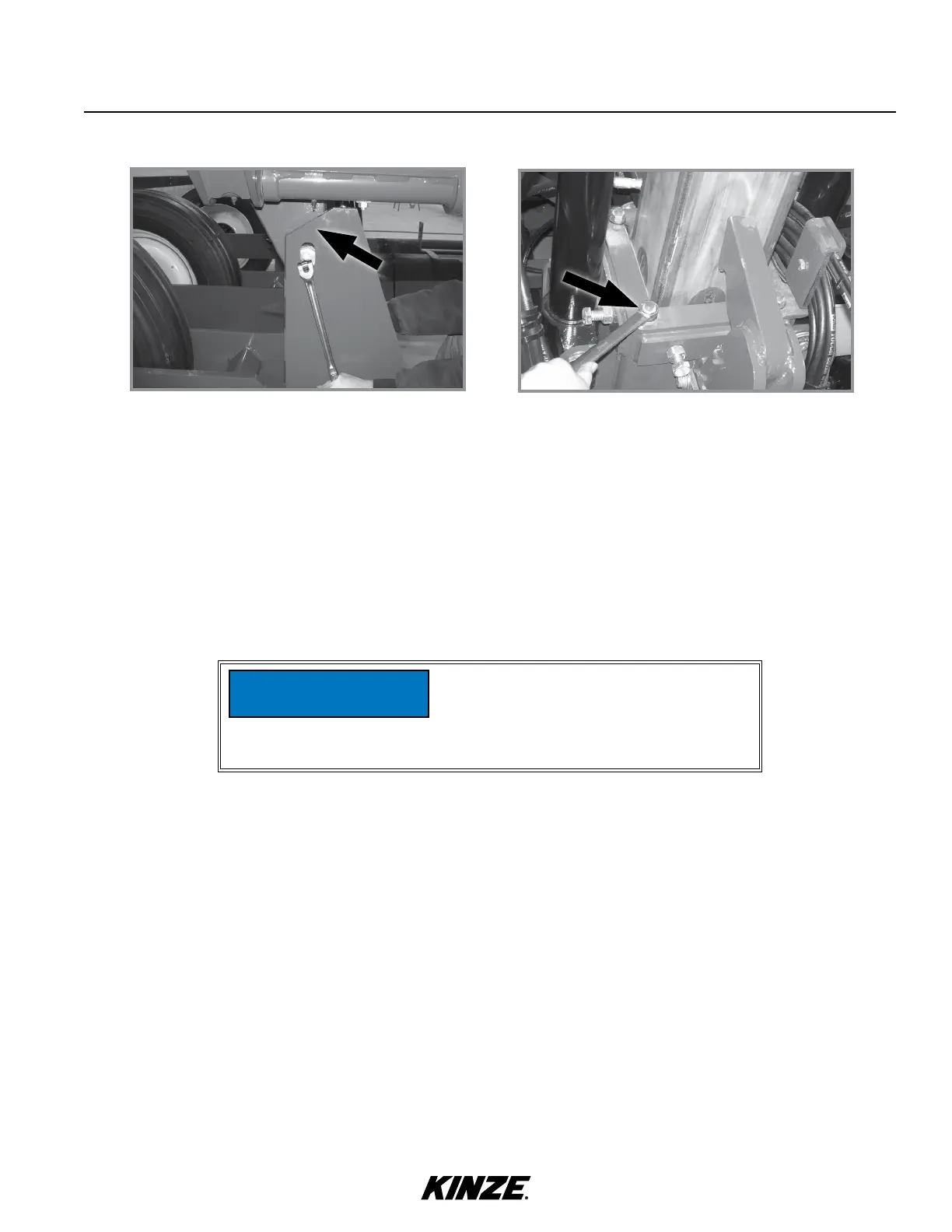

Loosen cam rollers
Loosen four cap mounting nuts
Over tightening wear pads will cause
premature wear and excessive hydraulic
lift pressures. Torque wear pads to 14 Nm.
Do not over tighten wear pads.
NOTICE
