M0312-01Model 3605
6-34 07/20
Lubrication and Maintenance
Improperly operating or working on
this equipment could result in death
or serious injury. Read and follow all
instructions before operating or working
on this equipment.
WARNING

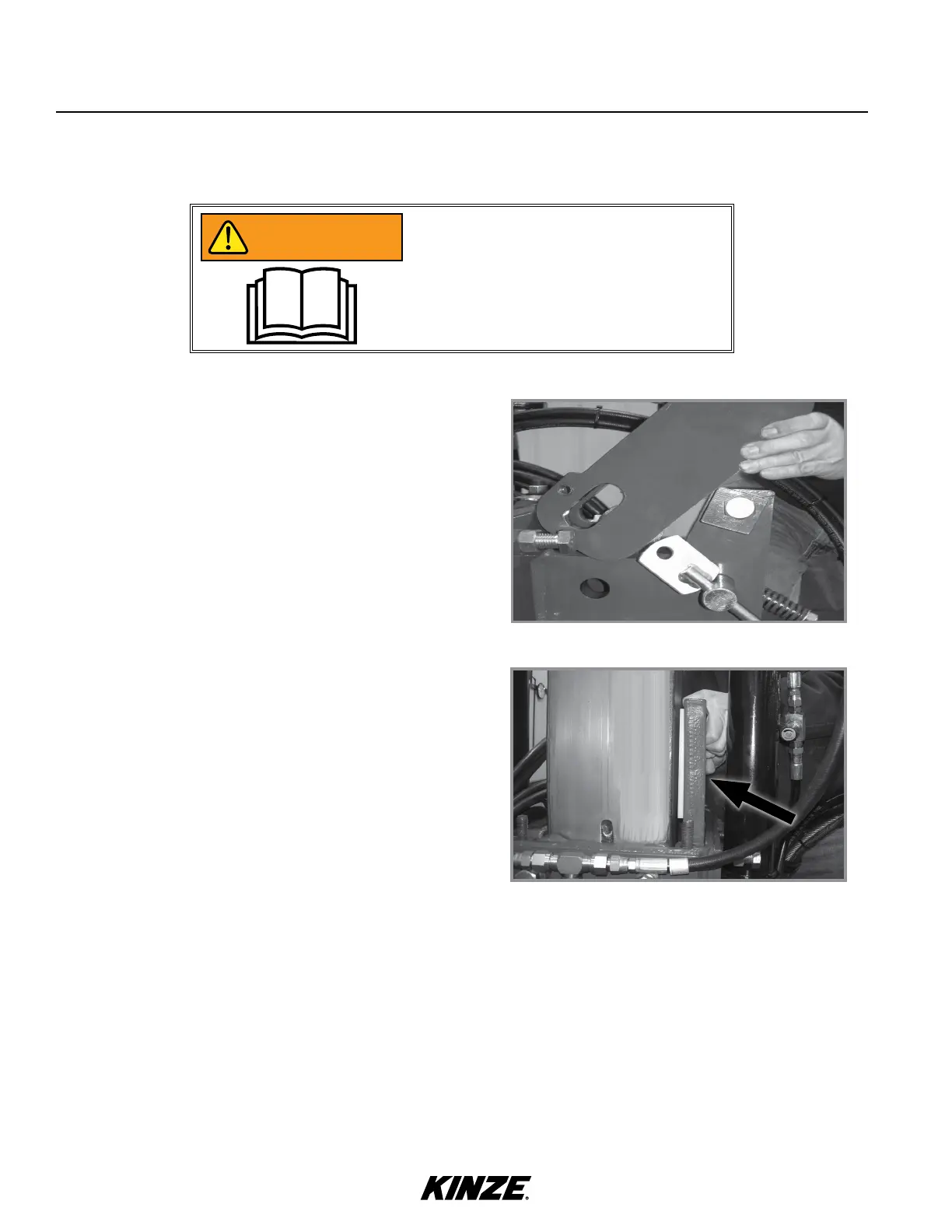

a. Loosen cam rollers so they move freely as shown.
b. Lower planter to field operation position and
release wing locks.
c. Eliminate all uplift on planter frame by backing
off row unit down pressure springs and uplift on
any attachments.
d. Remove safety hook.
e. Disconnect hydraulic hose, remove nut on
bulkhead fitting, and remove fitting from cap.
Removing safety hook
f. Loosen four cap mounting nuts and remove pad
holder cap.
g. Loosen pad hex jam nuts, back pad bolts out, and
remove four pad holder assemblies. Remove and
discard old pads.
Removing Pad Holder Assembly
PAD REPLACEMENT
