Kinze 3605 - Page 205

Model 3605M0312-01
07/20 6-71
Lubrication and Maintenance

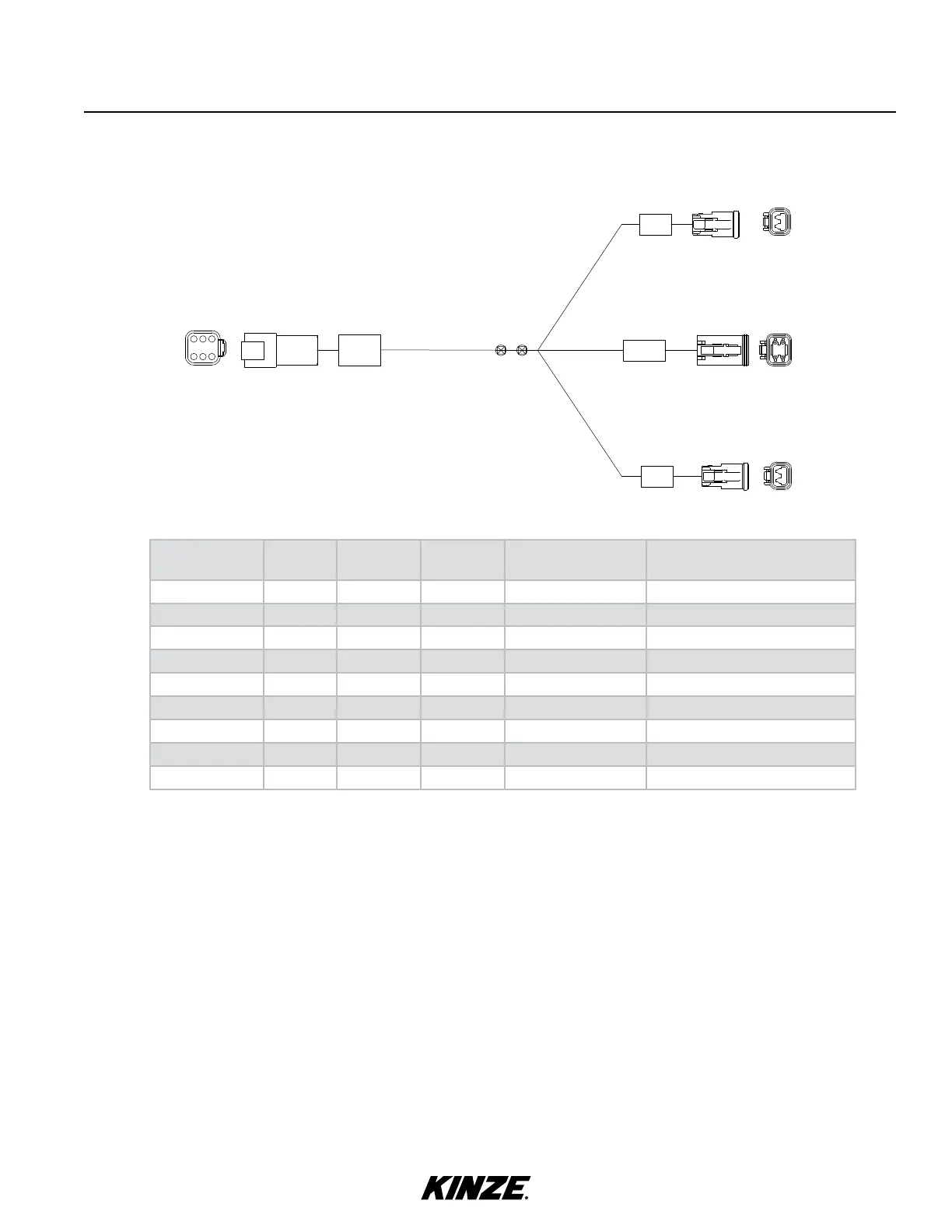

Integrated True Depth Harness
P1
DUMP (A2)
P4
TRUE DEPTH
PART NUMBE
R
REV / DATE
VENDOR ID
P2
PRESSURE
SENSOR
P3
SHUT OFF
(A3)
SP1
SP2
P1
P2
P3
P4
Wire Hookup Chart, P/N A26713
Reference
Designator
From To Gauge Color Function
W1 P4-1 P2-1 18 White HDP Sensor (Signal)
W2 P4-2 P2-2 18 Orange HDP Sensor (Power)
W3 P4-3 P2-3 18 Black HDP Sensor (Ground)
W4 P4-4 SP1 18 Violet HDP PWM (+)
W5 SP1 P1-1 18 Violet HDP PWM Dump Valve (+)
W6 SP1 P3-1 18 Violet HDP PWM Shut Off (+)
W15 P4-5 SP2 18 Brown HDP PWM (-)
W16 SP2 P1-2 18 Brown HDP PWM Dump Valve (-)
W17 SP2 P3-2 18 Brown HDP PWM Shut Off (-)
