Kinze 3605 - Page 206

M0312-01Model 3605
6-72 07/20
Lubrication and Maintenance

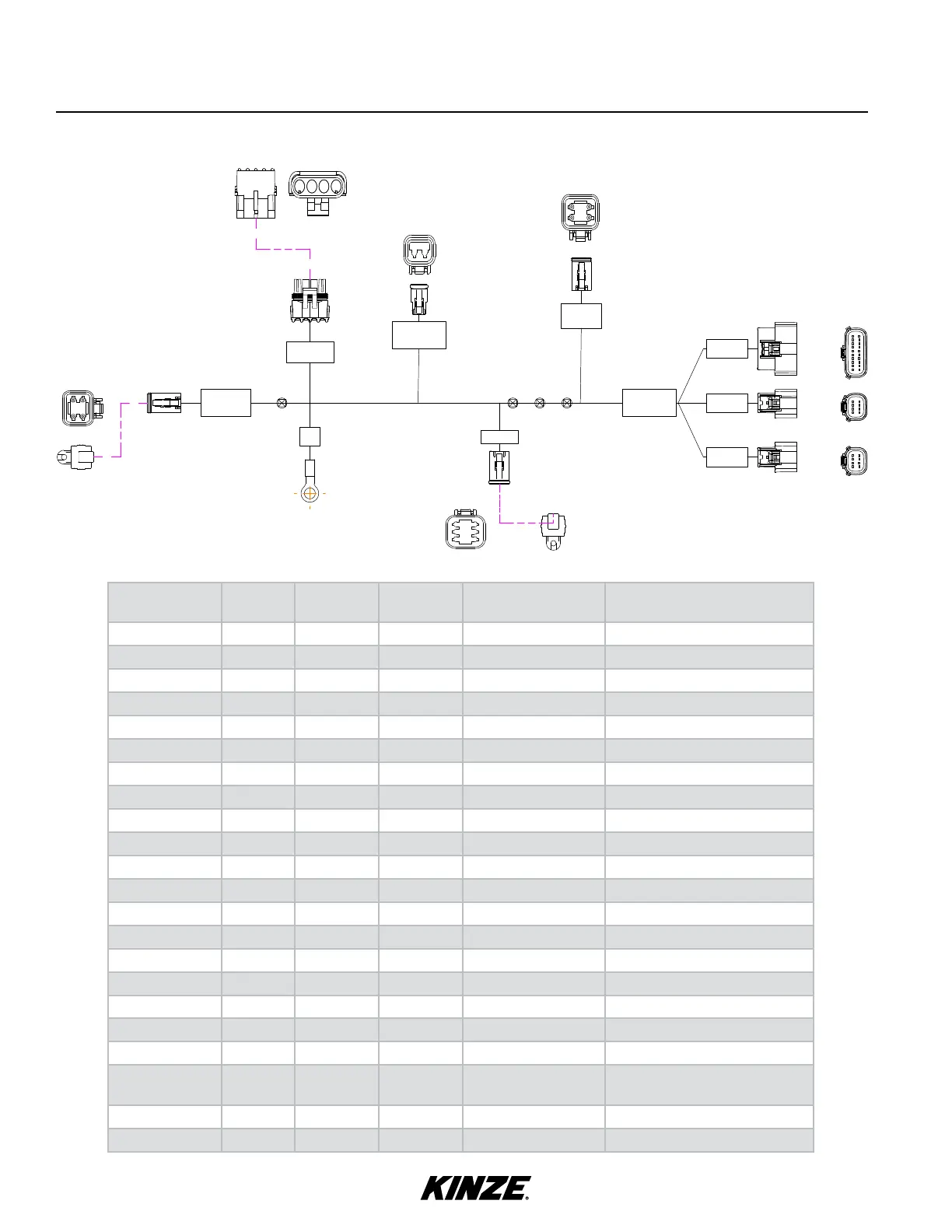

Bulk Fill PDP Harness
P2
BF/DF-J5
P1
BF/DF-J7
P3
BF/DF-J4
P6
BF PRESS
SENSOR
P7
BF FAN
HYD BLOCK
P5
PDP VALVE
P4
PDP PRESS
SENSOR
PART NUMBER
REV / DATE
VENDOR ID
E1
GND
J1
TRUE DEPTH
P1
P2
P3
P6
P7
P5
P4
E1
SP1
J1
SP3 SP4 SP5
Wire Hookup Chart, P/N 10260101
Reference
Designator
From To Gauge Color Function
W1 P1-3 SP3 16 Violet PDP Decrease Solenoid (+)
W2 SP3 P5-C 16 Violet PDP Decrease (+)
W3 SP3 J1-4 18 Violet HDP PWM (+)
W4 P1-4 SP4 16 Brown PDP Decrease Solenoid (-)
W5 SP4 P5-D 16 Brown PDP Decrease (-)
W6 SP4 J1-5 18 Brown HDP PWM (-)
W7 P1-16 SP5 18 White PDP Sensor (Analog Signal)
W8 SP5 P4-4 18 White PDP Sensor (Signal)
W9 SP5 J1-1 18 White HDP Sensor (Signal)
W10 P1-19 SP1 18 Black PDP Sensor (Ground)
W11 SP1 P4-1 18 Black PDP Sensor (Ground)
W12 SP1 J1-3 18 Black HDP Sensor (Ground)
W13 SP1 E1 18 Black Ground
W14 P1-20 P4-2 18 Orange PDP Sensor (Power)
W15 P1-18 J1-2 18 Orange PDP Sensor (Power)
W16 P2-1 P5-A 16 Red PDP Increase Solenoid (+)
W17 P2-2 P5-B 16 Yellow PDP Increase Solenoid (-)
W18 P2-5 P6-2 18 White BF Pressure Sensor (Power)
W19 P2-6 P6-1 18 Black BF Pressure Sensor (Ground)
W20 P2-7 P6-4 18 Yellow
BF Pressure Sensor (Analog
Signal)
W21 P3-1 P7-1 16 Red BF Fan Solenoid (+)
W22 P3-2 P7-2 16 Black BF Fan Solenoid (-)
