Kinze 3605 - Page 207

Model 3605M0312-01
07/20 6-73
Lubrication and Maintenance

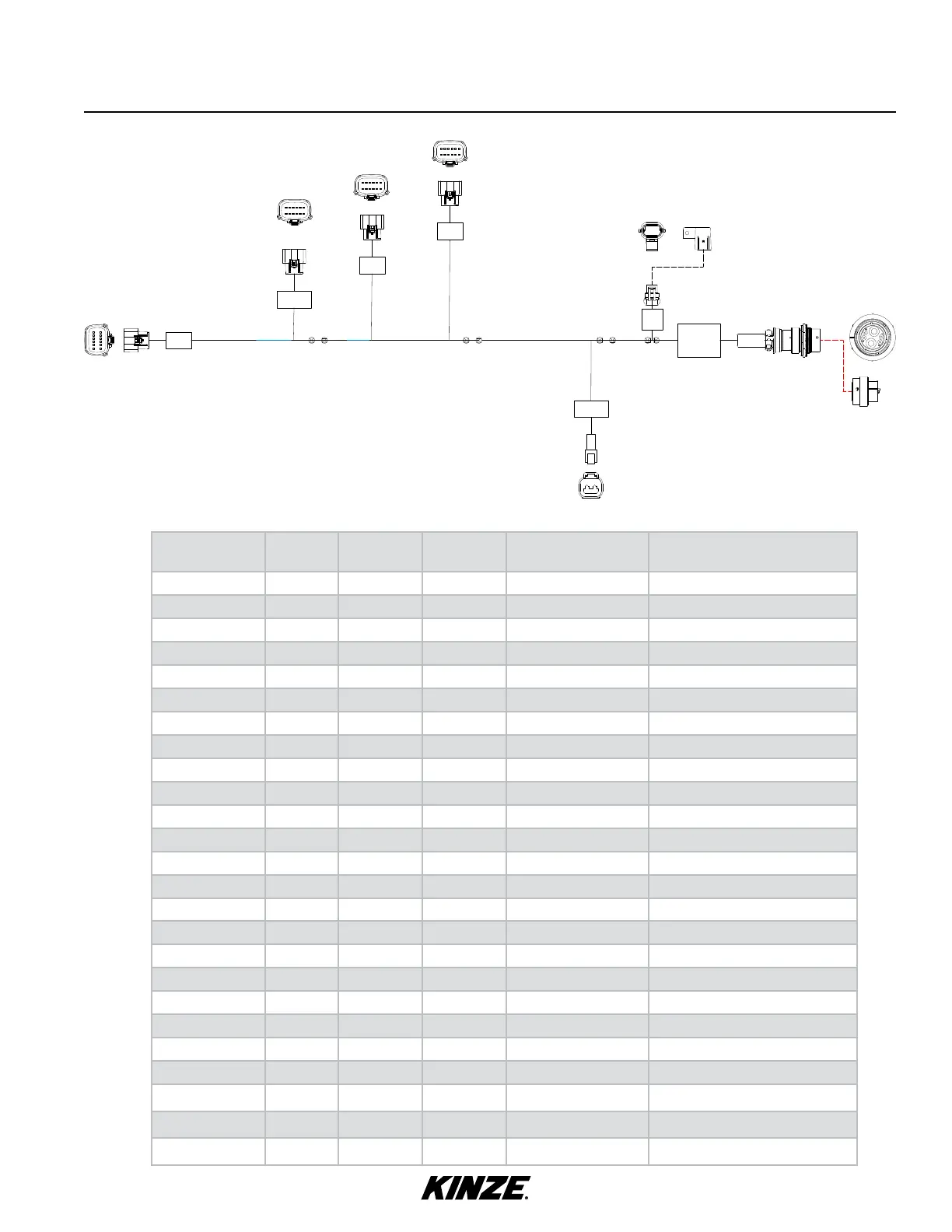

12V Power Harness
P1
IPR-J10
P2
BF/DF-J3
P3
ROTATE-J3
P4
RAISE-J3
P5
WORKLIGHT
PART NUMBER
REV / DATE
VENDOR ID
J1
SP5
SP6
SP3
SP4
SP1
SP2
SP7
SP8
XF1
FUSE
(30A)
P5
P3
P4
P2
P1
J1
Wire Hookup Chart, P/N 10152701
Reference
Designator
From To Gauge Color Function
W1 J1-3 SP7 6 Red 12V DC (Unprotected Power)
W2 SP7 XF1-1 12 Red 12V DC (Unprotected Power)
W3 XF1-2 SP8 12 Red 12V DC (Power)
W4 SP8 SP1 6 Red 12V DC (Power)
W5 J1-4 SP2 6 Black 12V DC (Ground)
W6 SP1 P5-2 16 Red Worklight (Power)
W7 SP1 SP3 8 Red 12V DC (Power)
W8 SP2 P5-1 16 Black Worklight (Ground)
W9 SP2 SP4 8 Black 12V DC (Ground)
W10 SP3 P1-1 18 Red IPR (Power)
W11 SP3 P2-1 16 Red BF Dry Fertilizer IPN (Power)
W12 SP3 P2-3 16 Red BF Dry Fertilizer IPN (Power)
W13 SP3 SP5 12 Red AUX IPN (Power)
W14 SP4 P1-2 18 Black IPR (Ground)
W15 SP4 P2-2 16 Black BF Dry Fertilizer IPN (Ground)
W16 SP4 P2-4 16 Black BF Dry Fertilizer IPN (Ground)
W17 SP4 SP6 12 Black AUX IPN (Ground)
W18 SP5 P3-1 16 Red Rotate IPN (Power)
W19 SP5 P3-3 16 Red Rotate IPN (Power)
W20 SP5 P4-1 16 Red Raise IPN (Power)
W21 SP5 P4-3 16 Red Raise IPN (Power)
W22 SP6 P3-2 16 Black Rotate IPN (Ground)
W23 SP6 P3-4
16
Black Rotate IPN (Ground)
W24 SP6 P4-2
16
Black Raise IPN (Ground)
W25 SP6 P4-4
16
Black Raise IPN (Ground)
