INSTALLATION
MOUNTING of JUNCTION BOX (DJB-540)
The mounting location should be well ventilated and dry.
Avoid locations subject to watersplash or rain. Allow enough service clearance.
The Cable Junction side should be at the bottom side or the left side.
Components
Junction Box 1
Truss Tapping Screw 4
(M5x20)
Use the Junction Box (DJB-504) Mounting Kit to joint the Junction Box to the Hull unit if
desired.
Option
OP-700: Junction Box Mounting Kit
Refer to page 96

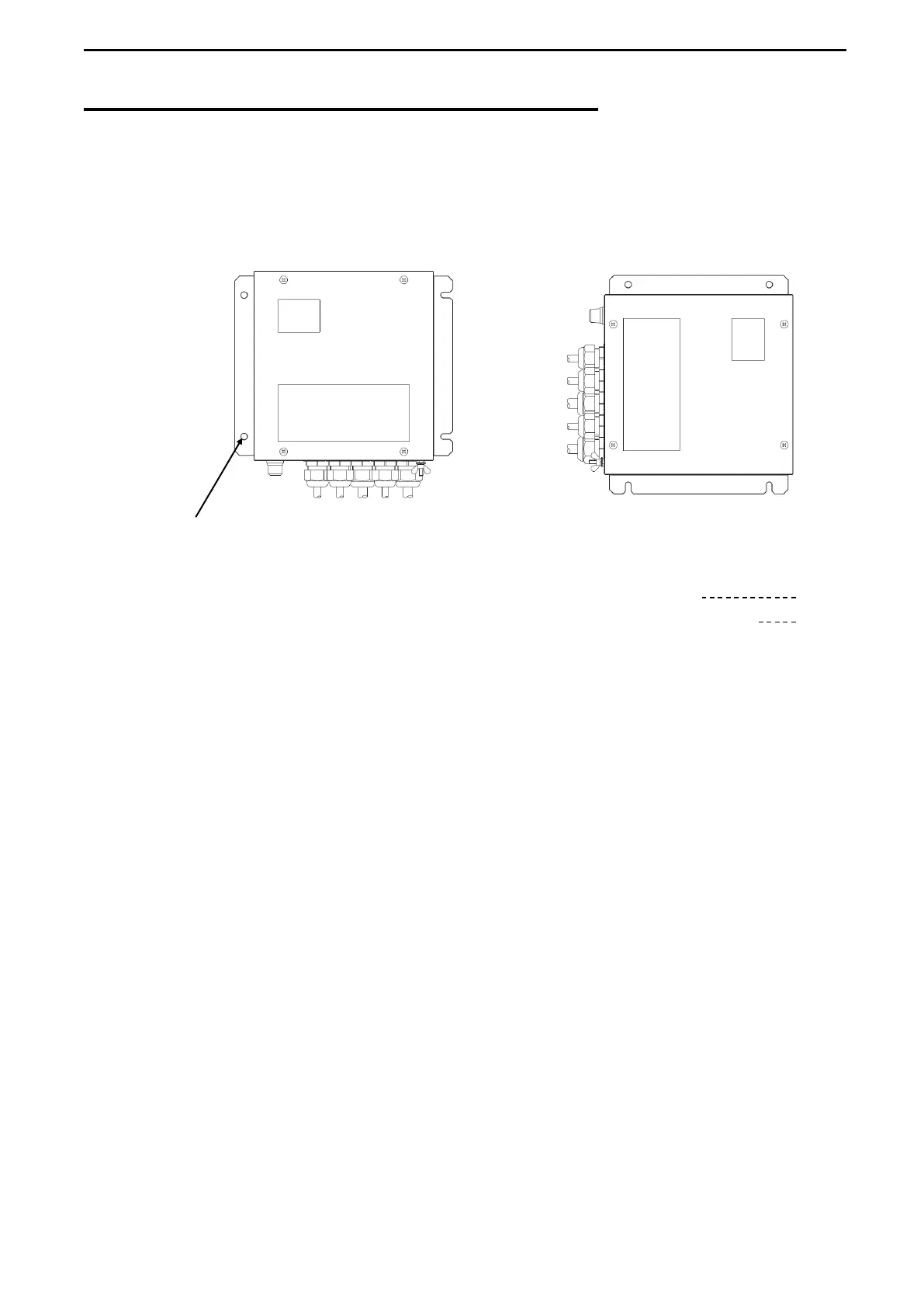

Cable Junction at the left
Cable Junction at the bottom
