Koden KDS-5000BB - Sonar Mode Operation

- 37 -
BASIC OPERATION

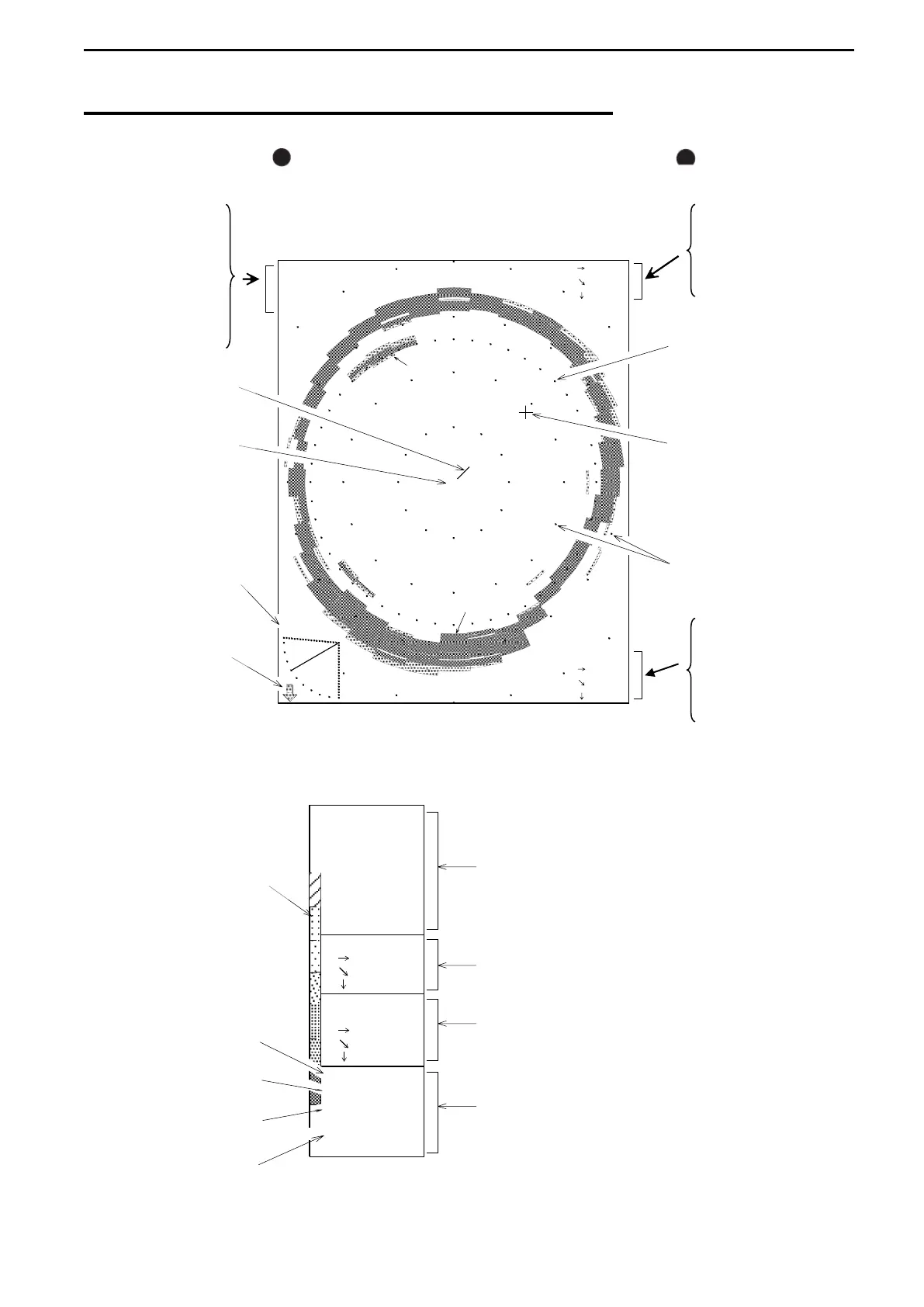

SAMPLE DISPLAY of SONAR MODE
Select MODE KNOB ( ) to display SONAR MODE or MODE KNOB ( ) to display
OFF-CENTER MODE.
Ｒ １６０ｍ
９９．３ｍ
４９．７ｍ
Ｓ ３６０゜
ＩＲ－ＯＮ
６５．２ｍ
７５．３ｍ
＋
４５゜
３７．７ｍ
８６．０ｍ
Ｂ ０゜
ECHO
＋
SE A BOTT OM
Ｔ－３０゜
MARKER
４９．７ｍ
CURSOR
＋ ４５゜
７５．３ｍ
RANGE
１６０ｍ
BEARING
０゜
SECTOR
－３０゜
３６０゜
ＩＲ－ＯＮ
TILT
８６．０ｍ
９９．３ｍ
３７．７ｍ
６５．２ｍ
POWER
WATER
SPEED
２４ . ３ V
２７ . ４゜ C
１６ . ０ kt
34 ゜ 33. 40'N
137 ゜ 03. 84'E
#1
RANGE
BEARING
SECTOR
INTERFERENCE
REJECTION
BEARING LINE
SHIP’S POSITION
#2
HORIZONTAL DISTANCE
SLANT DISTANCE
DEPTH
MARKER
CROSS CURSOR
SCALE
#3
CURSOR BEARING
HORIZONTAL DISTANCE
SLANT DISTANCE
DEPTH
POWER SUPPLY VOLTAGE
WATER TEMP.
SPEED
SHIP’S POSITION IN
LATITUDE/LONGITUDE
When the Sub menus other than
INFORMATION selected,
They are displayed in the upper left of the
Sonar Display (#1). Tilt angle is displayed in
the lower left.
“IR-ON” is not displayed when
INTERFERENCE REJECTION OFF selected.
They are displayed in the upper right of Sonar
Display (#2).
They are displayed in the lower right of Sonar
Display (#3).
They are display in the lower right corner of
Sub-Display.
An External Navigator is required to display the
ship’s position and the speed.
TILT ANGLE
TRANSDUCER UNIT
POSITION
INFORMATION DISPLAY
SHIP’S POSITION
RAINBOW PATTERN
SHIP’S POSITION
