KEYS
POWER ON/OFF KEYS
ON key
Press this key to turn on the power. The Transducer unit is automatically lowered.
The sensor lamp on the Operation unit lights while the Transducer unit is being lowered.
The sign “Please wait” appears on the bottom of the screen. The sonar operation starts
after the sign disappears.
OFF key
Press this key to turn off the power. The Transducer unit is automatically raised.
The sign “Please wait” appears on the bottom of the screen. The power is turned off after the
sign disappears.
The sensor lamp ( ) is off after the Transducer unit is retracted into the TD tank.
Do not turn off the power on the Hull unit until the sensor lamp is off.
HOIST/LOWER KEYS
↑ : HOIST KEY / ↓ : LOWER KEY
The Hoist and Lower keys raises and lowers the Transducer unit while operating the
KDS-5000BB.
Pressing the Hoist key raises the Transducer unit and the mark on the lower left screen
changes into the up arrow (↑). The sensor lamp is off after the retraction of the Transducer
unit is completed.
Pressing the Lower key lowers the Transducer unit, the mark changes into the down
arrow (↓) and the sensor lamp lights.
Down the ship’s speed and press the Lower key in case the Transducer unit is retracted by
the function “AUTO RETRACT”.
NOTE!
[ X ] in red appears on the left corner of the screen in case of the malfunction
of hoisting/lowering of the Transducer unit.

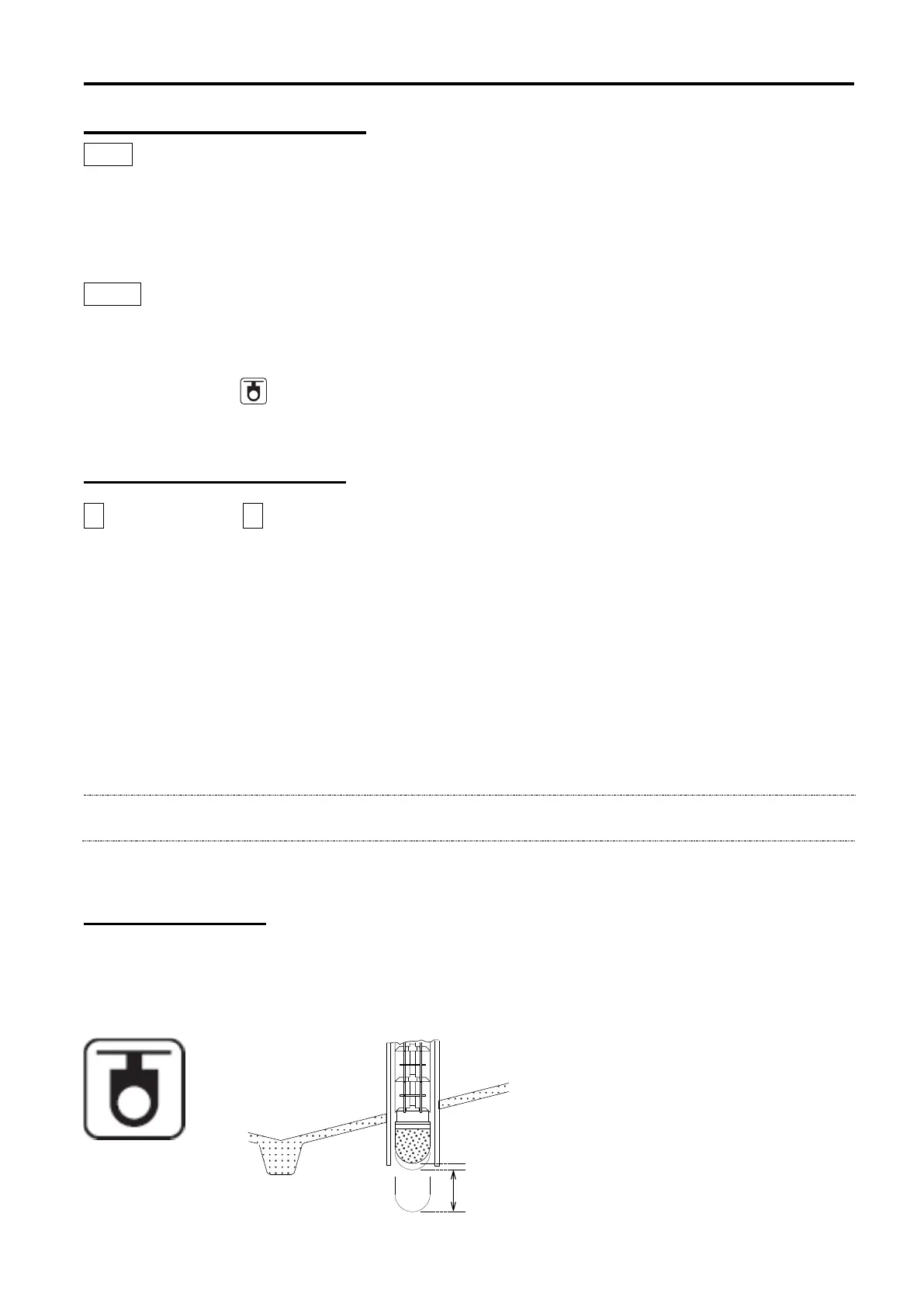

SENSOR LAMP
The sensor lamp lights while the Transducer unit is being lowered.
Do not turn off the power on the Hull unit until the sensor lamp is off.
SENSOR LAMP
The sensor lamp lights while the Transducer unit is in this
range.
