Koden KDS-5000BB - Processor Unit (Rear Side)

- 29 -
INSTALLATION

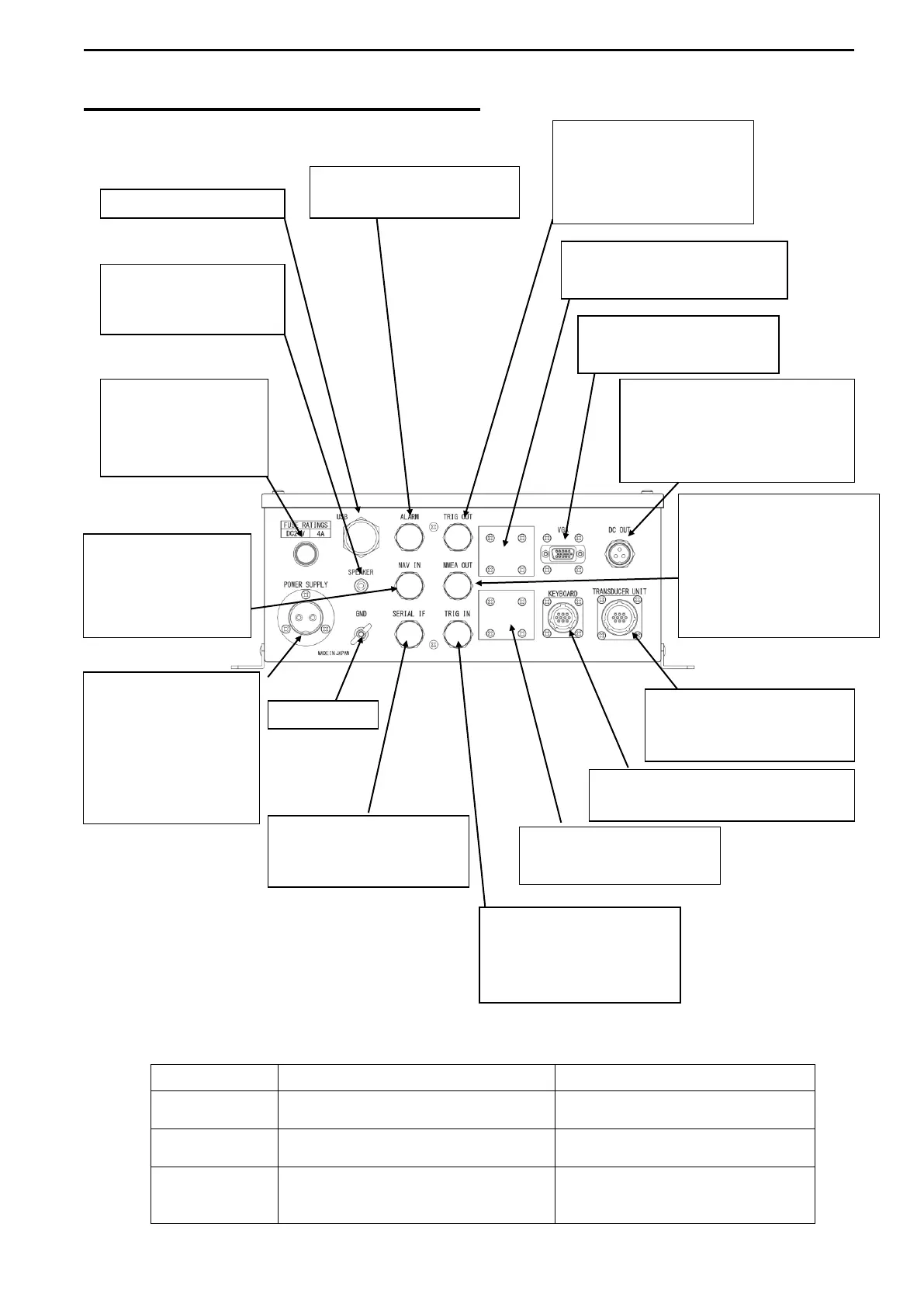

PROCESSOR UNIT (REAR SIDE)
The following optional terminals are available.
・OPTION
OPTION No.
Description
ESR-1809-SET
Remote Controller Set
Connects this terminal when
Remote Controller used.
OP-360
XGA Connecting Cable
Connects this terminal when
External Monitor used.
OP-190
Trigger Output Connecting Cable
Connects this terminal when
Trigger output to External Echo
Sounder.
USB Terminal for using USB
Power Output Terminal (3P)
conncets an external monitor Suzuki
specified. Output:12VDC
No.1: + No.2: shield No.3: -
Sounder Connecting Terminal
(7P) connects an external Echo
Sounder.
Earth Terminal
Operation unit Connecting Terminal (10P)
connects the Operation unit.
VGA Output Terminal
connects an external monitor
Trigger Output Terminal (3P)
outputs trigger signals
synchronizing to an external
echo sounder.
NMEA Output Terminal (6P)
outputs the data of depth and
water temperature.
The Latitude/Longitude of the
Target is output when an external
Navigator connected.
Trigger Input Terminal (8P)
Input trigger signals
synchronizing to an external
echo sounder.
Communication Terminal (10P)
connects I/F cable from the
Junction Box
を接続します。
Remote Controller Terminal
connects a remote controller
Fuse Holder
Use the specified fuse
as follows,
24V→4A.
Power Input Terminal
connects the DC power
supply for activating the
Display Unit.
Use the voltage in the range
21.6 to 31.2Volts.
Speaker Terminal
connects an optional speaker.
(4Ω).
接続します。（別売）
Alarm Terminal (2P)
relay contact for an external alarm
NAV-IN Terminal (5P)
connects an external
navigator or NMEA-0183
signal input.
VGA Output Terminal (OPTION)
connects an external monitor
