Koden KDS-5000BB - Assembling and Mounting

- 20 -
INSTALLATION
ASSEMBLING and MOUNTING of Hull unit (DHU-530)

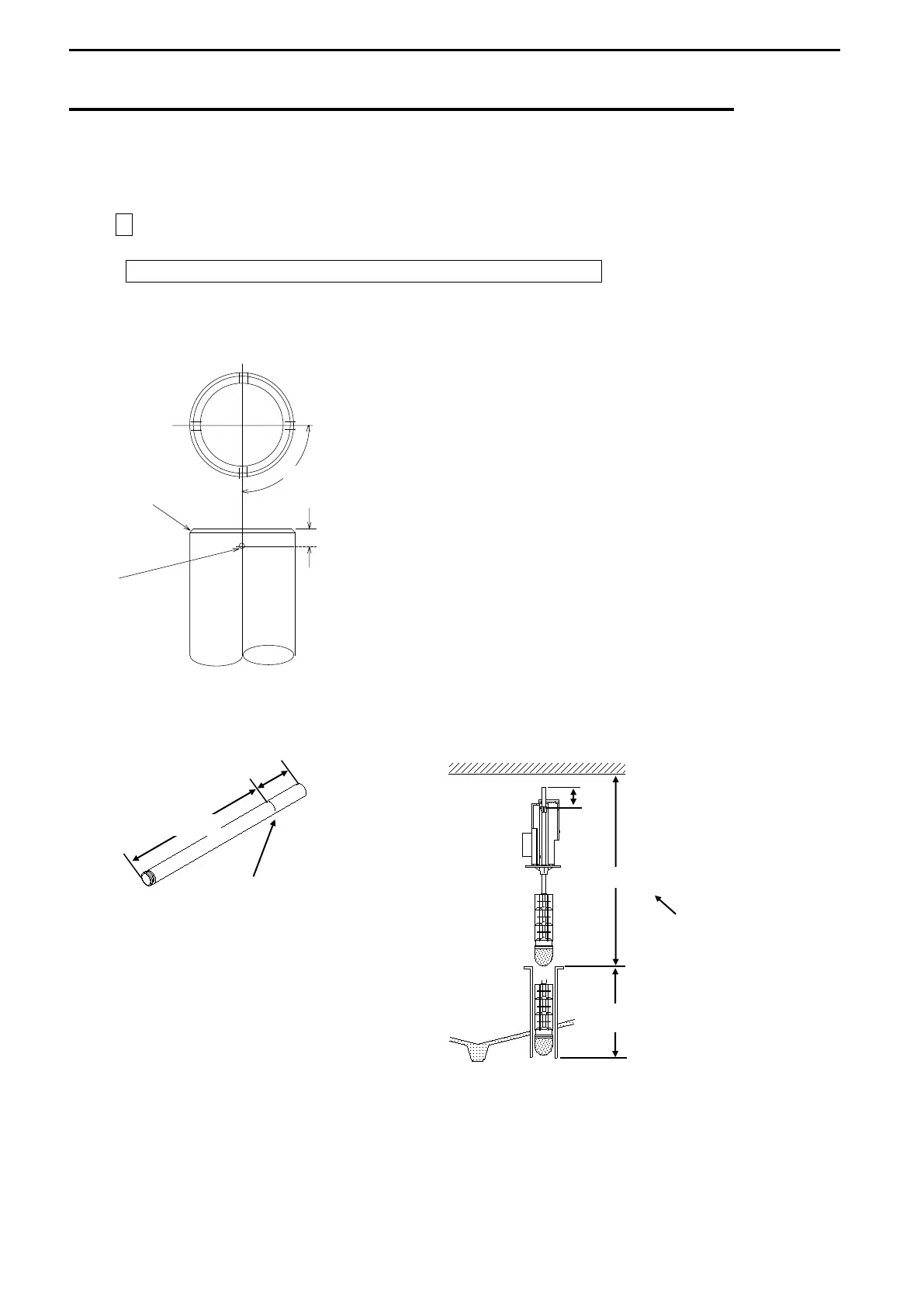

1. TD SHAFT
Calculate necessary length of TD shaft (Standard length of 1681mm) from the length of TD
tank (Lt) and cut off the unnecessary portion.
TD SHAFT LENGTH = TD TANK LENGTH (Lt) + 181mm
2. TD SHAFT ADJUSTMENT
5 mm
90°
In case of sufficient space above the TD shaft it can be used without cutting.
Yt
Lt: (min.670)
Lt+Yt+460
MARK
Lt+160
Yt
Mark to the point of Lt+160.
The upper end of Joint Arm
should be united with the Mark
and tighten them.
them.
Mark and tighten it.
When the space above
the TD shaft is equal
to this, the TD shaft
may be used without being cut.
1) Cut the TD shaft to the required length,
TD tank length (Lt) + 181mm.
2) Deburr the cut piece and taper the edge
(1mm).
3) Bore 4 holes in the TD shaft as follows,
- every 90 degrees
- 5mm from the cut end of the pipe
- hole size ofφ3.4
- set a tapping screw (M4) on the hole each
Deburr and taper the edge
(1mm).
M4 Thread
Unit: mm
