- 33 -
INSTALLATION

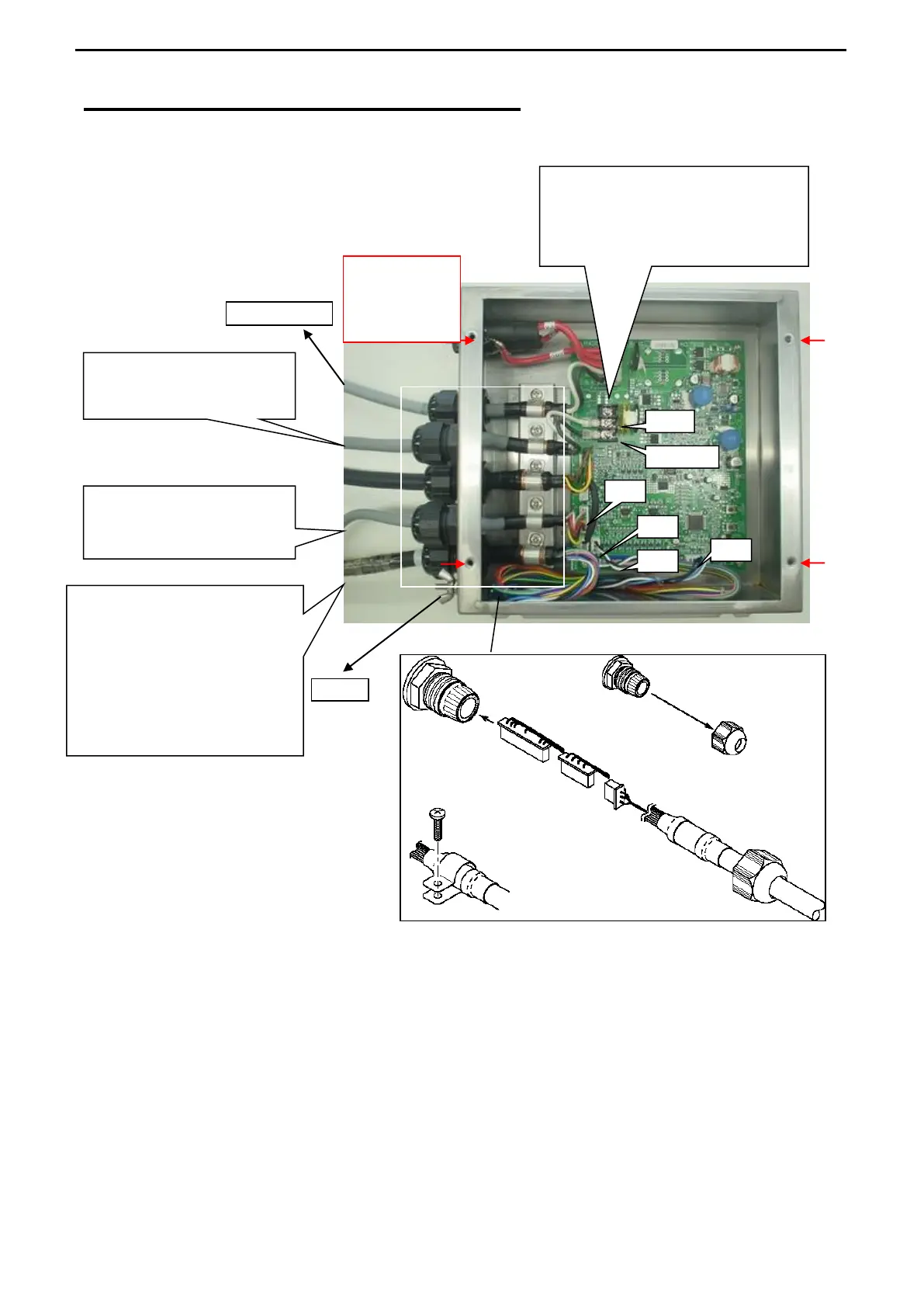

WIRING JUNCTION BOX (DJB-540)
HOIST MOTOR CABLE
connects J2 on the board.
LIMIT SWITCH CABLE
connects 6P plug to J 7
on the board.
TRANSDUCER UNIT CABLE
connects 3P plug to J 9 on
the board.
connects 5P plug to J 6 on
the board.
connects 10P plug to J 5 on
the board.
J 2
connects the white line to
24V according to the voltage of the
battery.
J 7
J 9
J 5
J 6
BLACK
24V
4 BINDING
SCREWS
(M4X8) 4pcs
BATTERY
GND
