- 39 -
BASIC OPERATION

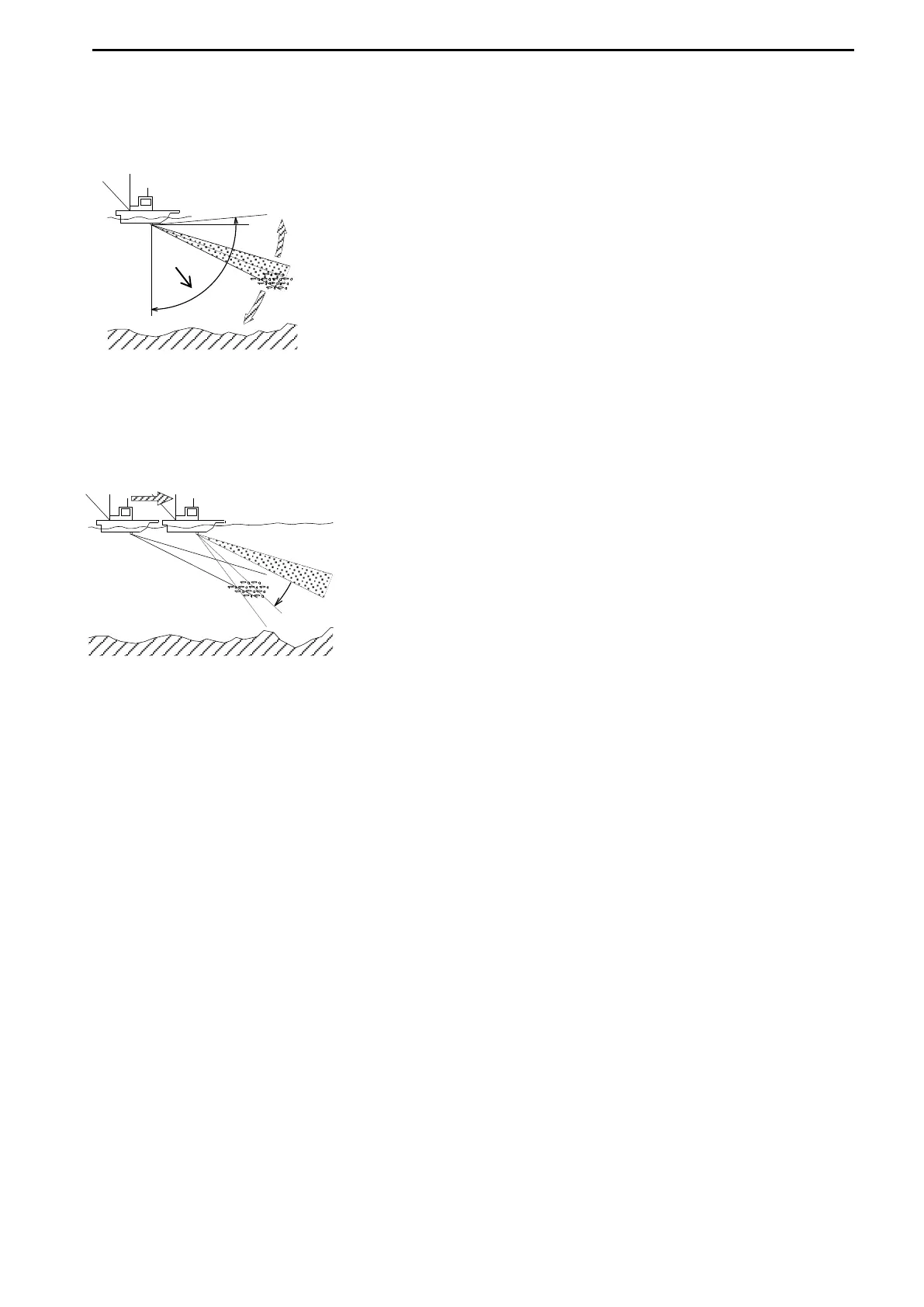

The Tilt angle can be set in increments of 1° from 0° to 5° to 0° to -90°.
All directions from extremely shallow waters to deep areas can be searched.
Adjust the tilt angle considering the conditions such as ship’s speed and water depth.
Tilt angle
setting range
SEA BOTTOM
The below drawing illustrates the fish school is displayed on the screen when the ship
reaches the point A, but it is not displayed at the point B even if the same tilt angles are set.
Select an appropriate tilt angle in order to display the fish school at the point B.
SEA BOTTOM
The setting of the tilt angle is available in the Sonar Mode, Bottom-Scan Mode or Sounder
Mode. Refer to page 89
To Next Page
