- 59 -
FUNCTION SETTINGS

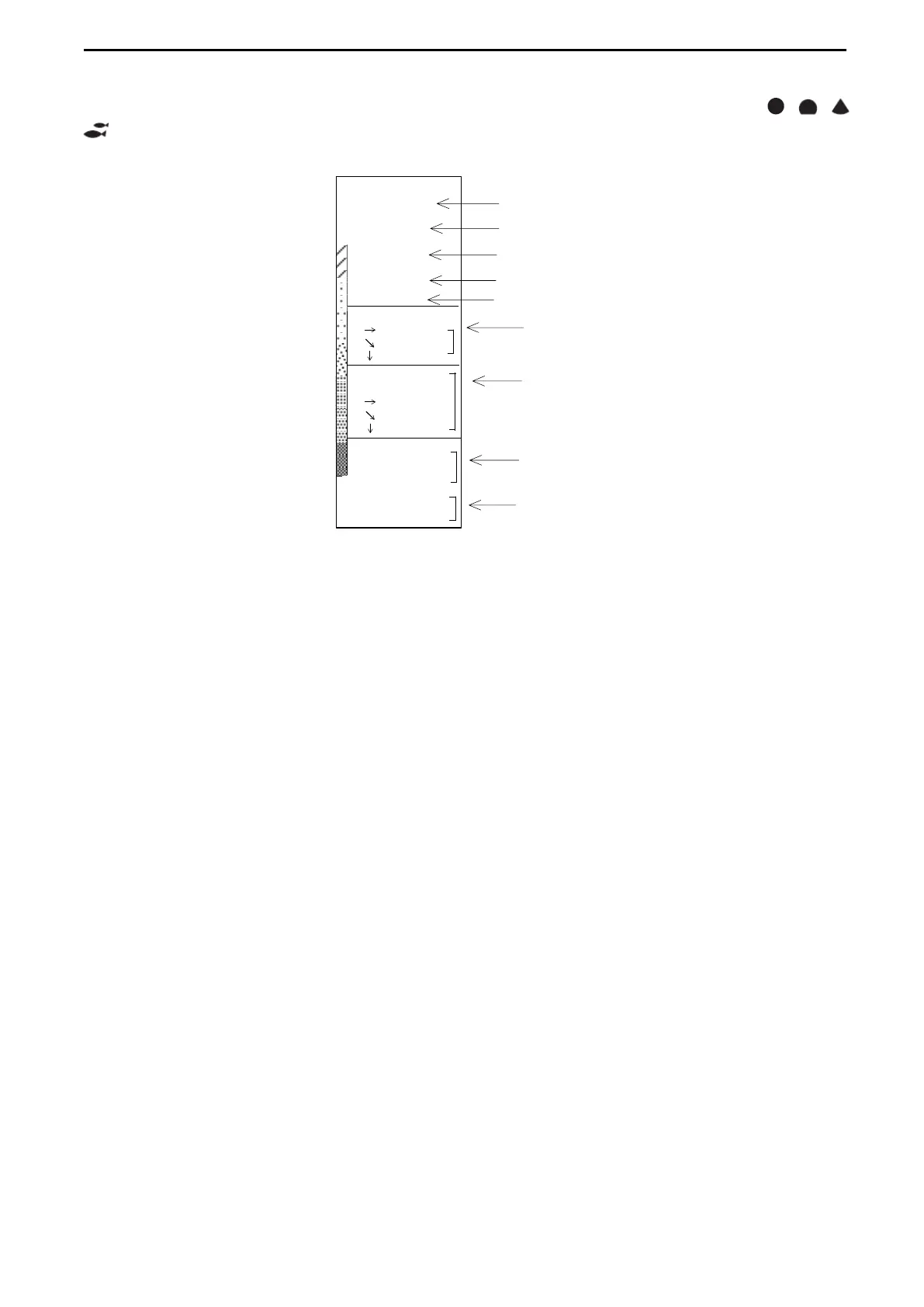

2) INFO (INFORMATION)
This sub menu “INFO” can be displayed when one of the Mode Knobs, “
”selected.
a)
Displays the selected range by using the Range Knob desired.
b)
Displays the selected bearing angle by using the Bearing Key.
c)
Displays the selected sector angle by using the Sector Knob.
d)
Displays the selected tilt angle by using the Tilt Key.
e)
It appears only when Interference Rejection-ON selected.
f)
Displays the horizontal distance, slant distance and depth to the marker.
No data appears when Bottom-Scan mode set.
g)
Displays the horizontal distance, slant distance and depth to the cursor.
No data appears when Sounder mode set.
h)
Displays the power supply voltage and the temperature.
i)
Displays the ship’s speed and own ship’s position in latitude/longitude.
Note that an External Navigator is required to display these values.
f
g
h
i
a
b
c
d
e
１３７゜０３．８４’Ｅ
３４゜３３．４０’Ｎ
ＩＲ－O N
MARKER
８６．０ｍ
９９．３ｍ
４９．７ｍ
CURSOR
十 ４５゜
６５．２ｍ
７５．３ｍ
３７．７ｍ
RANGE
１６０ｍ
BEARING
０゜
SECTOR
３６０゜
TILT
－３０゜
WATER ２７．４゜Ｃ
SPEED
POWER ２４． 3 V
１６．０ｋｔ
