S748-772 Instructions Manual | 11 Expansions

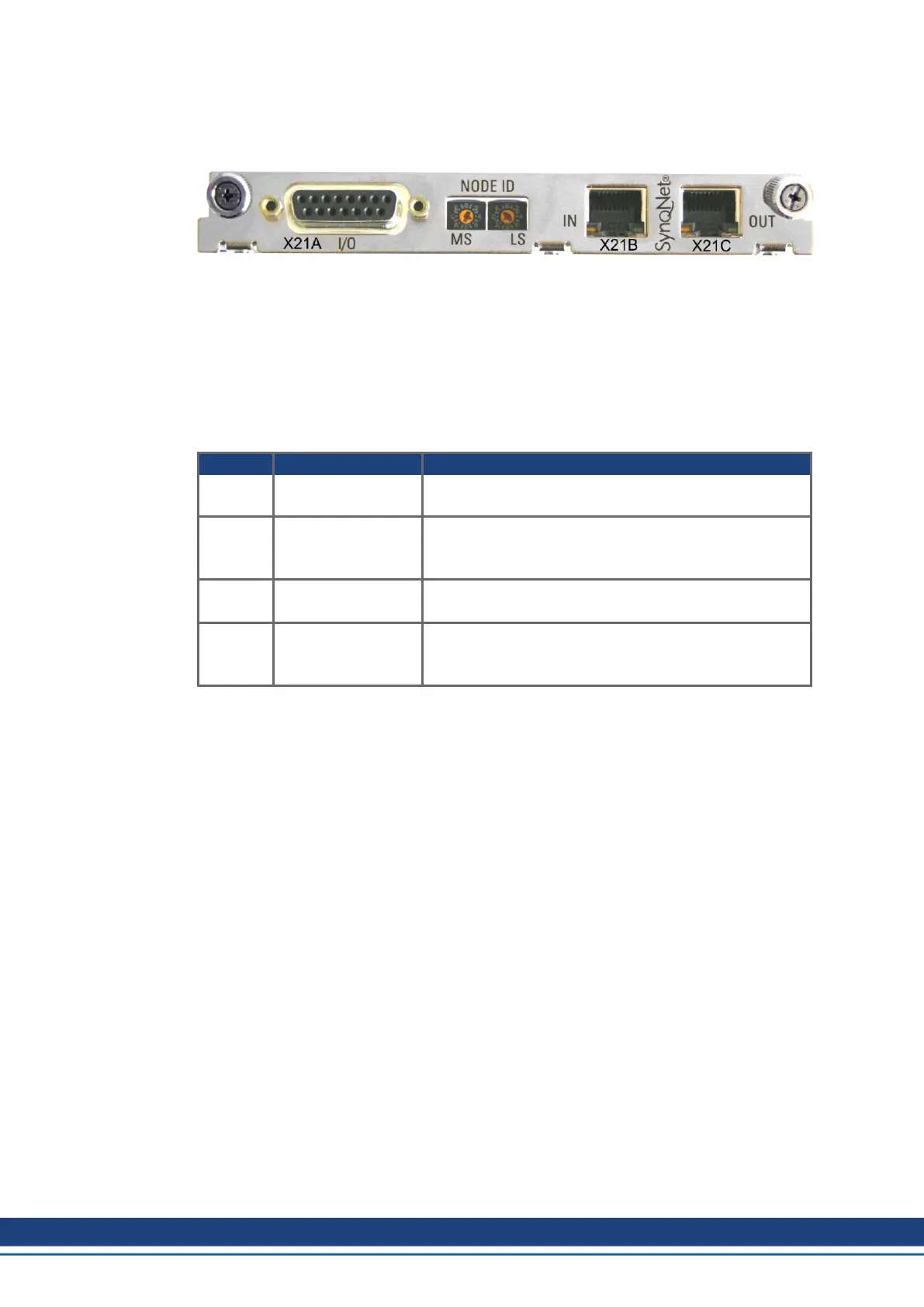

11.1.6 Expansion card -SYNQNET-
This section describes the SynqNet expansion card for S700. Information on the range of
functions and the software protocol can be found in the SynqNet documentation.
11.1.6.1 NODE ID Switch
With these hexadecimal switches you can set the main and low significant bytes of the Node
ID separately. SynqNet does not require an address for correct operation in the network, how-
ever in some machines this can be a convenient way of identifying build options to the applic-
ation program.
11.1.6.2 NODE LED table
LED# Name Function
LED1 LINK_IN
ON = receive valid (IN port)
OFF= not valid, power off, or reset.
LED2 CYCLIC
ON = network cyclic
BLINK = network not cyclic
OFF = power off, or reset
LED3 LINK_OUT
ON = receive valid (OUT port)
OFF = not valid, power off, or reset
LED4 REPEATER
ON = repeater on, network cyclic
BLINK = repeater on, network not cyclic
OFF = repeater off, power off, or reset
11.1.6.3 SynqNet Connection, Connector X21B / X21C (RJ-45)
Connection to the SynqNet network via RJ-45 connectors (IN and OUT ports) with integrated
LEDs.
136 Kollmorgen | kdn.kollmorgen.com | July 2019
