S748-772 Instructions Manual | 11 Expansions
11.2 Expansion cards for slot 2

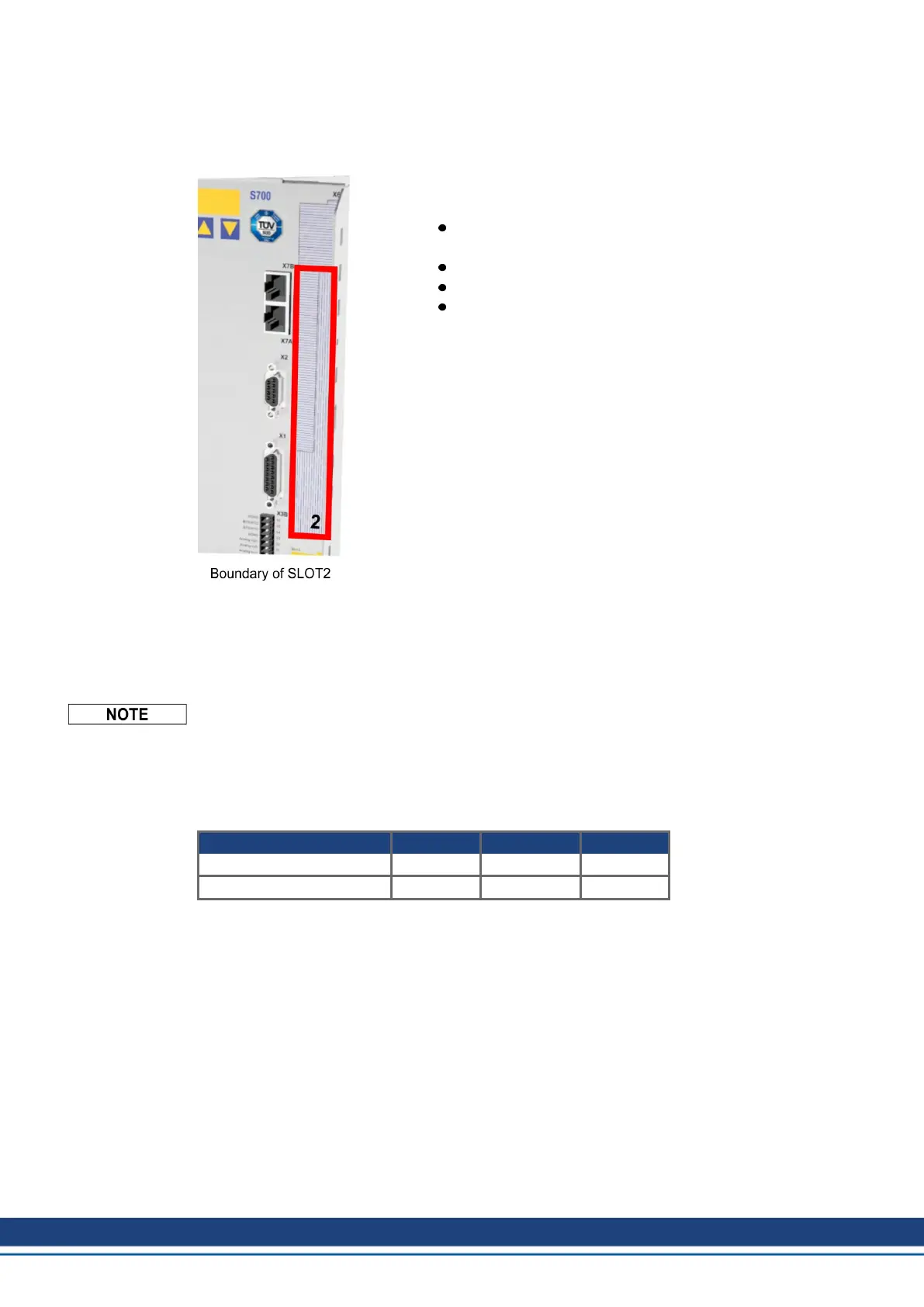

11.2.1 Guide to installation of expansion cards in slot 2
The method of installing the expansion card in slot 2 is
the same as that described for slot 1 (➜ # 126).
Remove the lower crosshatched area of the front film
(labeled slot 2).
Lever out the cover plates under the film.
Push the expansion card into the slot.
Use the screws provided to fasten the front plate of
the expansion card in place.
11.2.2 Option "F2", controlled Fan
To reduce noise emission the servo amplifiers can be ordered with the built-in option card F2.
This option cannot be built-in later. The F2 option card fits to slot2 or 3 (see part number
scheme on (➜ # 26)).
Option card F2 can be used combined with a card in slot 1 even if it is plugged to slot 2!
Function
The fan is switched on and off or runs with 50% rated speed depending on temperature. That
reduces the average noise emission.
Switching temperature
Monitoring Fan off Fan ~50% Fan on
Ambient temperature < 55°C ~ 58°C > 65°C
Heat sink temperature < 58°C ~ 68°C > 80°C
142 Kollmorgen | kdn.kollmorgen.com | July 2019
