Kollmorgen S70101 User Manual

S748-772 Instructions Manual | 9 Electrical Installation

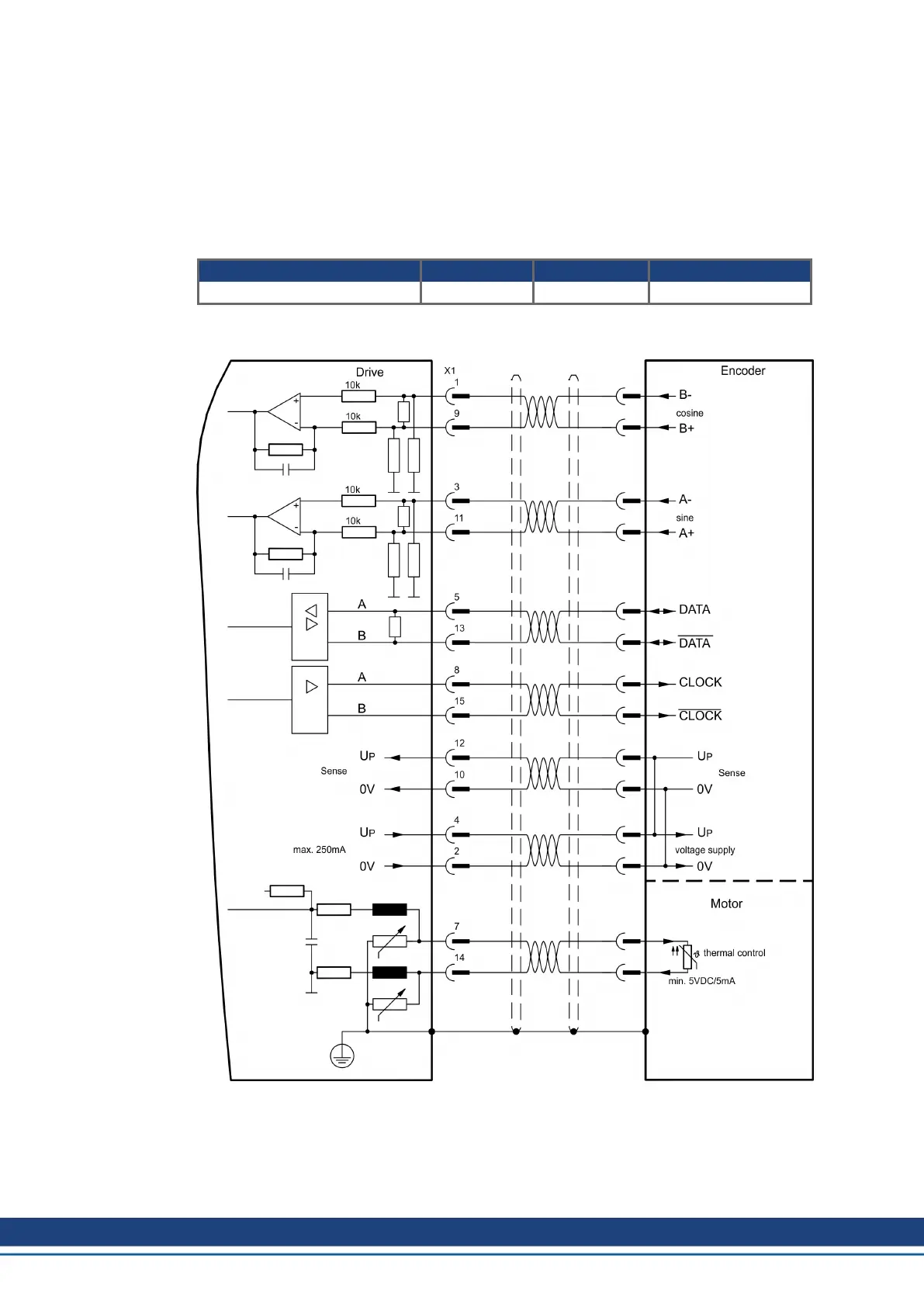

9.12.9 Sine Encoder with SSI (X1)
Wiring of sine-cosine encoder with SSI interface as a linear feedback system (primary, (➜ #
74)).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If cable
lengths of more than 50 m are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE
SinCos SSI 5V linear 26 - -
Switch on supply voltage for the encoder at X1: set ENCVON to 1.
84 Kollmorgen | kdn.kollmorgen.com | July 2019

Kollmorgen S70101 Specifications

General

Series	S700
Continuous Output Current	10 A
Input Voltage	24 VDC
Output Current	10 A
Communication Interface	EtherCAT, CANopen
Protection Class	IP20
Operating Temperature	0 to 40 °C
Storage Temperature	-25 to 70 °C
Humidity	5% to 95%, non-condensing
