S748-772 Instructions Manual | 9 īīElectrical Installation

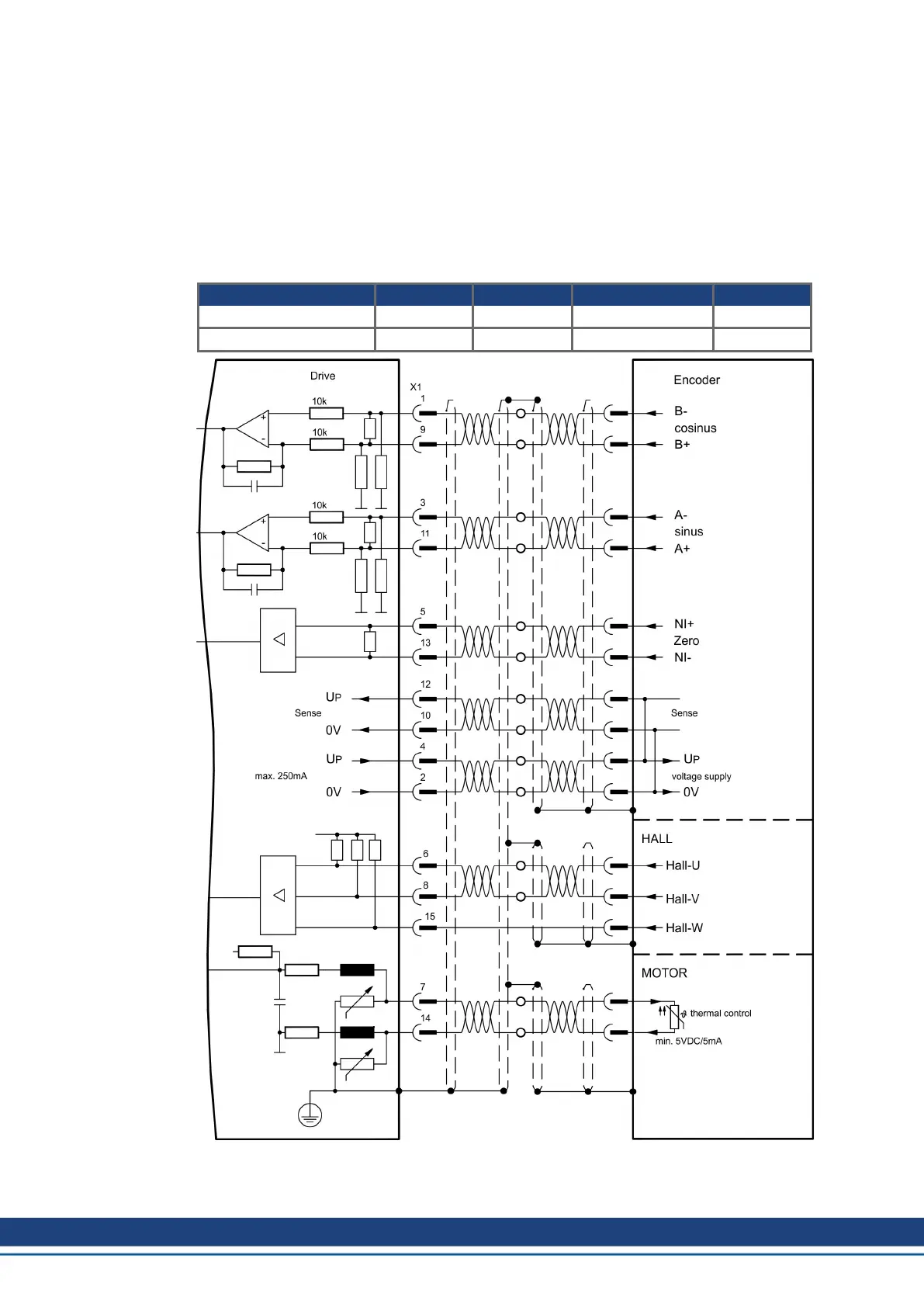

9.12.11 Sine Encoder with Hall (X1)
Feedback devices (incremental or sine-cosine), which don't deliver an absolute information
for commutation, can be used as complete feedback system combined with an additional
Hall encoder (primary, (ā # 74)) .
The thermal control in the motor is connected to X1 and evaluated there.
All signals are connected to X1 and evaluated there. If cable lengths of more than 25 m are
planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE Up
SinCos 5V mit Hall 5 - - 5V +/-5%
SinCos 12V mit Hall 6 - - 7.5...11V
86 Kollmorgen | kdn.kollmorgen.com | July 2019
