S748-772 Instructions Manual | 9 Electrical Installation
9.3.1 Shielding connection to the front panel
Remove the outside shroud of the cable and
the shielding braid on the desired core
length.
Secure the cores with a cable tie.
Remove the outside shroud of the line on a
length from for instance 30 mm without dam-
aging the shielding braid.
Strip all wires and fit wire end ferrules.

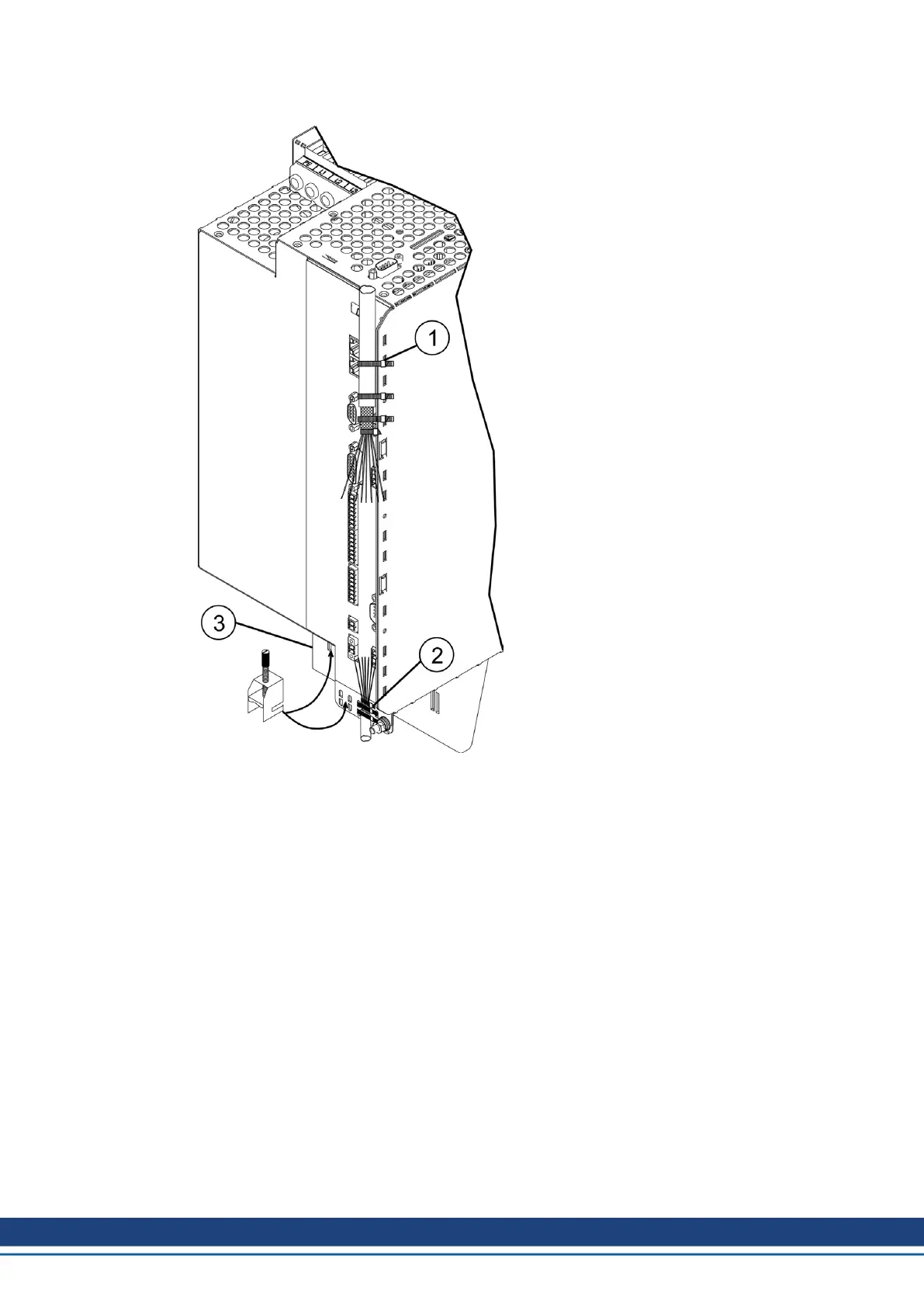

Use cable ties to attach the cable to the side
(1) or bottom (2) shroud of the servo amp-
lifier, securing the braided shield of the cable
to the shroud of the servo amplifier with a
cable tie.
Alternatively you can use shield connection
terminal clamps (see accessories manual).
These hook into the bottom shroud and
ensure optimum contact between the shield
and the shroud.
Wire the plug-in terminal blocks as shown in
the connection diagram.
The motor cable shield is connected via a
shield connection clamp to the bottom shield-
ing plate (3). Clamp and shielding plate are
part of delivery.
62 Kollmorgen | kdn.kollmorgen.com | July 2019
