S748-772 Instructions Manual | 9 Electrical Installation

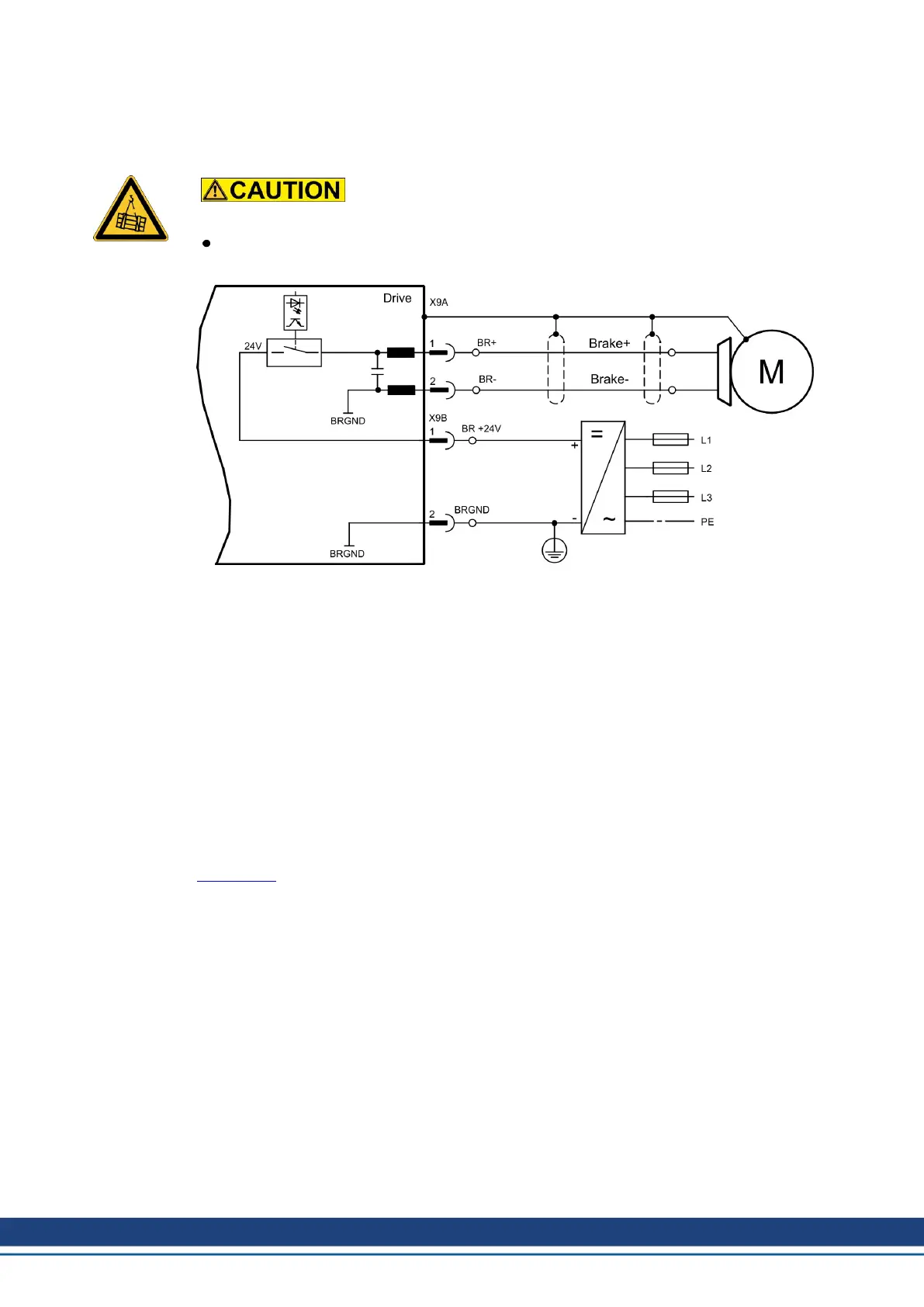

9.10.2 Motor holding brake connection (X8, X9)
The motor holding brake can be controller by the servo amplifier. An external 24V supply
voltage delivers the required electrical power for the connected brake.
No functional safety!
Serious injury could result when a suspended load is not properly blocked.
An additional mechanical brake is required for functional safety, which must be safely
operated, e.g. via the Safety Card S1-2 (➜ # 155).
Observe the requirements to auxiliary voltage supply (➜ # 31).
9.11 Feedback systems
Every closed servo system will normally require at least one feedback device for sending
actual values from the motor to the servo drive. Depending on the type of feedback device
used, information will be fed back to the servo amplifier using digital or analog means. Up to
three feedback devices can be used at the same time. S700 supports the most common
types of feedbacks whose functions must be assigned with the parameters
FBTYPE DRIVEGUI.EXE screen page FEEDBACK, primary Feedback (➜ # 75)
EXTPOS Screen page POSITION CONTROLLER, secondary position (➜ # 75)
GEARMODE Screen page ELECTRONIC GEARING, encoder control (➜ # 94)
in the setup software. Scaling and other settings must always be made here.
For a detailed description of the ASCII parameters, please refer to the DRIVEGUI.EXE
Online-Help.
74 Kollmorgen | kdn.kollmorgen.com | July 2019
