11.2.3.1.2 ROD (AquadB) 5V with Hall (X5, X1)

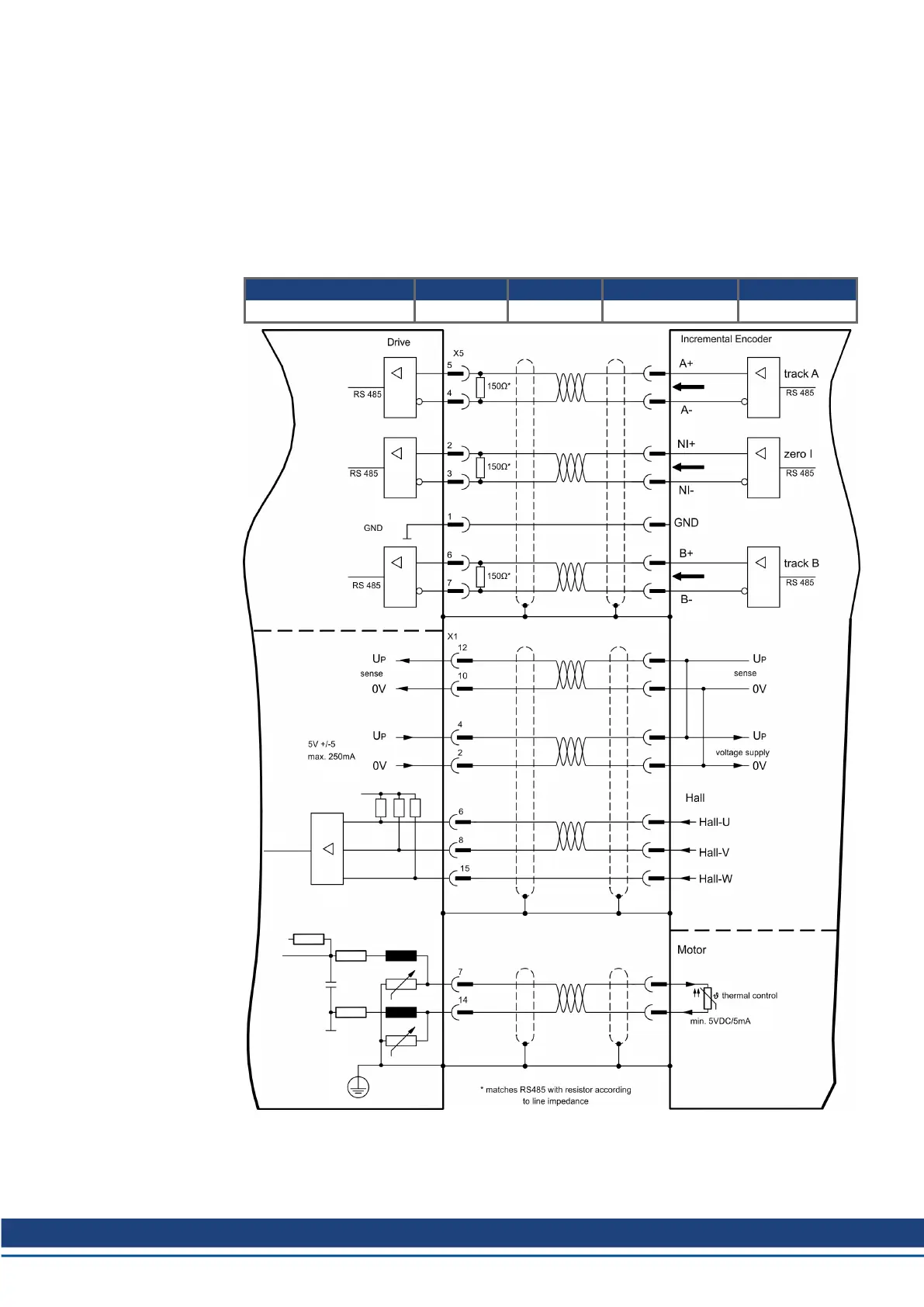

Wiring of a 5V incremental encoder (ROD, AquadB) with Hall sensors as a feedback unit
(primary, (➜ # 75)). For the commutation hall sensors are used and for the resolution an incre-
mental encoder.
The power supply for the encoder and thermal control in the motor is connected to X1 and
evaluated there.
If cable lengths of more than 25m are planned, please consult our customer service.
Frequency limit X5: 1.5 MHz, X1: 350 kHz
Type FBTYPE EXTPOS GEARMODE ENCMODE
AquadB 5V with Hall 18 - - 0
