5 Package
5.1 Package supplied
When you order a SERVOSTAR 640/670 series amplifier (order codes ð p.115), you will receive:
— SERVOSTAR 640/670
— mating connectors X3, X4
The mating SubD connectors are not part of the package!
— Assembly and Installation Instructions (product manual)
— Online documentation on CD-ROM
— Setup software DRIVE.EXE on CD-ROM
Accessories:
(must be ordered separately; description see accessories manual)
— Mains filter 3EF required
— Mains choke 3L required
— AC Servomotor (linear or rotary)
— motor cable as a cut-off length
— brake cable as a cut-off length
— feedback cable (pre-assembled) or
both feedback connectors separately, with feedback cable as length
— external brake resistor BAS, usually required
— communications cable to the PC (ð p.68) or Y-adapter (ð p.90) for parameter setting of up
to 6 servo amplifiers from one PC
— power cable, control cables, fieldbus cables (as lengths)
5.2 Nameplate

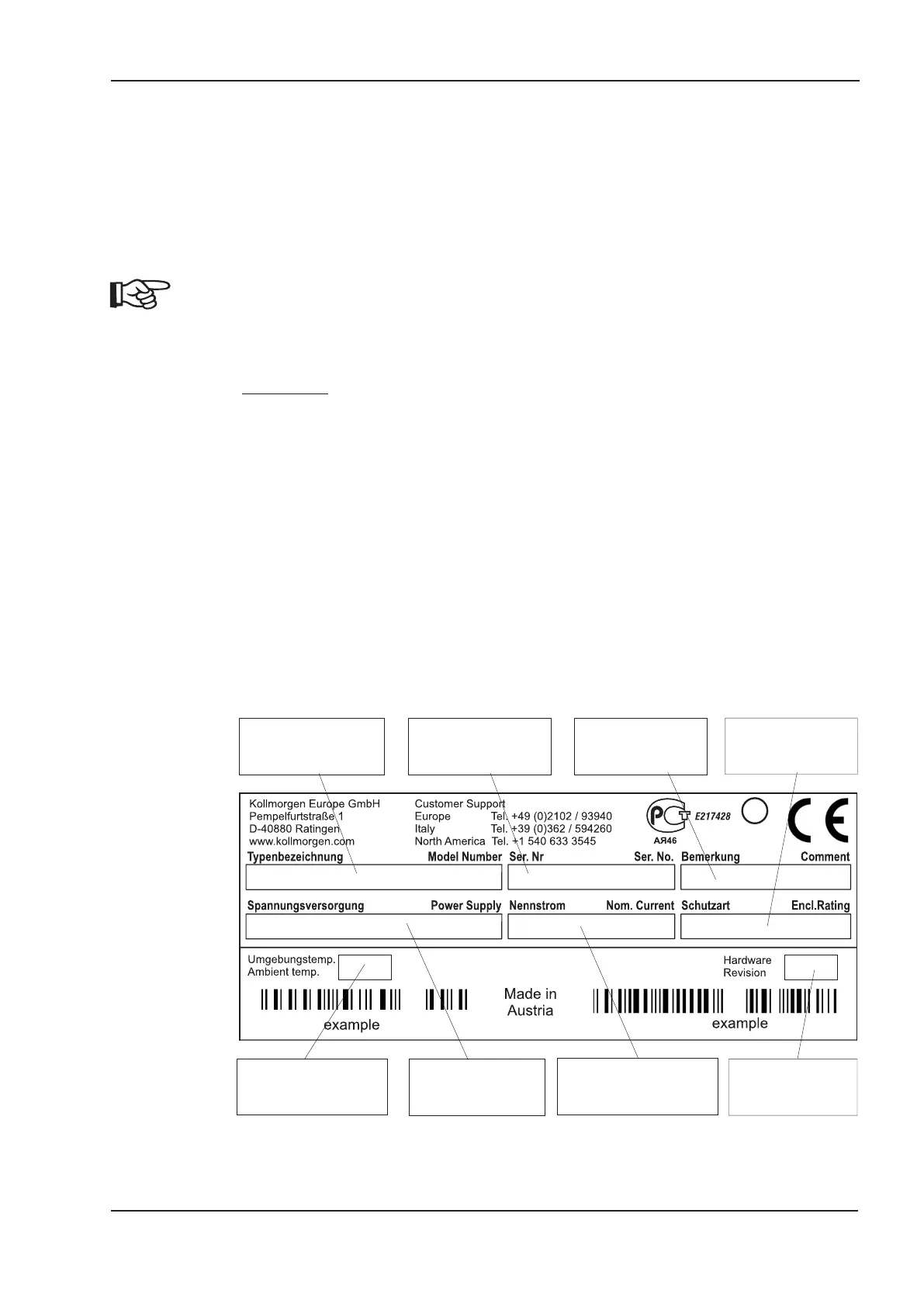

The nameplate depicted below is attached to the side of the servo amplifier.
The information described0 below is printed in the individual fields.
SERVOSTAR
®
640/670 Instructions Manual 17
Kollmorgen
12/2010 Package
1VD4
LISTED
IND. CONT. EQ.
CUS
U
L
®
CommentsSerial number
Servo amplifier type
max. ambient
temperature
Output current
in S1 operation
Hardware Revision
Enclosure Rating
Electrical supply
Installed load
