9.3.2 Connect
l
Connect the interface cable to a serial interface on your PC and to the serial interface X6 of
the servo amplifier. USB to serial converter can be used optionally.
l
Switch on the 24 V power supply for the servo amplifier.
l
Wait about 30 seconds, until the front display of the servo amplifier displays the current
classe (e.g. for 40 amps). If the power supply voltage is switched on, too, a leading
P is displayed (e.g. for Power, 40 amps).
If a fault code ( ) or a warning ( ) or a status message (./_ / E/S) appears
in the display, you will find the description on page 94ff. If there is fault, fix the
problem.
Double-Click the DRIVE.EXE icon on your Windows desktop to start the software.
You can work offline or online with .

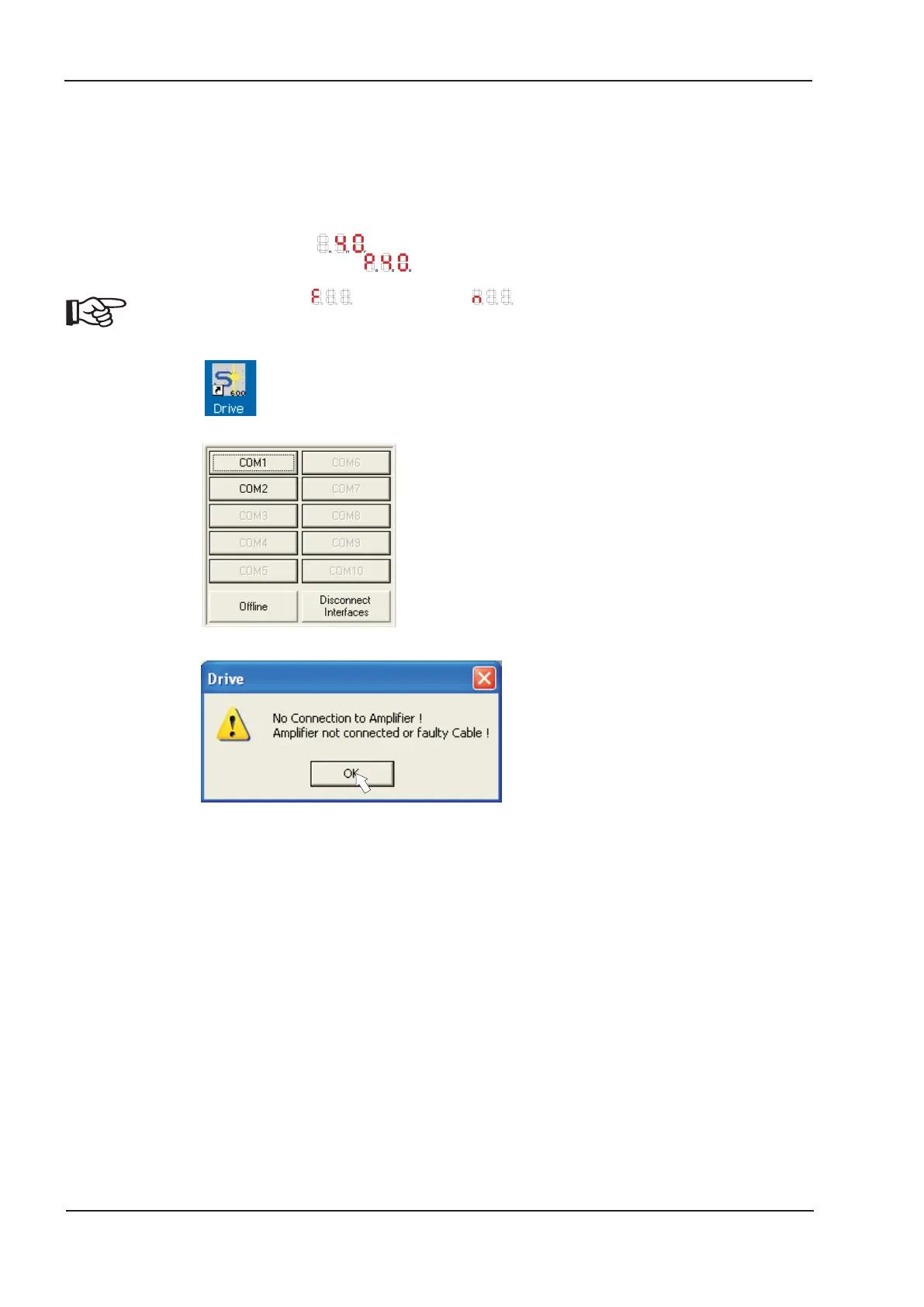

Work ONLINE now. Select the interface where the servo am
-
plifier is connected to.
The software tries to communicate with the
drive and to upload the parameters. If it's
not successful, you receive this error mes
-
sage.
Frequent causes:
- wrong interface chosen
- wrong connector chosen at the servo amplifier
- interface is used by another software
- 24 V auxiliary voltage for the servo amplifier not working
- interface cable broken or wrong wiring
Click OK to remove the error message. Detect and remove the error source. Restart the software.
