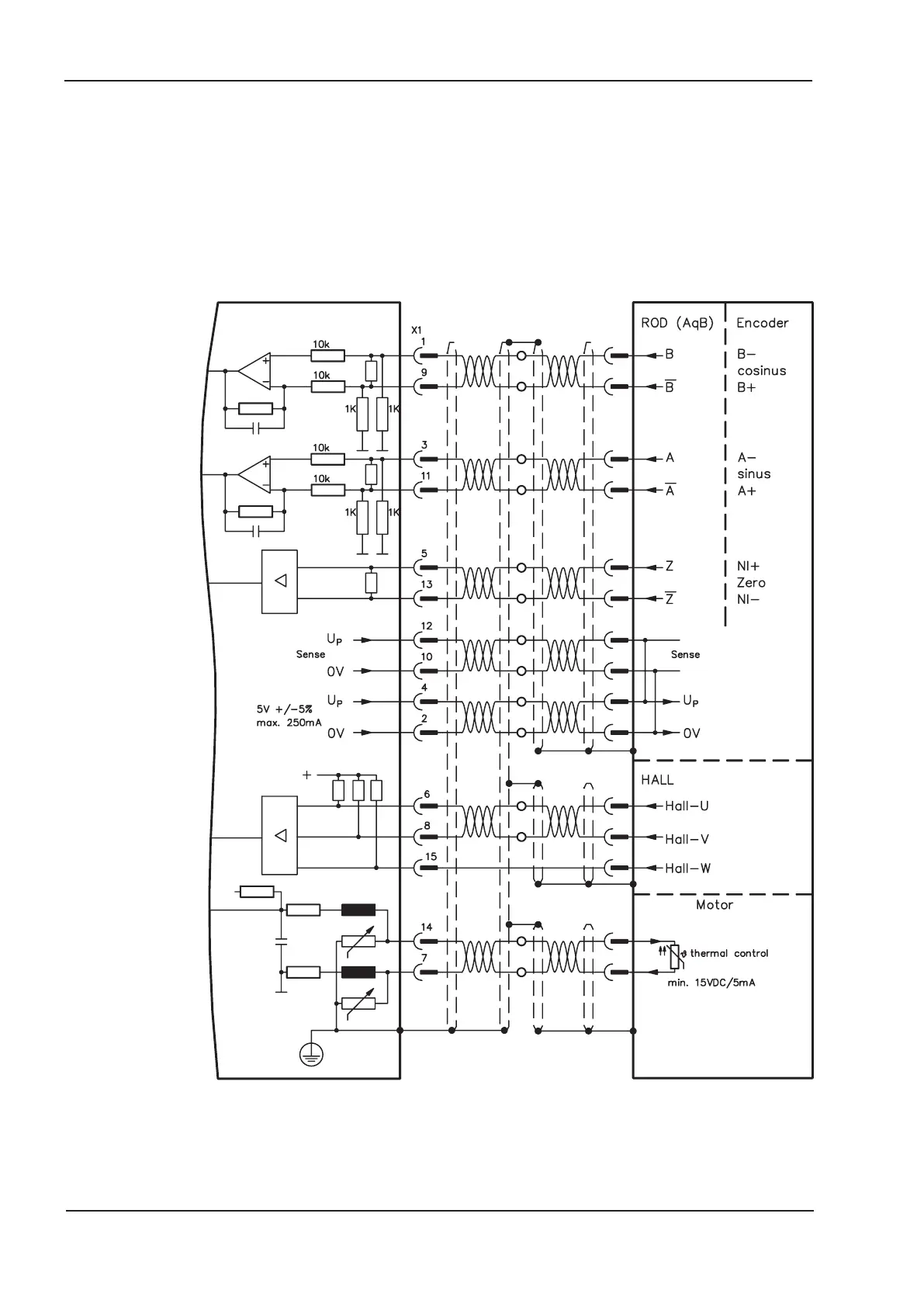

8.11.5 Incremental or sine encoder with hall sensors (X1)
Feedback devices (incremental or sine-cosine), which don't deliver an absolute information for com
-
mutation, can be used as complete feedback system combined with an additional Hall encoder. All
signals are connected to X1.
If cable lengths of more than 25 m are planned, please consult our customer service.
Frequency limit (A, B): 250 kHz
RS422 with Hall: FBTYPE 12
Encoder with Hall: FBTYPE 11
54 SERVOSTAR
®
640/670 Instructions Manual
Electrical Installation
12/2010 Kollmorgen
SERVOSTAR 640/670
