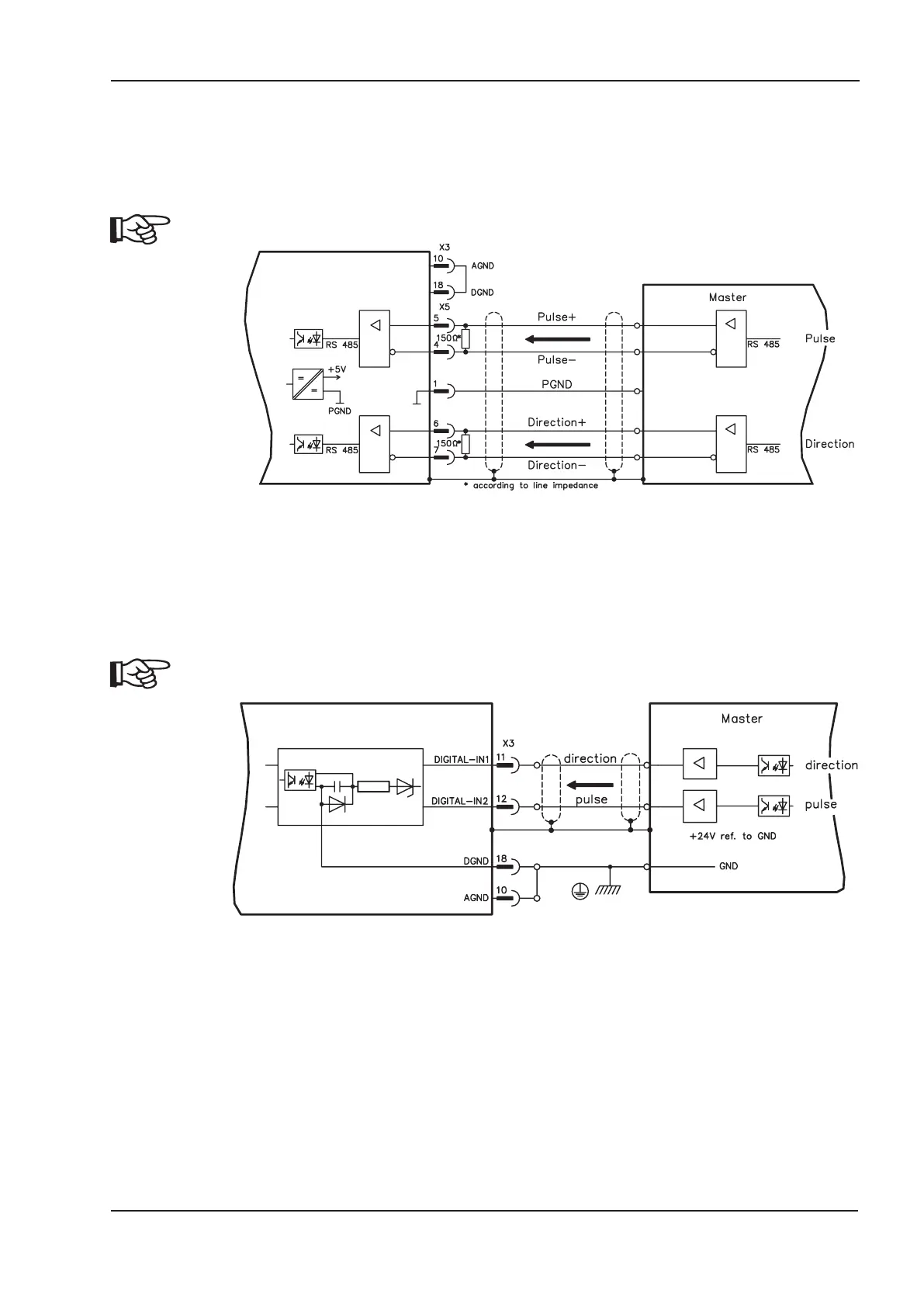

8.12.5.1 Step/Direction with 5 V signal level (X5)

This interface can be used to connect the servo amplifier to a stepper-motor controller with 5 V

signal level. The connector X5 must be used.

Frequency limit: 1.5 MHz

AGND and DGND (connector X3) must be joined together !

8.12.5.2 Step/Direction with 24 V signal level (X3)

This interface can be used to connect the servo amplifier to a stepper-motor controller with 24 V

signal level. The digital inputs DIGITAL-IN 1 and 2 at connector X3 must be used.

Frequency limit: 250 kHz

AGND and DGND (connector X3) must be joined together!

SERVOSTAR

640/670 Instructions Manual 61

Kollmorgen

12/2010 Electrical Installation
