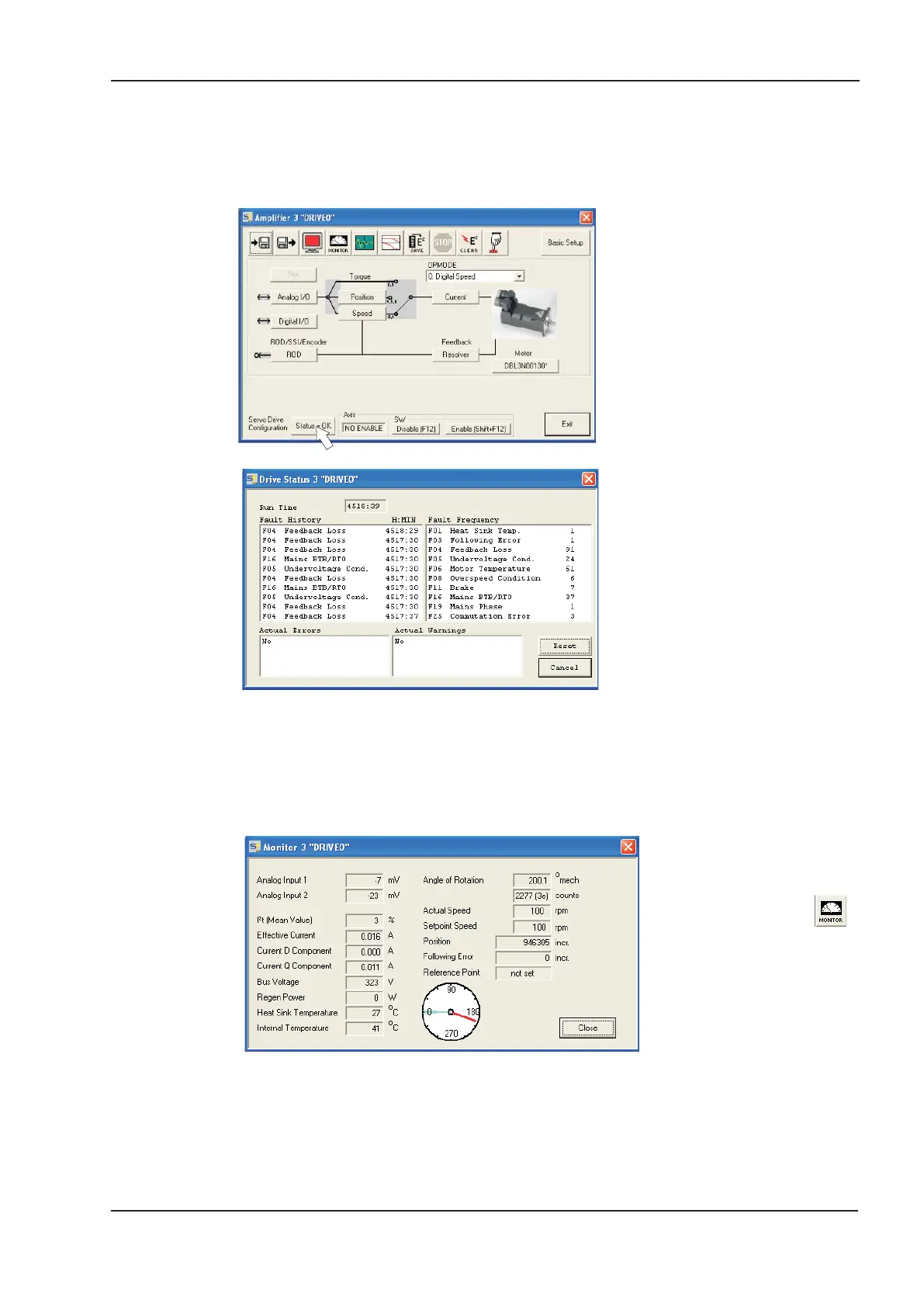

9.3.9 Status
Actual warnings and errors are listed on the Status screen, which can be accessed on the start
screen by clicking the "Status" button. This button monitors the current status of the amplifier and
can appear with different text.
The Reset button can be used to clear some actual error messages. A description of errors/war-
nings can be found on page 94.
Now you have setup and tested the basic functions of the drive successfully.
9.3.10 Monitor
Click the icon "Monitor"
The Monitor screen shows all
important electrical and me
-
chanical actual values
9.3.11 Additional Setup Parameters
Detailed information on all setup functions can be found in the Online Help systemand and the inte
-
grated command reference.
SERVOSTAR
®
640/670 Instructions Manual 89
Kollmorgen
12/2010 Setup
