8.11.6 ComCoder (X1)

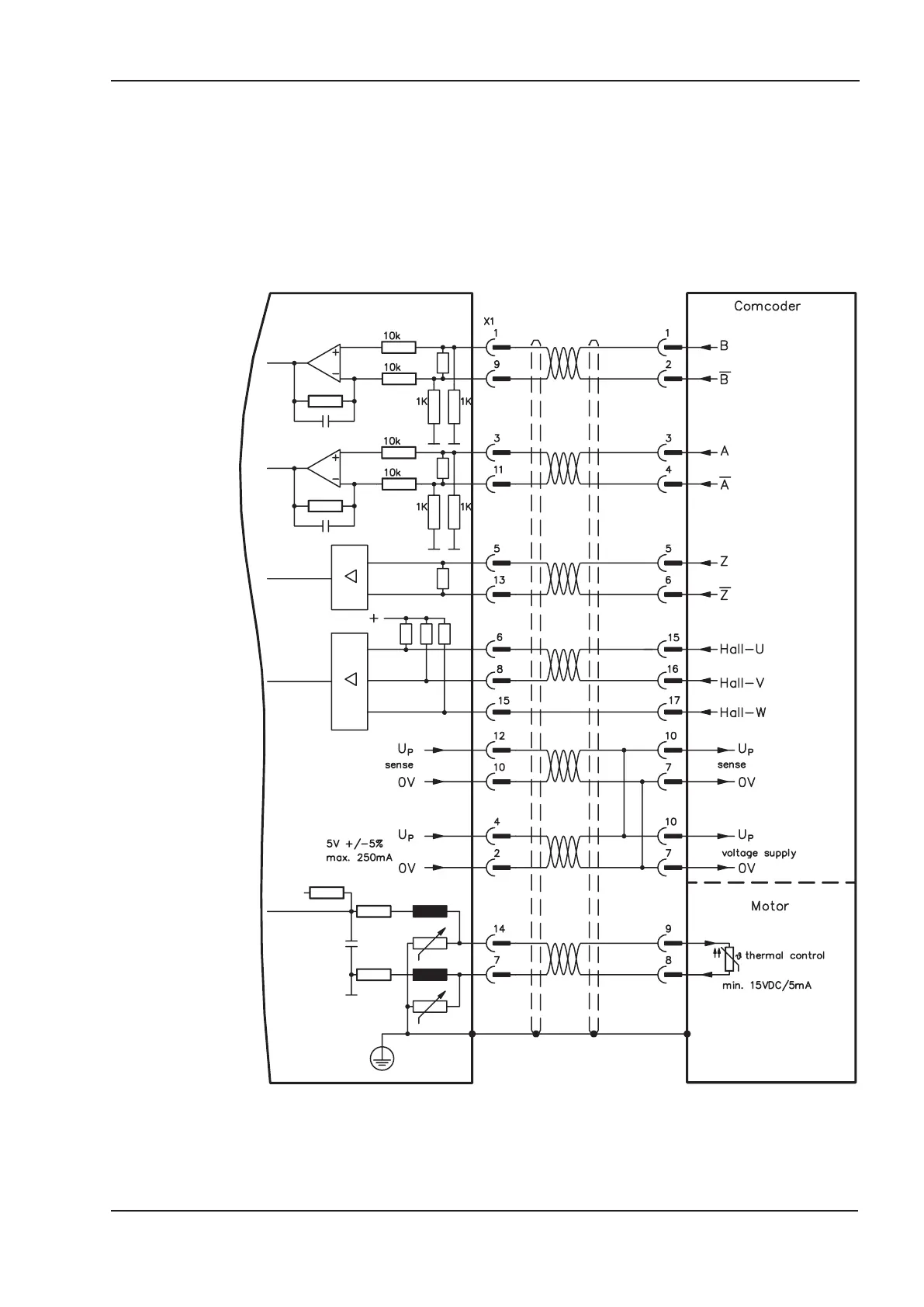

Connection of a ComCoder as feedback unit. For the commutation hall sensors are used and for
the resolution an incremental encoder.
The thermal control in the motor is connected via the ComCoder cable to X1 and evaluated there.
If cable lengths of more than 25 m are planned, please consult our customer service.
Frequency limit (A, B): 250 kHz
RS422 with Hall: FBTYPE 12
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
SERVOSTAR
®
640/670 Instructions Manual 55
Kollmorgen
12/2010 Electrical Installation
SERVOSTAR 640/670
SubD15
round, 17 pin
