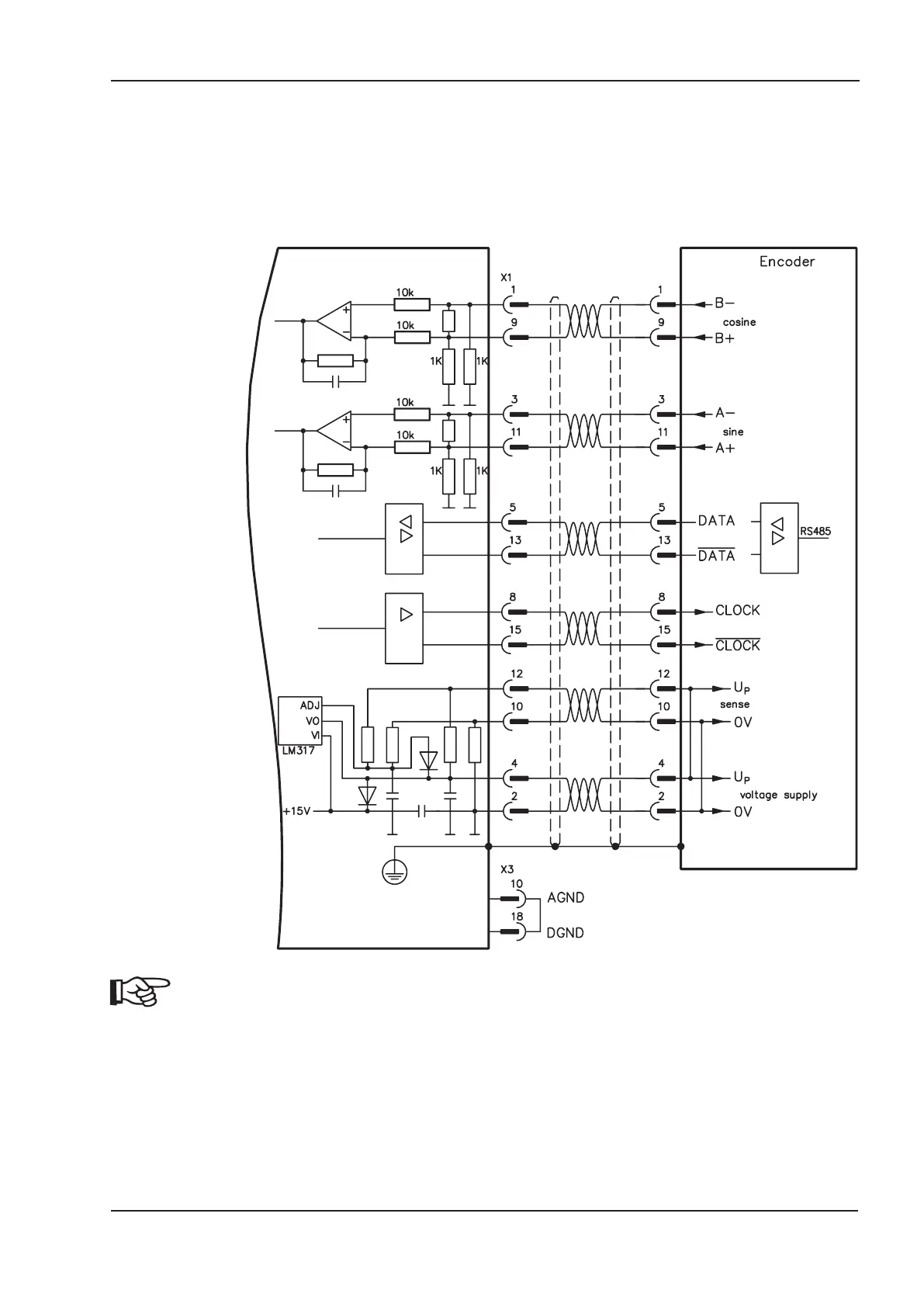

8.12.3 Connection to a sine-cosine encoder master (X1)
You can operate the SERVOSTAR 640/670 as a slave, mastered by a sine-cosine encoder
(master-slave operation). The connector X1 must be used.
If cable lengths of more than 25 m are planned, please consult our customer service.
Frequency limit: 250 kHz
AGND and DGND (connector X3) must be joined together!
