8.11.1 Resolver (X2)

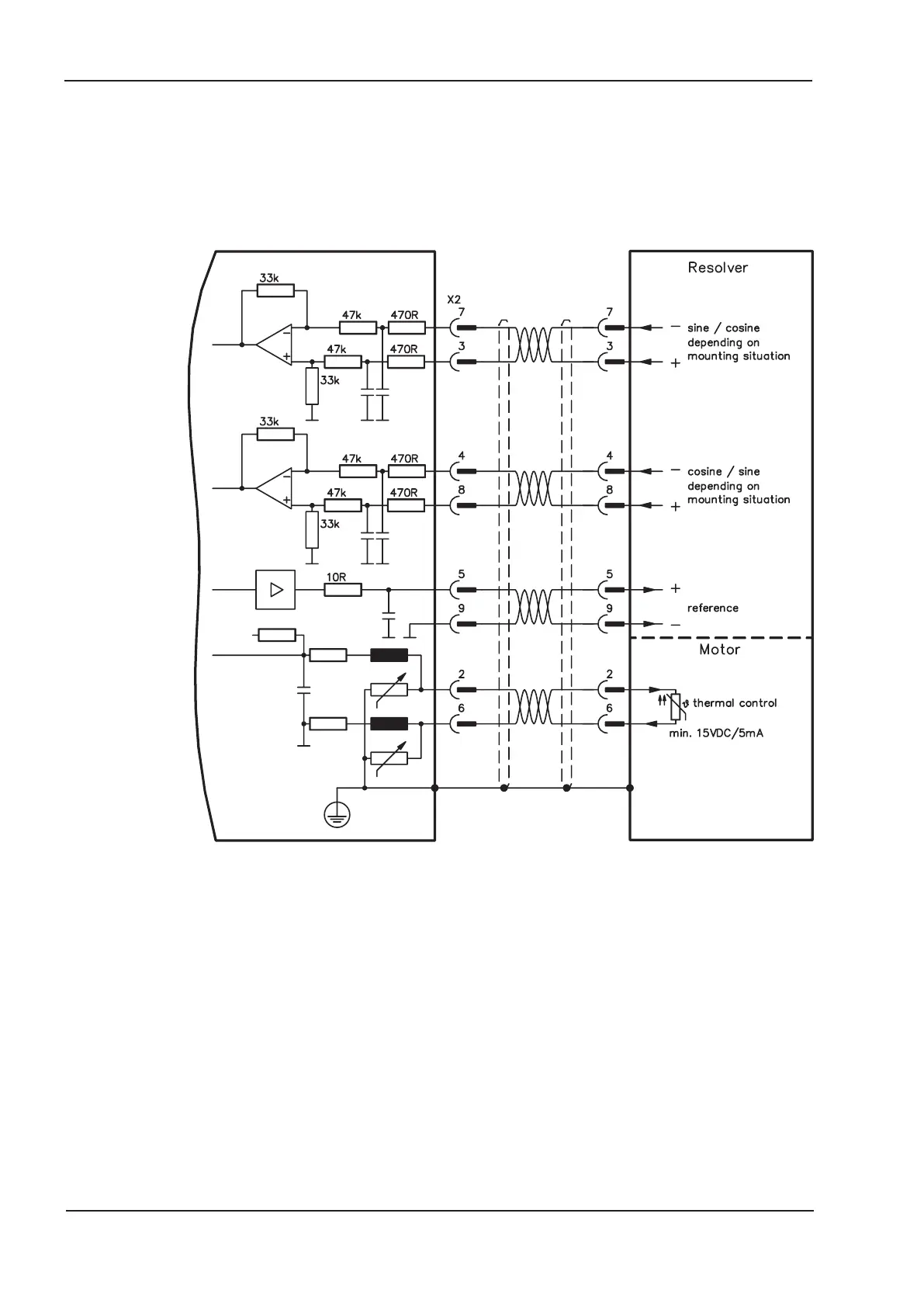

Connection of a Resolver (2 to 36-poles) as a feedback system. The thermal control in the motor is
connected via the resolver cable to the SERVOSTAR and evaluated there.
If cable lengths of more than 100 m are planned, please contact our customer service .
FBTYPE 0, 3
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
50 SERVOSTAR
®
640/670 Instructions Manual
Electrical Installation
12/2010 Kollmorgen
SERVOSTAR 640/670
