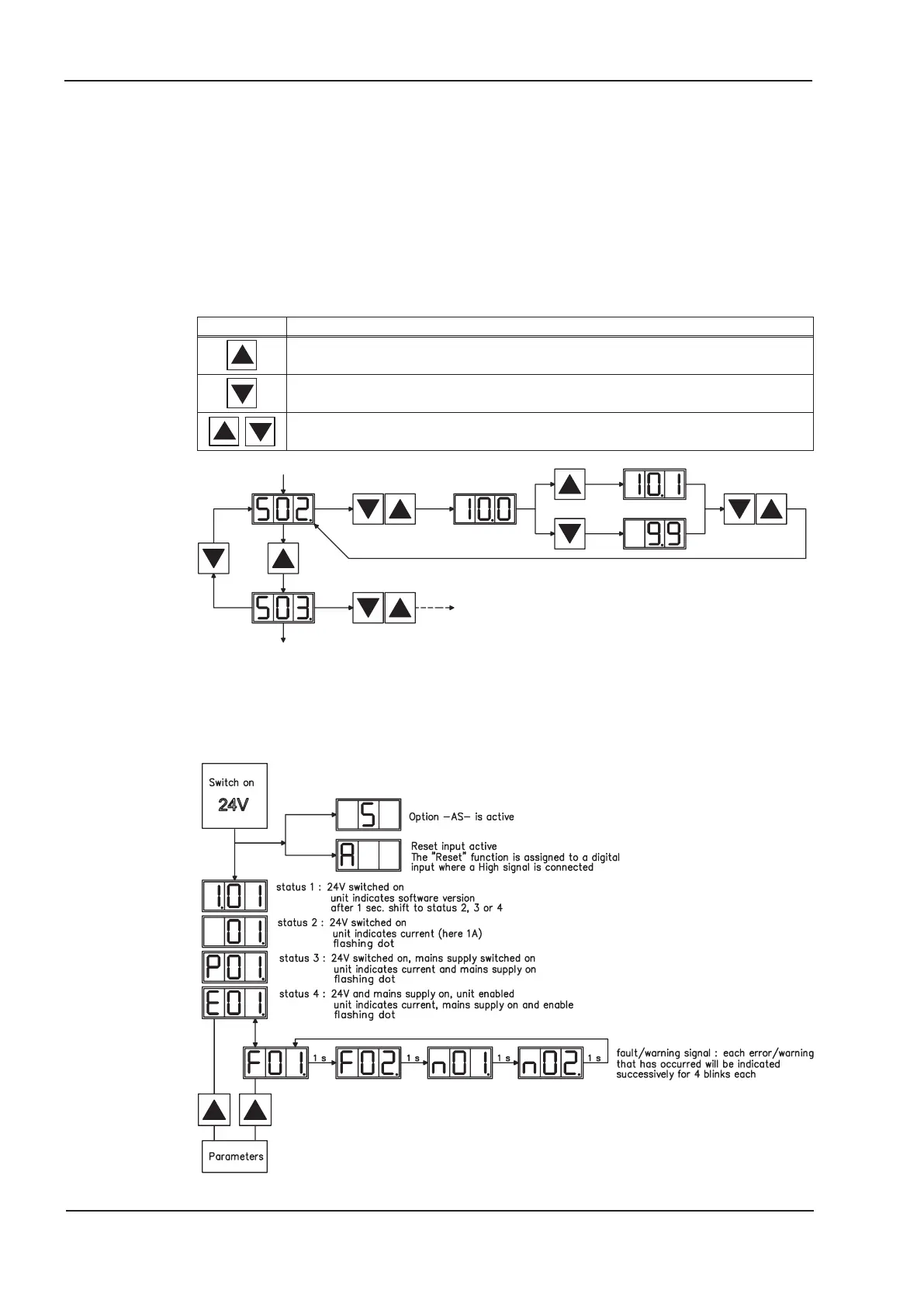

9.5 Key operation / LED display
In this chapter the two possible operation menus and the use of the keys in the front panel are
shown. Normally, the SERVOSTAR 640/670 only places the standard menu at your disposal. If you
want to attend the amplifier via the detailed menu, you must keep the right key pressed while swit
-
ching on the 24V-supply.
9.5.1 Key operation
The two keys can be used to perform the following functions:
Key symbol Functions
press once : go up one menu item, increase number by one
press twice in rapid succession : increase number by ten
press once : go down one menu item, decrease number by one
press twice in rapid succession : decrease number by ten
press and hold right key, then press left key as well :
enters a number, return function
9.5.2 Status display
92 SERVOSTAR
®
640/670 Instructions Manual
Setup
12/2010 Kollmorgen
