10 Expansion Cards
Information about availability and order numbers can be found on p. 115

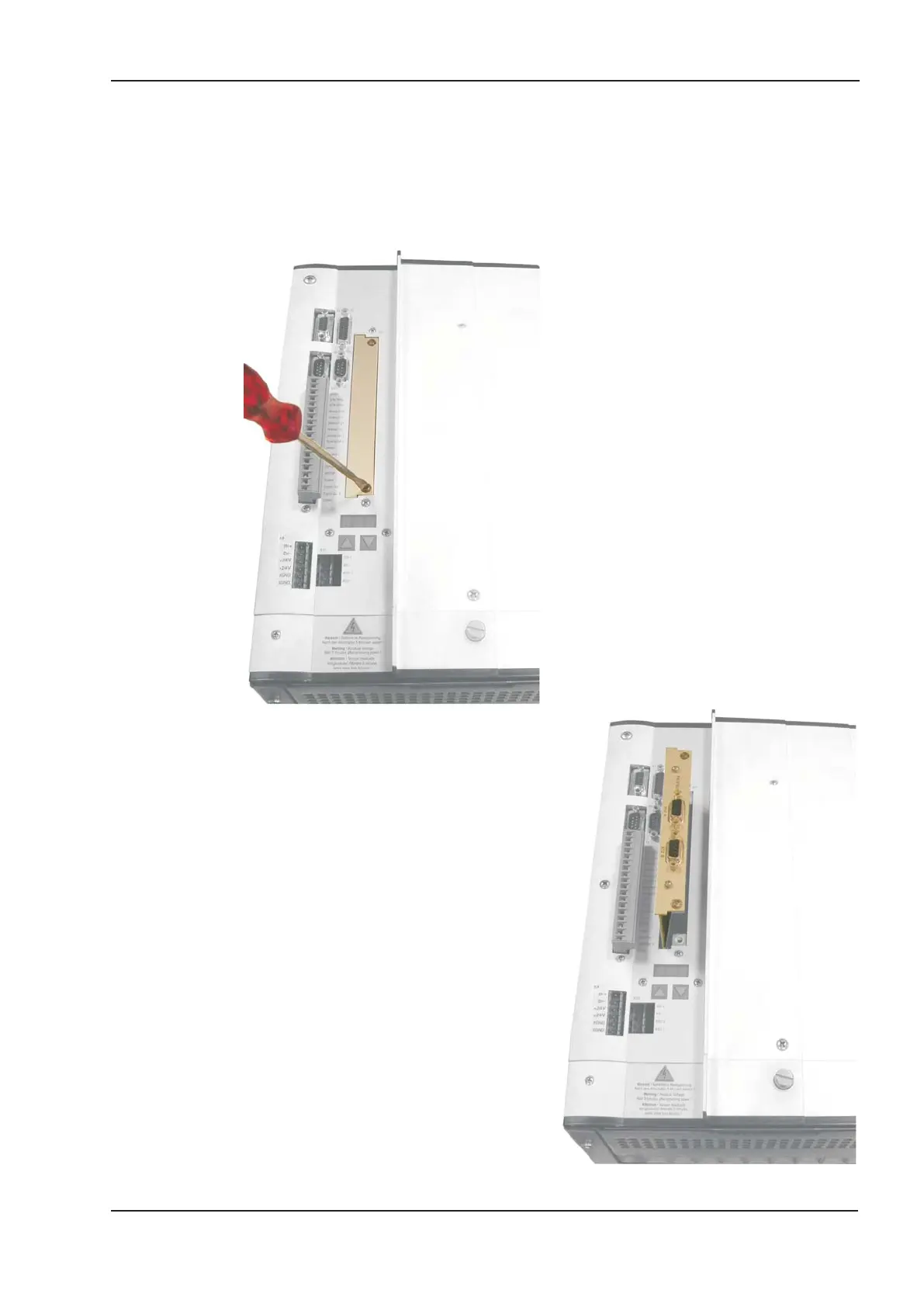

10.1 Guide to installation of expansion cards
l
Use a suitable screwdriver to unscrew
the cover of the option slot.
l
Take care that no small items (such
as screws) fall into the open option
slot.
l
Push the expansion card carefully
into the provided guide rails of the
main slot, without twisting it.
l
Press the expansion card firmly into
the slot, until the front cover touches
the fixing lugs. This ensures that the
connectors make good contact.
l
Screw the screws on the front cover
into the threads in the fixing lugs.
SERVOSTAR
®
640/670 Instructions Manual 97
Kollmorgen
12/2010 Expansion Cards
